7.3. Packaging Specifications
This chapter describes only the key parameters and process of packaging. All figures below are for
reference only. The appearance and structure of the packaging materials are subject to the actual
delivery.
The module adopts carrier tape packaging and details are as follow:
7.3.1. Carrier Tape
Dimension details are as follow:

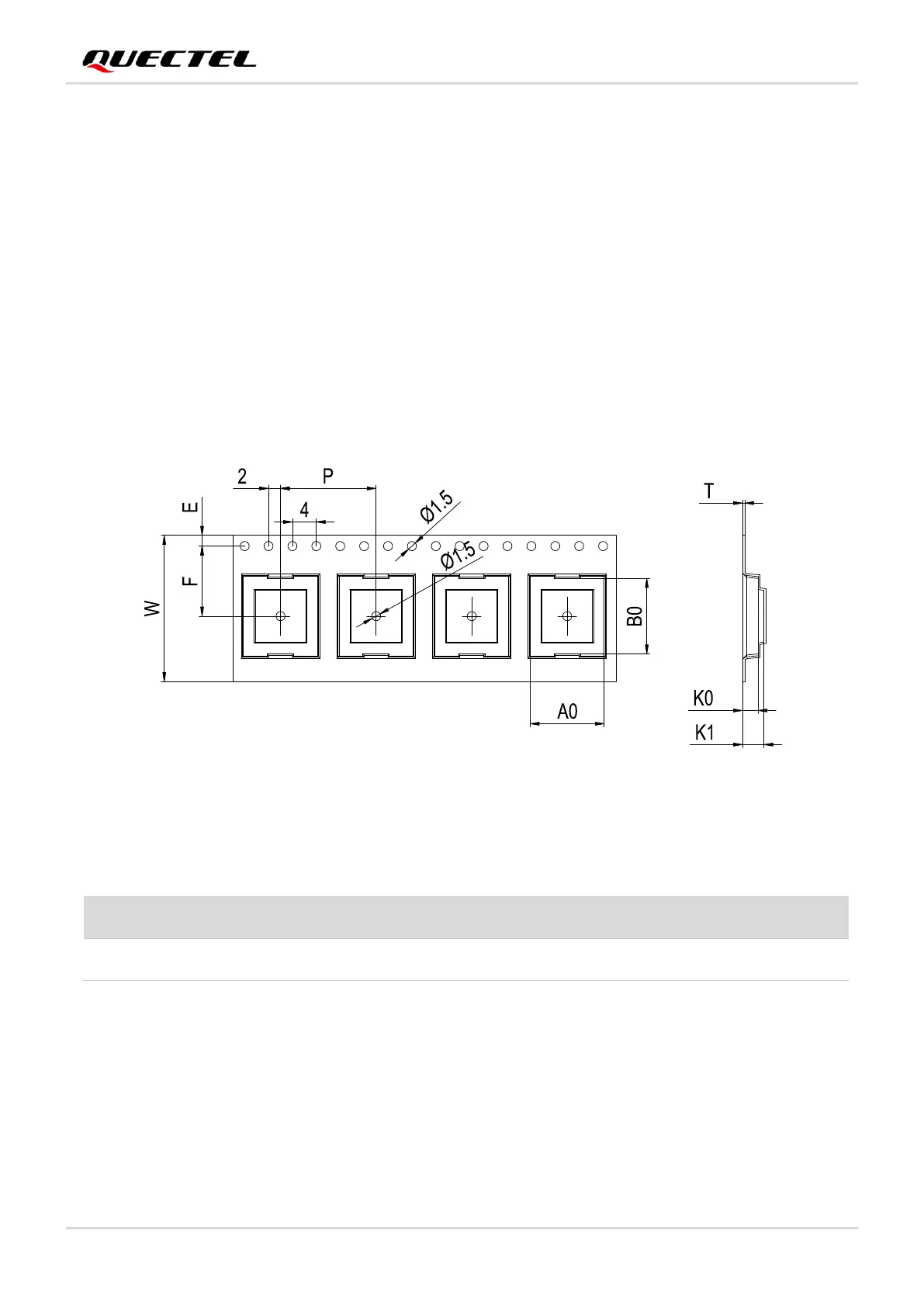

Figure 19: Carrier Tape Dimension Drawing
Table 14: Carrier Tape Dimension Table (Unit: mm)
W
P
T
A0
B0
K0
K1
F
E
24
20
0.4
13.4
13.4
2.95
5.6
11.5
1.75
