7.3.2. Plastic Reel

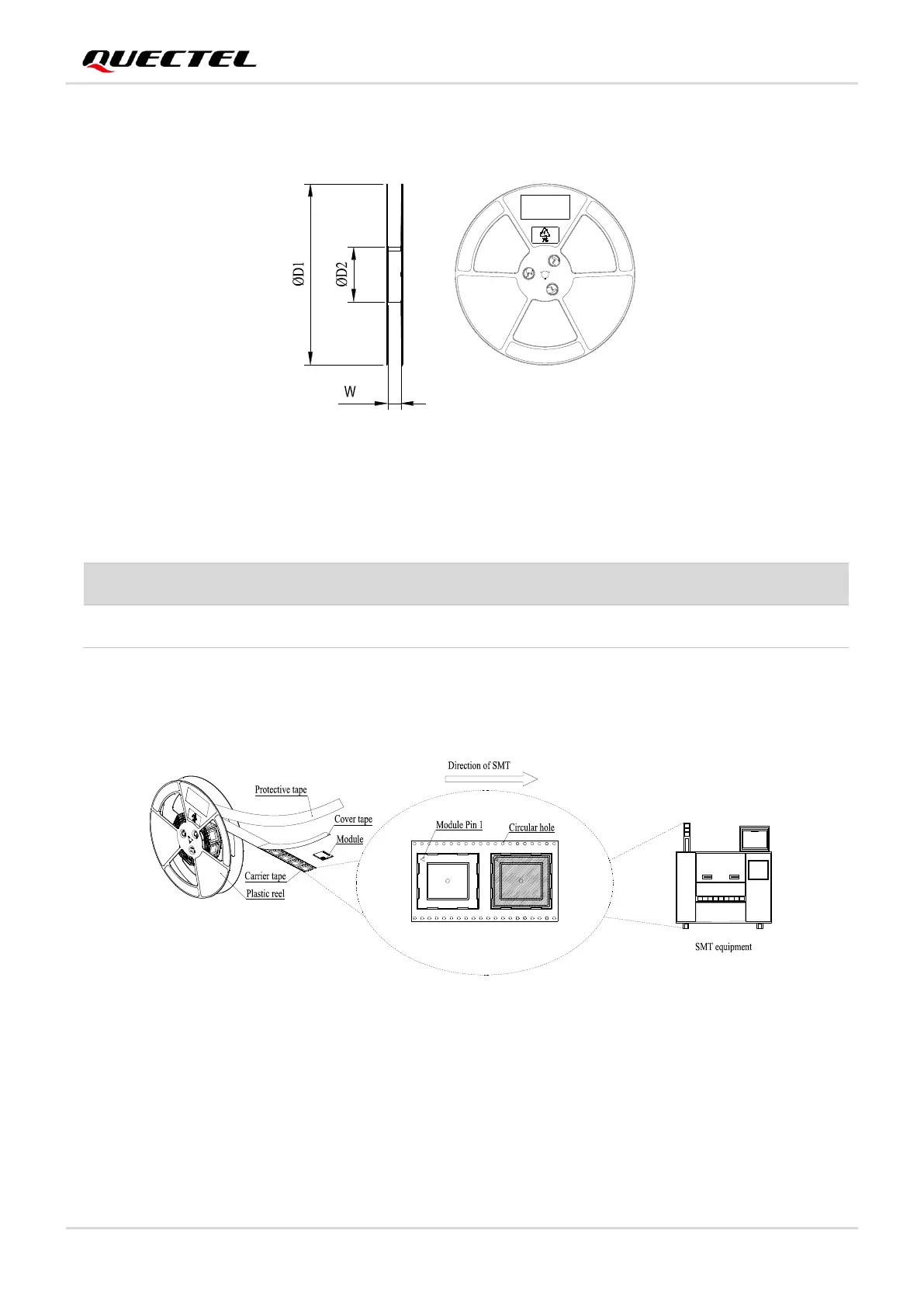

Figure 20: Plastic Reel Dimension Drawing
Table 15: Plastic Reel Dimension Table (Unit: mm)
7.3.3. Mounting Direction
Figure 21: Mounting Direction
øD1
øD2
W
330
100
24.5
