7.3.4. Packaging Process

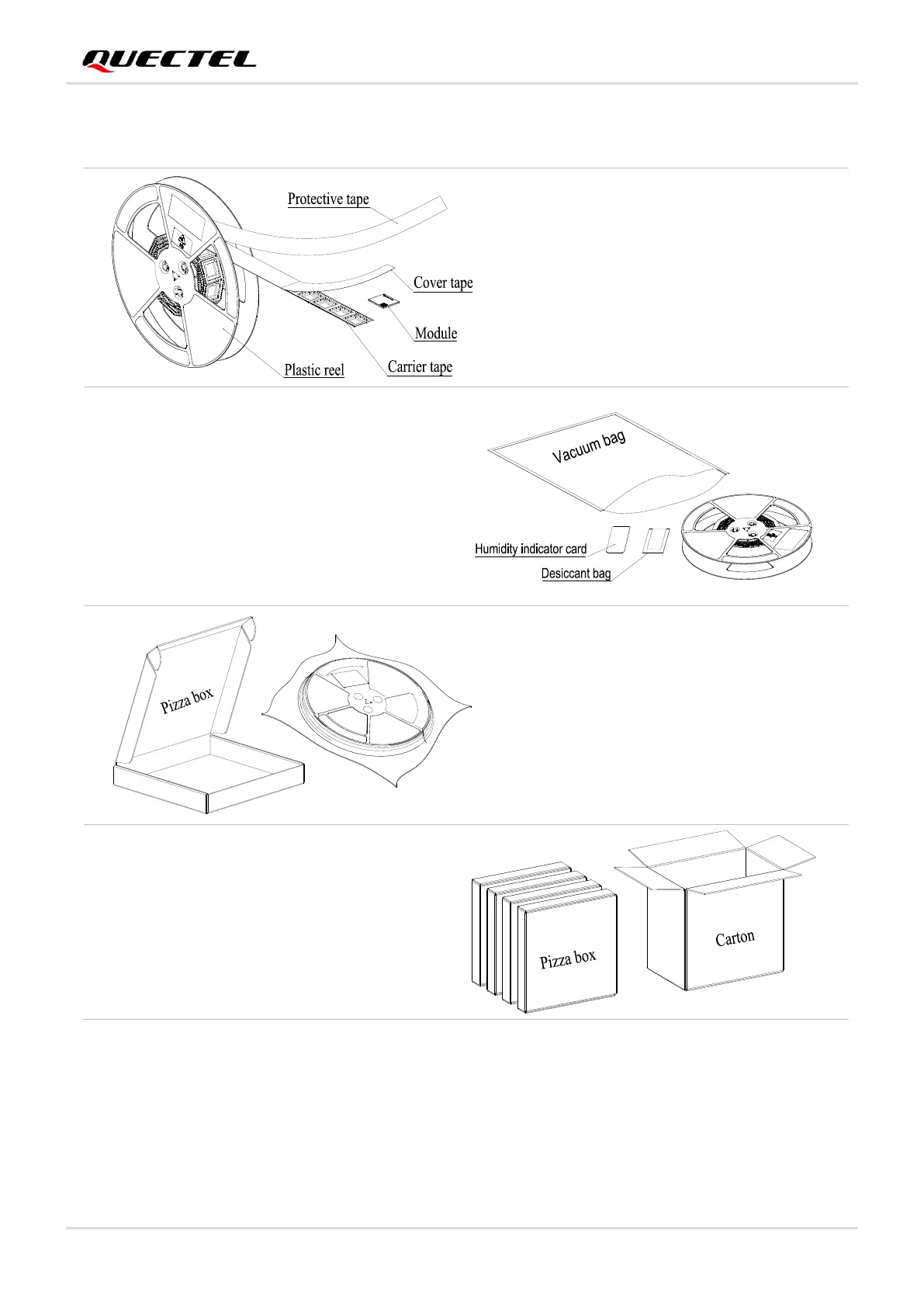

Figure 22: Packaging Process
Place the module into the carrier tape and use
the cover tape to cover it; then wind the
heat-sealed carrier tape to the plastic reel and
use the protective tape for protection. 1 plastic
reel can load 500 modules.
Place the packaged plastic reel, 1 humidity
indicator card and 1 desiccant bag into a
vacuum bag, vacuumize it.
Place the vacuum-packed plastic reel into the
pizza box.
Put 4 packaged pizza boxes into 1 carton box
and seal it. 1 carton box can pack 2000
modules.
