Quectel LC29H User Manual

GNSS Module Series
LC29H(AA,BA,CA,DA,EA)_EVB_User_Guide 17 / 24
once the module is connected. For more information, see document [2].

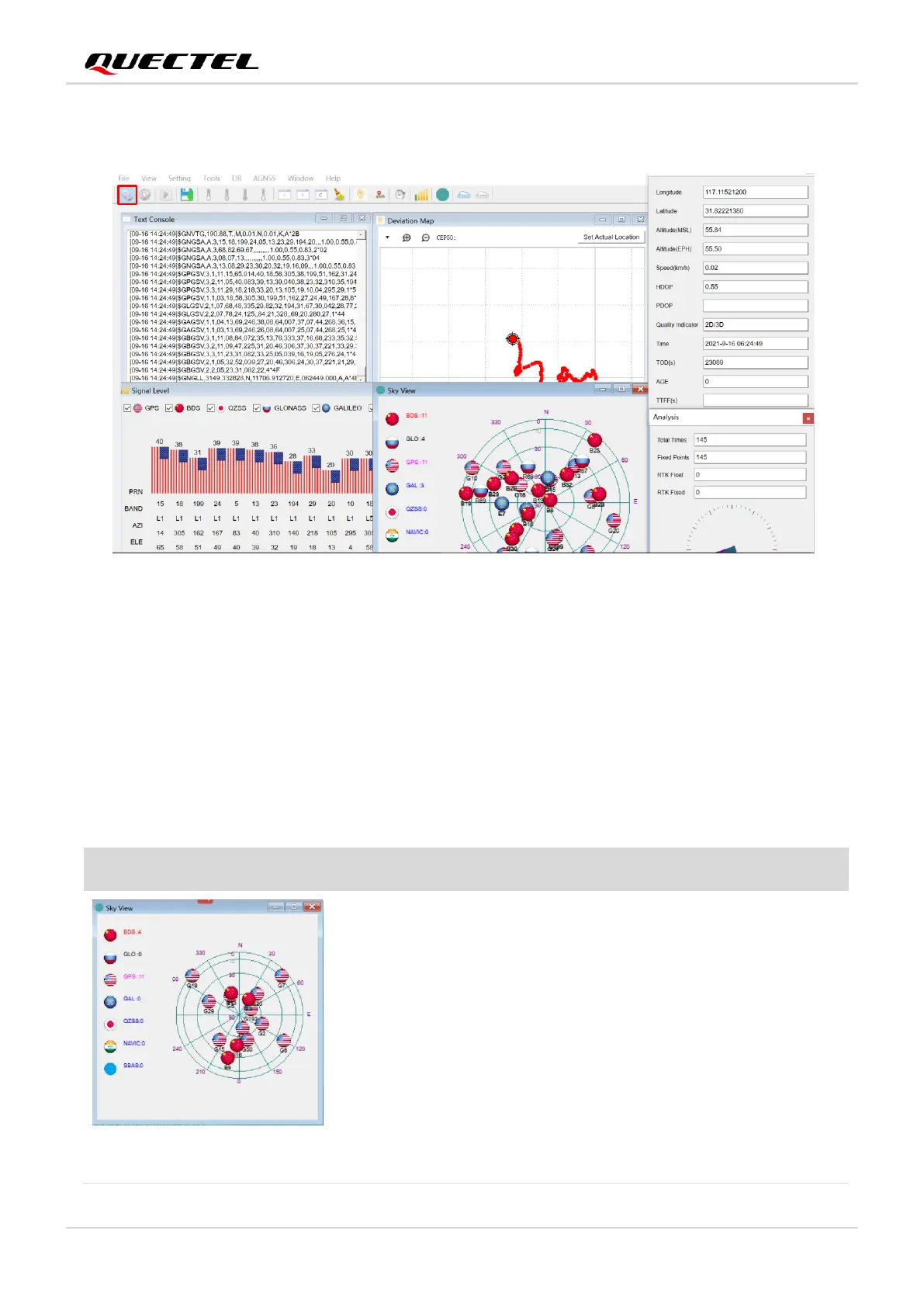

Figure 8: QGNSS Interface (Connected)
5.1.1. Interface Explanation
You can view GNSS information, such as C/N
0
message, time, position, speed, and precision in the
QGNSS interface. To find out more about these parameters, see the following table.
Table 4: QGNSS Interface Explanation
Icon
Explanation
This sky view interface shows the position of the satellites in use.
1) The left column icons show the satellites in use and their
numbers.
⚫ BDS (BeiDou): 4
⚫ GLO (GLONASS): 0
⚫ GPS: 11
⚫ GAL (Galileo): 0
⚫ QZSS: 0
⚫ NAVIC (IRNSS): 0
⚫ SBAS: 0
2) The grid map on the right shows the position of the satellites
