Quectel LC29H - Page 23

GNSS Module Series
LC29H(AA,BA,CA,DA,EA)_EVB_User_Guide 22 / 24


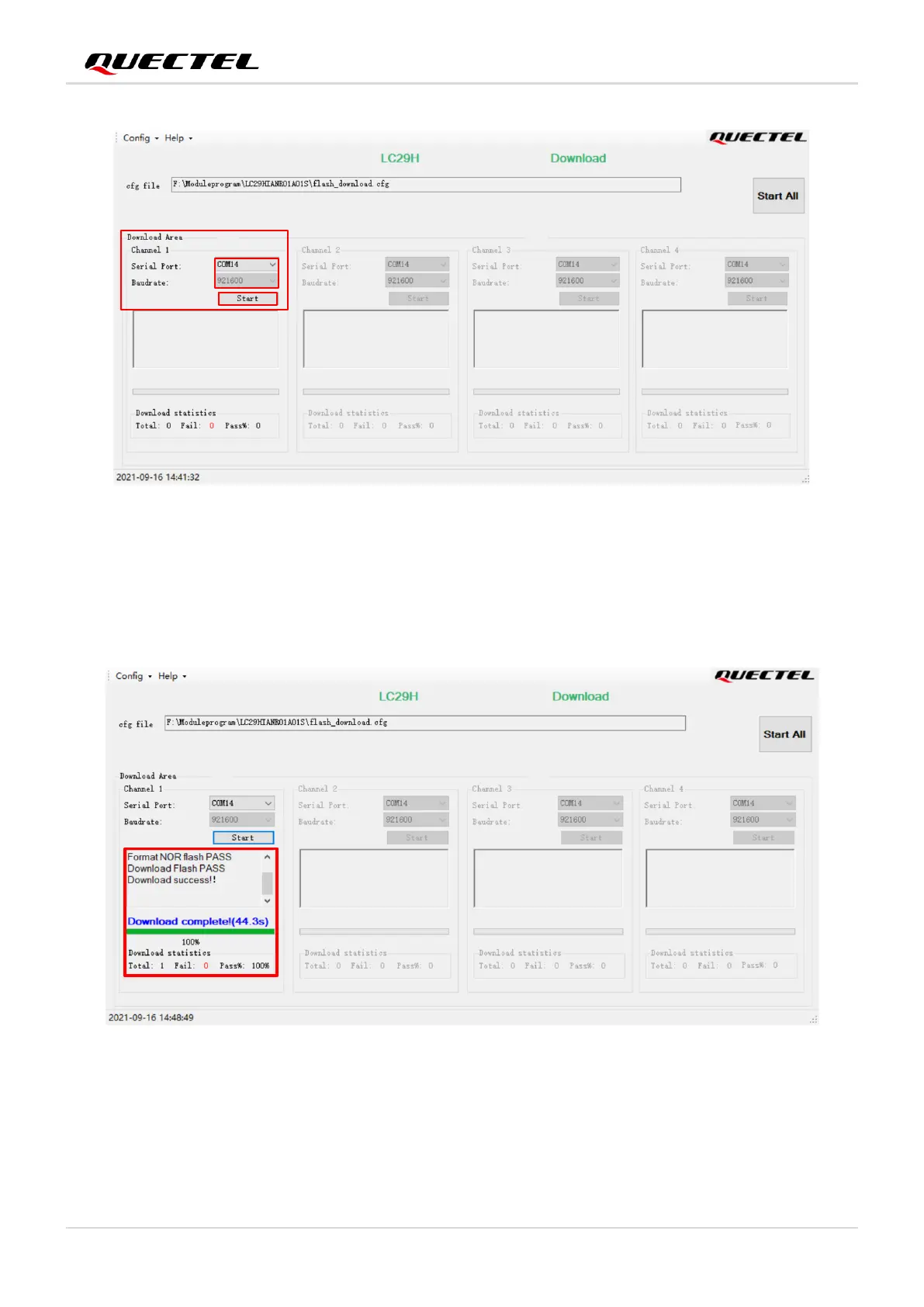

Figure 12: Firmware Upgrade – Step 4
Step 5: When the firmware upgrade is successful, the QGPSFlashTool green progress bar on the
screen will indicate “100%”, as shown in the figure below.
Figure 13: Successful Firmware Upgrade
