LTE_OPEN_EVB_User_Guide 25 / 62

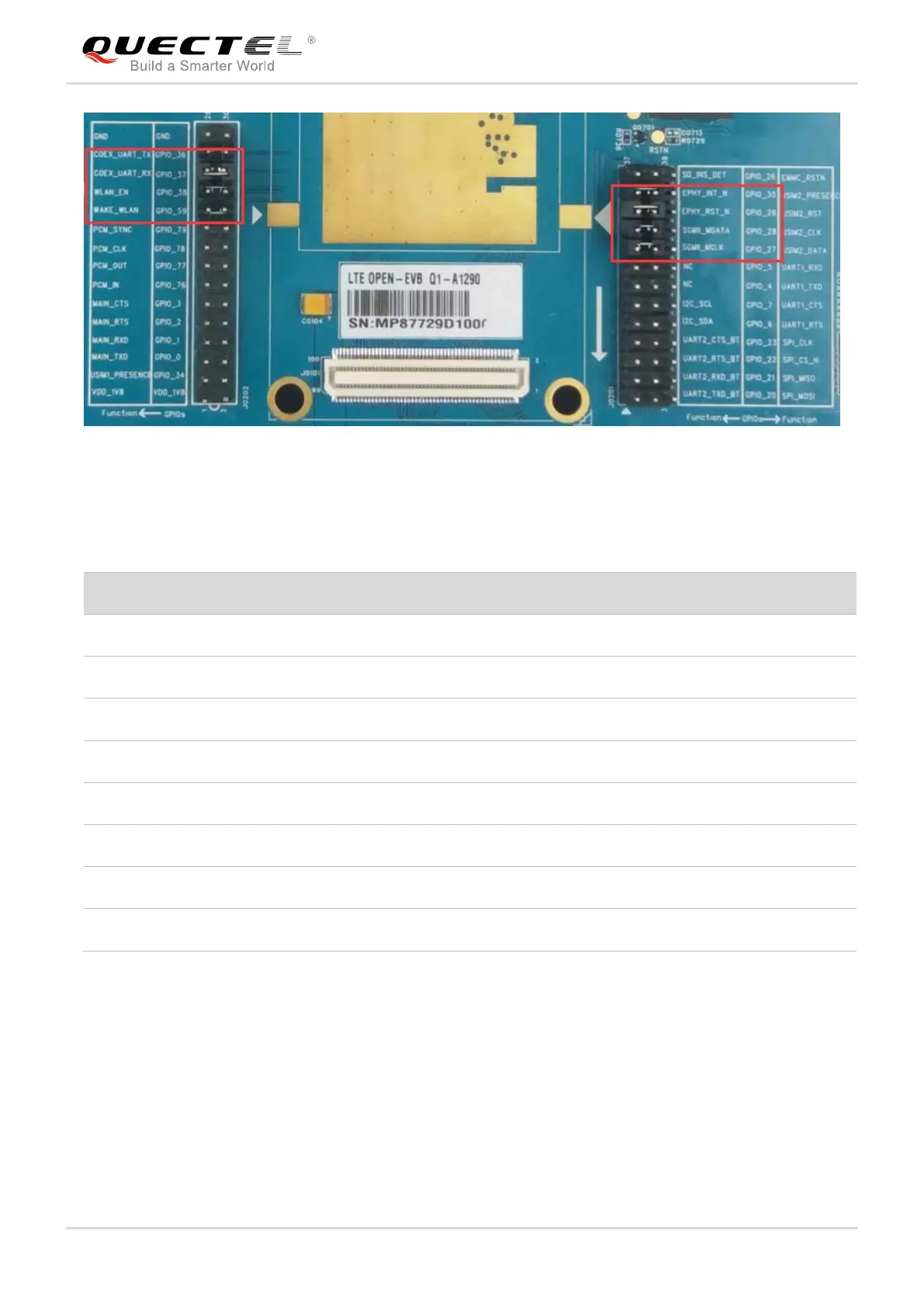

Figure 12: Wi-Fi & Ethernet Function GPIO Configuration
Table 6: Wi-Fi & Ethernet Function GPIO Configuration
4.4. USB Interface (J0601)
Quectel LTE-QuecOpen modules provide a USB interface which complies with USB 2.0 specifications.
USB 2.0 supports high-speed (480Mbps), full-speed (12Mbps) and low-speed (1.5Mbps) modes. The
interface is used for AT command communication, data transmission, firmware upgrade and GNSS NEMA
output.
Pin No.
Pin Name
Operation
Pin No.
Pin Name
Pin 27 (J0202)
COEX_UART_TX
Shorted to
Pin 28 (J0202)
GPIO_36
Pin 25 (J0202)
COEX_UART_RX
Shorted to
Pin 26 (J0202)
GPIO_37
Pin 23 (J0202)
WLAN_EN
Shorted to
Pin 24 (J0202)
GPIO_38
Pin21 (J0202)
WAKE_WLAN
Shorted to
Pin 22 (J0202)
GPIO_59
Pin 34 (J0201)
EPHY_INT_N
Shorted to
Pin 35 (J0201)
GPIO_30
Pin 31 (J0201)
EPHY_RST_N
Shorted to
Pin 32 (J0201)
GPIO_29
Pin 28 (J0201)
SGMII_MDATA
Shorted to
Pin 29 (J0201)
GPIO_28
Pin 25 (J0201)
SGMII_CLK
Shorted to
Pin 26 (J0201)
GPIO_27
