GSM/GPRS Module Series
M66 Hardware Design
M66_Hardware_Design Confidential / Released 66 / 80
6 Mechanical Dimensions
This chapter describes the mechanical dimensions of the module.
6.1. Mechanical Dimensions of Module

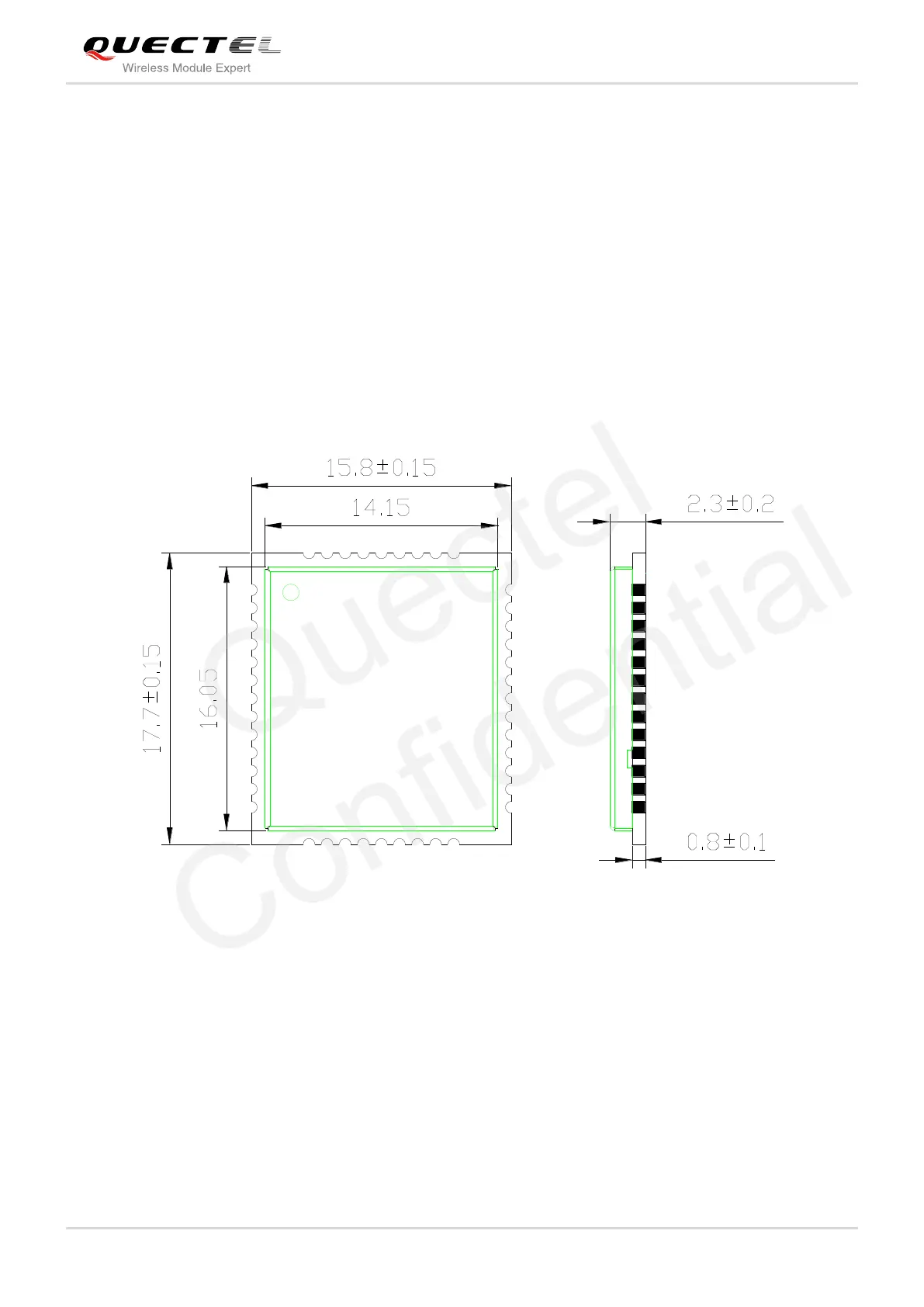

Figure 43: M66 Module Top and Side Dimensions (Unit: mm)
