6.2. Recommended Footprint
1
14
23
36

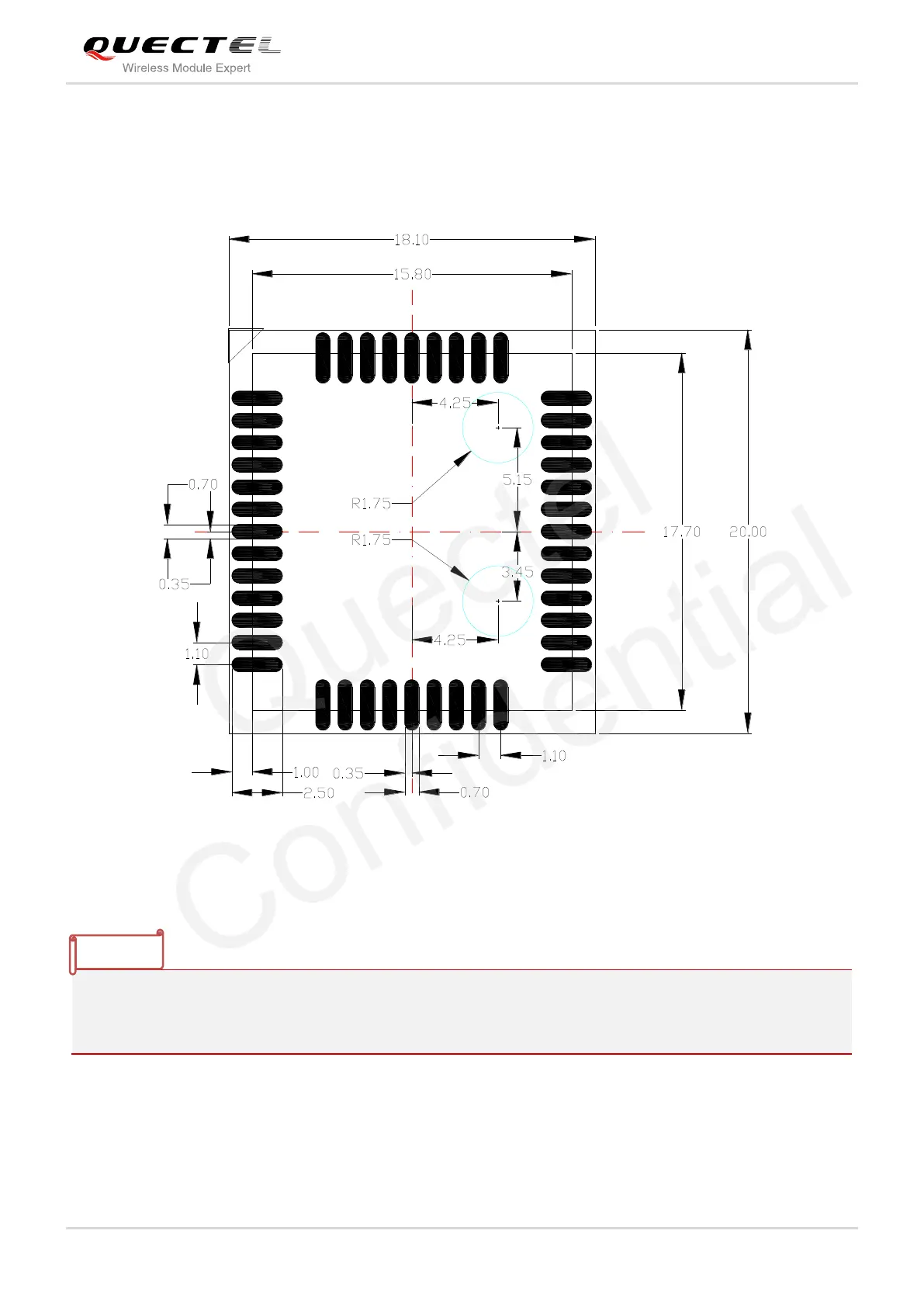

Figure 45: Recommended Footprint (Unit: mm)
1. The module should be kept about 3mm away from other components in the host PCB.
2. The circular test points with a radius of 1.75mm in the above recommended footprint should be
treated as keepout areas. (“keepout” means do not pour copper on the mother board).
