Quectel M66

GSM/GPRS Module Series
M66 Hardware Design
M66_Hardware_Design Confidential / Released 72 / 80
7.3.1. Tape and Reel Packaging
The reel is 330mm in diameter and each reel contains 250 modules.

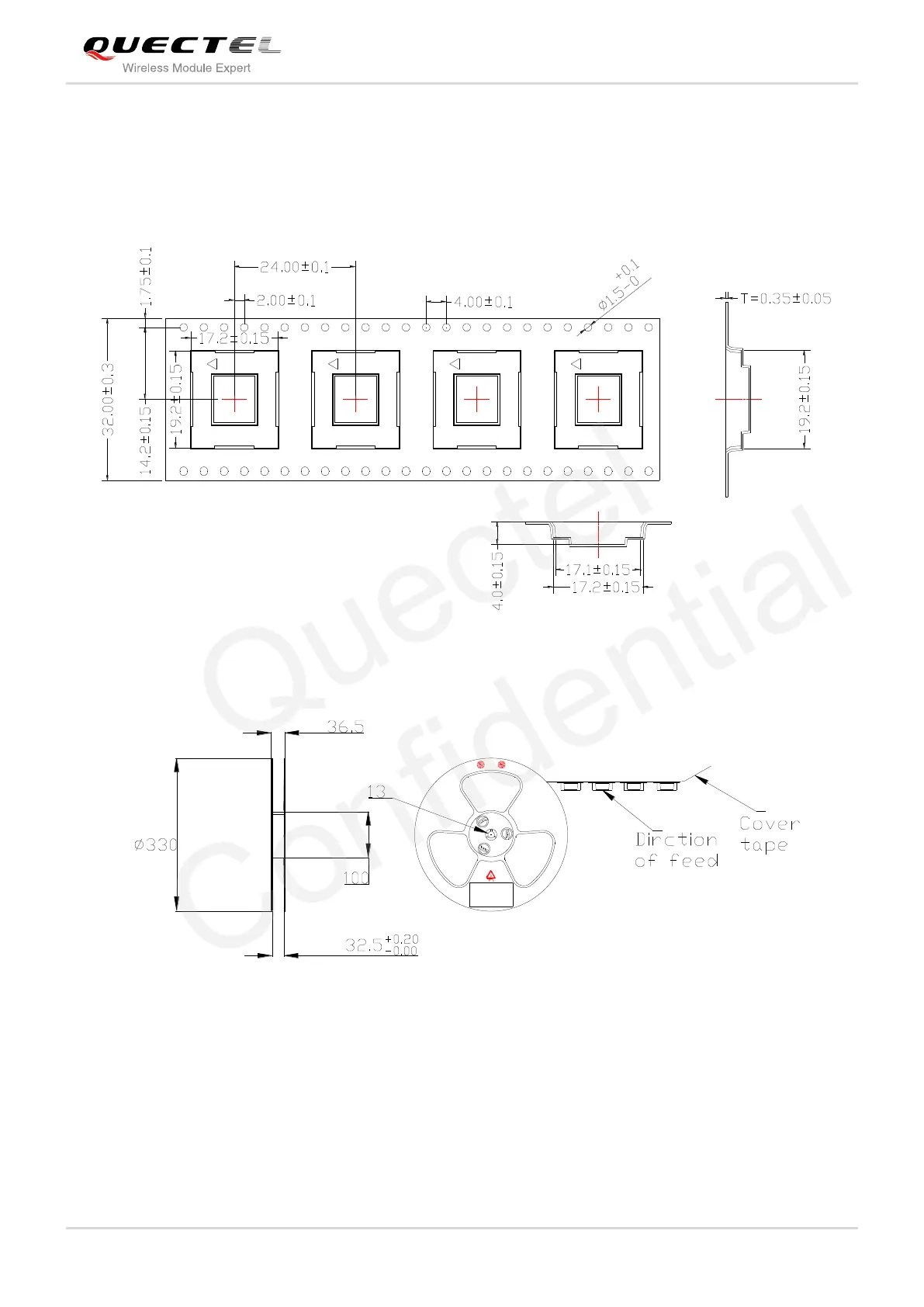

Figure 49: Tape and Reel Specification
Figure 50: Dimensions of Reel
