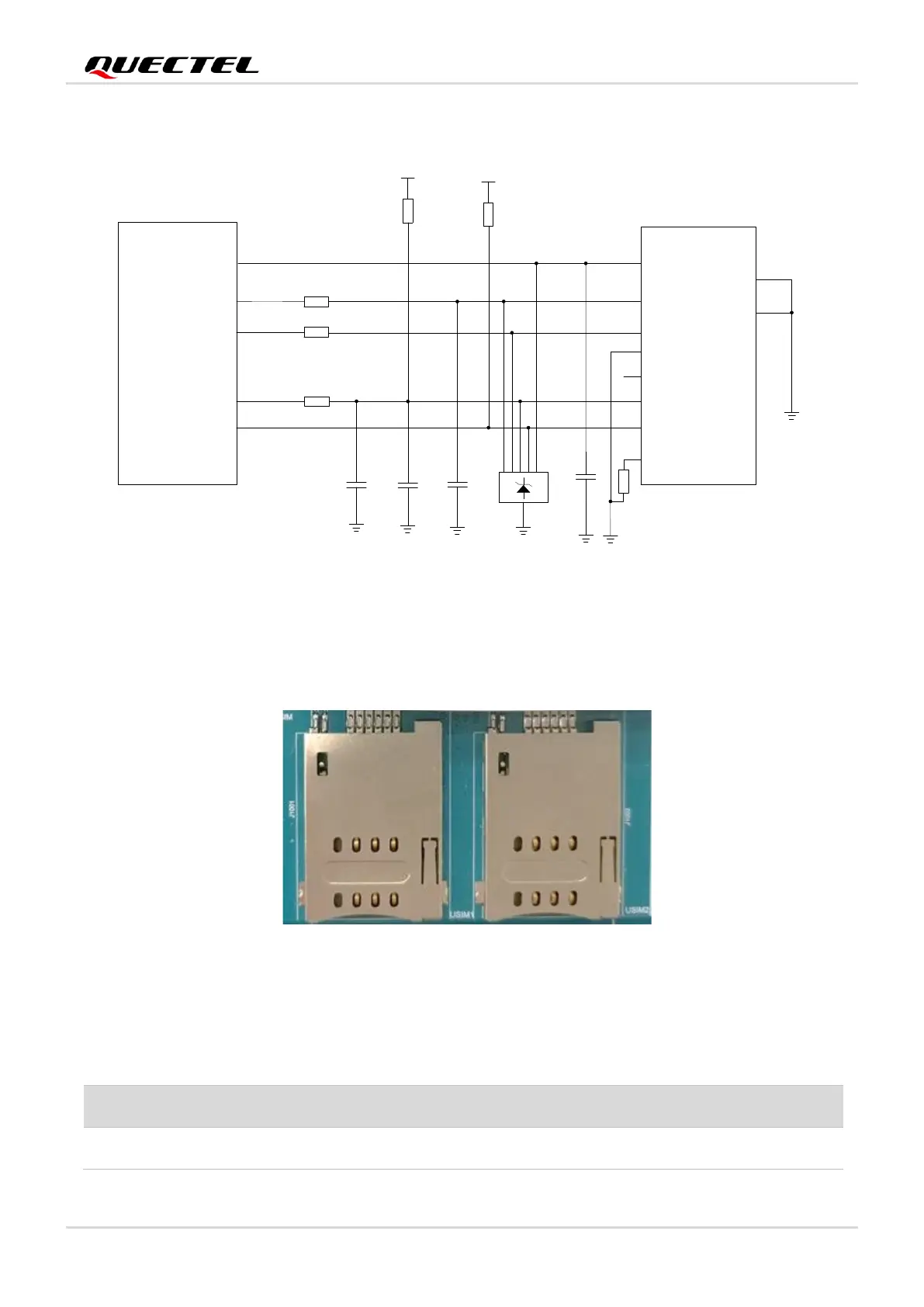

The following figure shows the simplified interface schematic for J1001.
USIM_VDD
USIM_RST
USIM_CLK
USIM_DATA
USIM_DET
22 R
USIM_VDD
100 nF
ESD
VCC
RST
CLK
DATA
GND2
NM-100 K
Module
R5
C1
22 pF
C2
C3 C4
22 R
R2
R3
R4
GND1
CD2
CD1
J1001
(U)SIM Card Connector
22 R
22 pF
22 pF
C2
C1
C3
CD2
LDO_1V8
10 K
R1
D1
GND
VPP
C6
C7
CD1
0 R
R6
Figure 31: Reference Circuit for (U)SIM Interface with (U)SIM1 Card Connector
The following figure shows the pin assignments of (U)SIM1 card connector (J1001) and (U)SIM2 card
connector (J1002).
(U)SIM1 Card
Connector
C1
C2C3
C5
C6C7
(U)SIM2 Card
Connector
C1
C2C3 C5C6C7
CD1 CD2
Figure 32: Pin Assignment of J1001 and J1002
Table 19: Pin Definition of (U)SIM1 Card Connector
No.
Pin Name
Description
C1
USIM_VDD
U(SIM) card power supply, provided by module
