Quectel Smart EVB G5 User Manual

Smart Module Series
Smart_EVB_G5_User_Guide 57 / 66

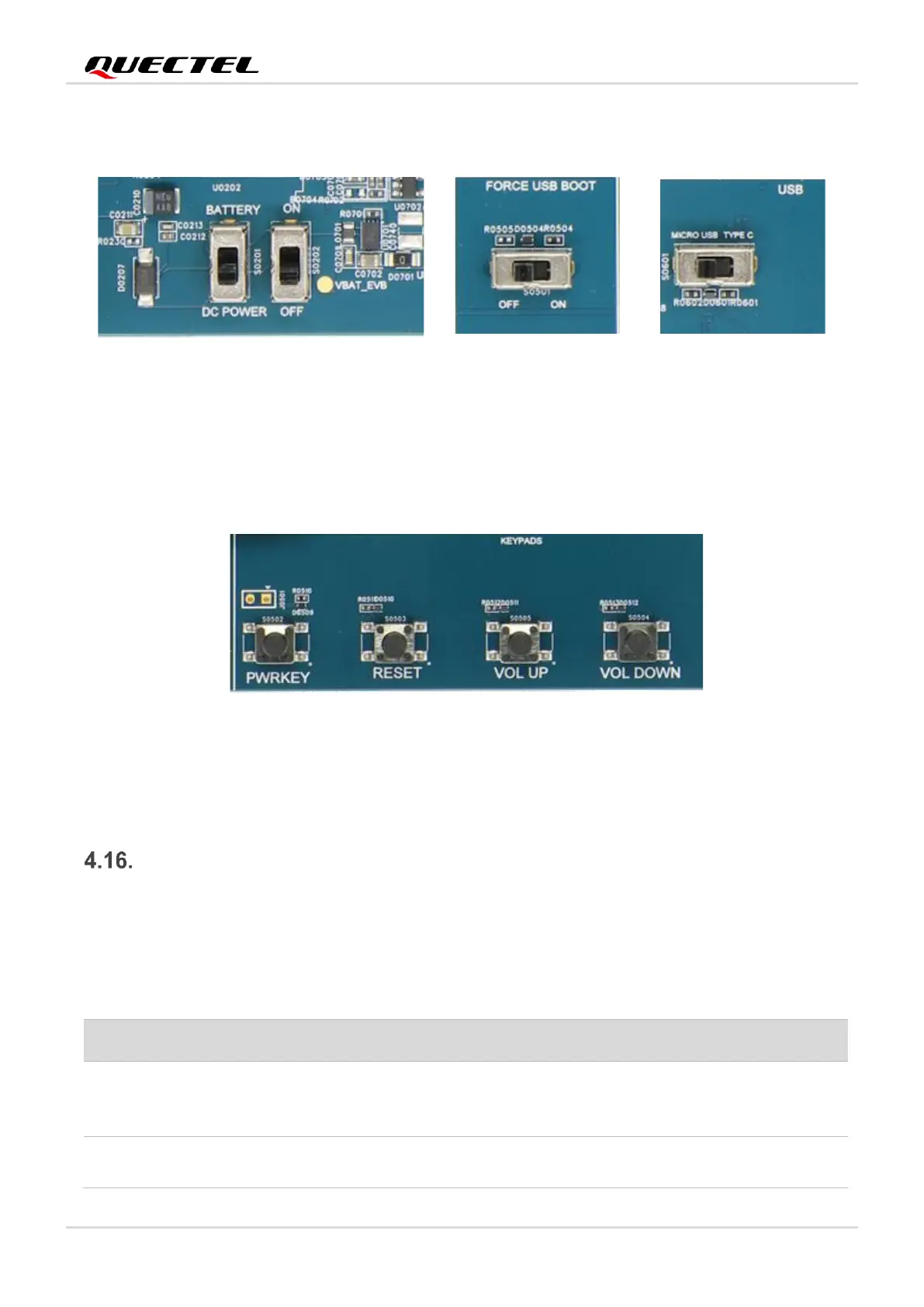

The switches are shown in following figures.
S0201
S0202
S0501
S0601
Figure 43: Switches
Smart EVB G5 provides four buttons S0502, S0503, S0504 and S0505, which are PWRKEY, RESET, VOL
DOWN and VOL UP respectively. The buttons are shown in the following figure.
S0502 S0503 S0505 S0504
Figure 44: Buttons
Status Indicators
There are three status indication LEDs on Smart EVB G5, illustrated as below.
Table 29: Description of Status Indication LEDs
RefDes.
Description
D0501
Indicates whether the power supply for EVB is on
⚫ Bright: VBAT ON
⚫ Extinct: VBAT OFF
D0502
Indicates whether the module is being charged
⚫ Bright: module is being charged
