HSPA/UMTS/GSM/GPRS Module Series
UG96&UG95&M95 R2.0 Compatible Design
UG96&UG95&M95 R2.0_Compatible_Design 31 / 42

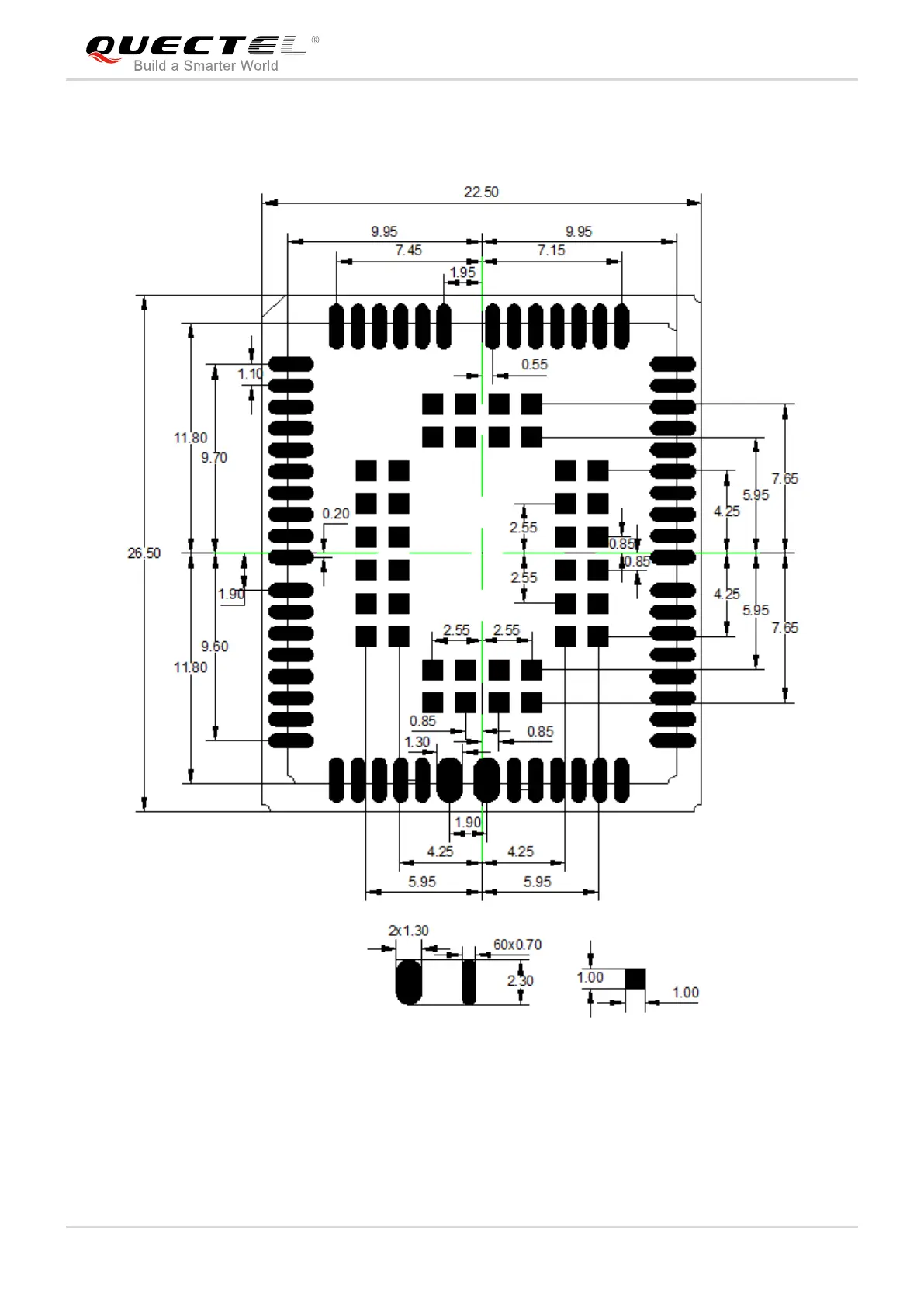

The following figure shows the recommended compatible footprint of UG96, UG95 and M95 R2.0.
Figure 20: Recommended Footprint of UG96/UG95/M95 R2.0
