5 Recommended Footprint and Stencil
Design
This chapter mainly introduces the recommended compatible footprint and stencil design of UG96, UG95
and M95 R2.0. All dimensions are measured in millimeter (mm), and the tolerances for dimensions
without tolerance values are ±0.05mm.
5.1. Recommended Compatible Footprint

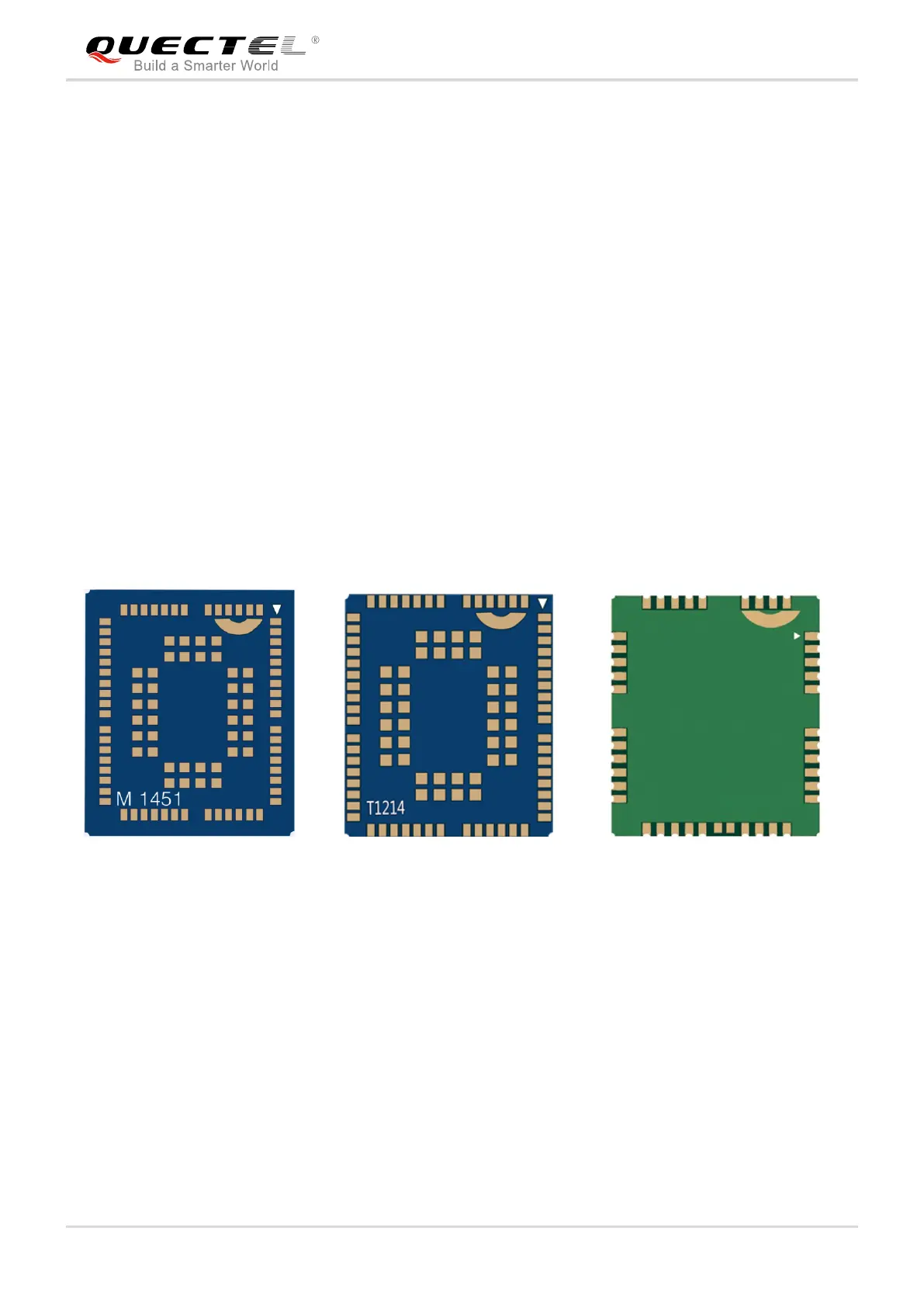

The following figure shows the bottom views of UG96, UG95 and M95 R2.0.
UG96 UG95 M95 R2.0
Figure 19: Bottom Views of UG96/UG95/M95 R2.0
