HSPA/UMTS/GSM/GPRS Module Series
UG96&UG95&M95 R2.0 Compatible Design
UG96&UG95&M95 R2.0_Compatible_Design 34 / 42

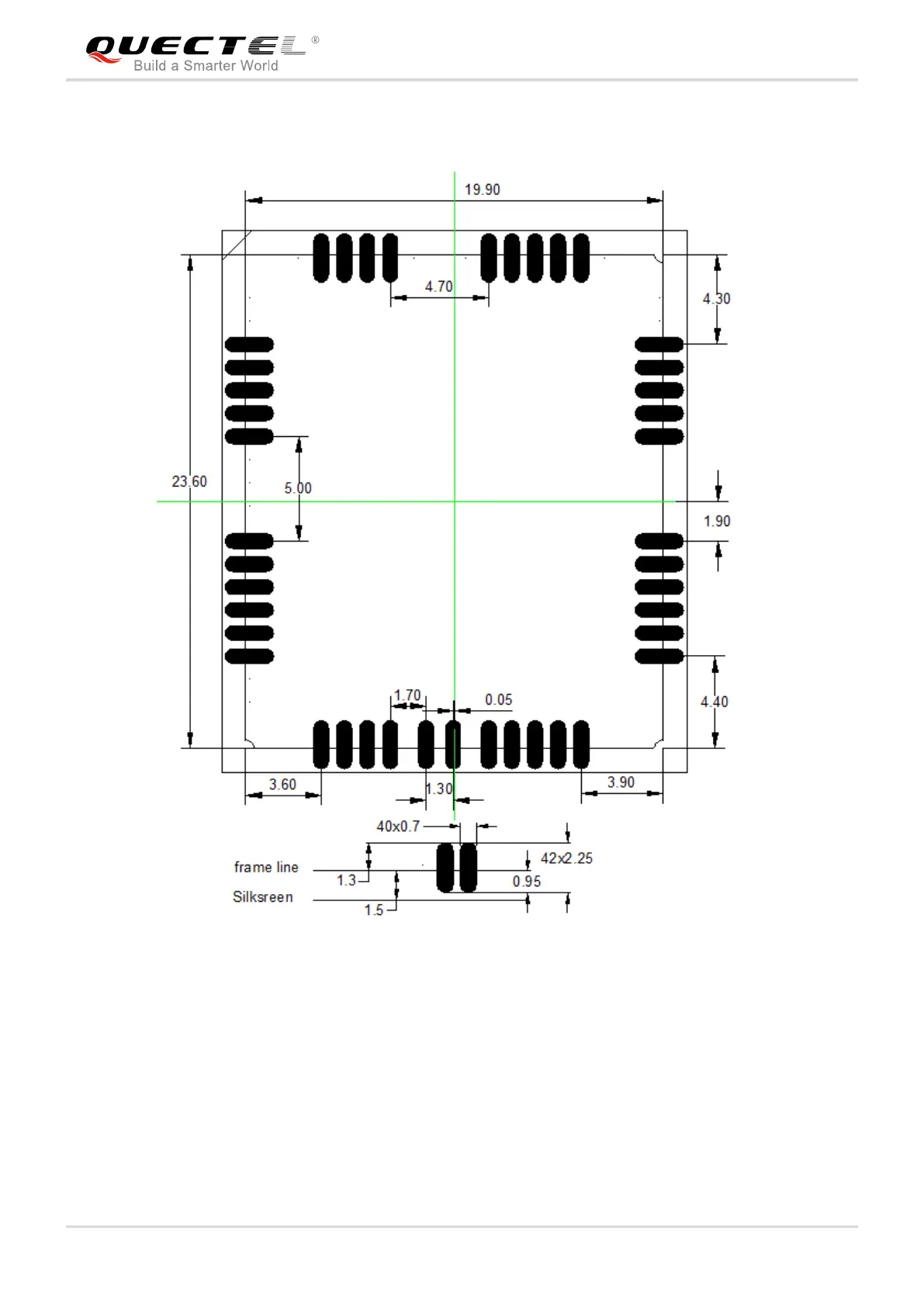

The recommended stencil design of M95 R2.0 is shown as below.
Figure 23: Recommended Stencil Design of M95 R2.0
