Quick DP Series User Manual

DP Series
EN
180°
A
A
B
C
D
C
D
B
Nm 3÷4,5
Nm 3÷4,5
Nm 3÷4,5
Nm 3÷4,5
QUICK DPSeries INSTALLATION AND USER’S MANUAL - REV000A
11
4 - Installation

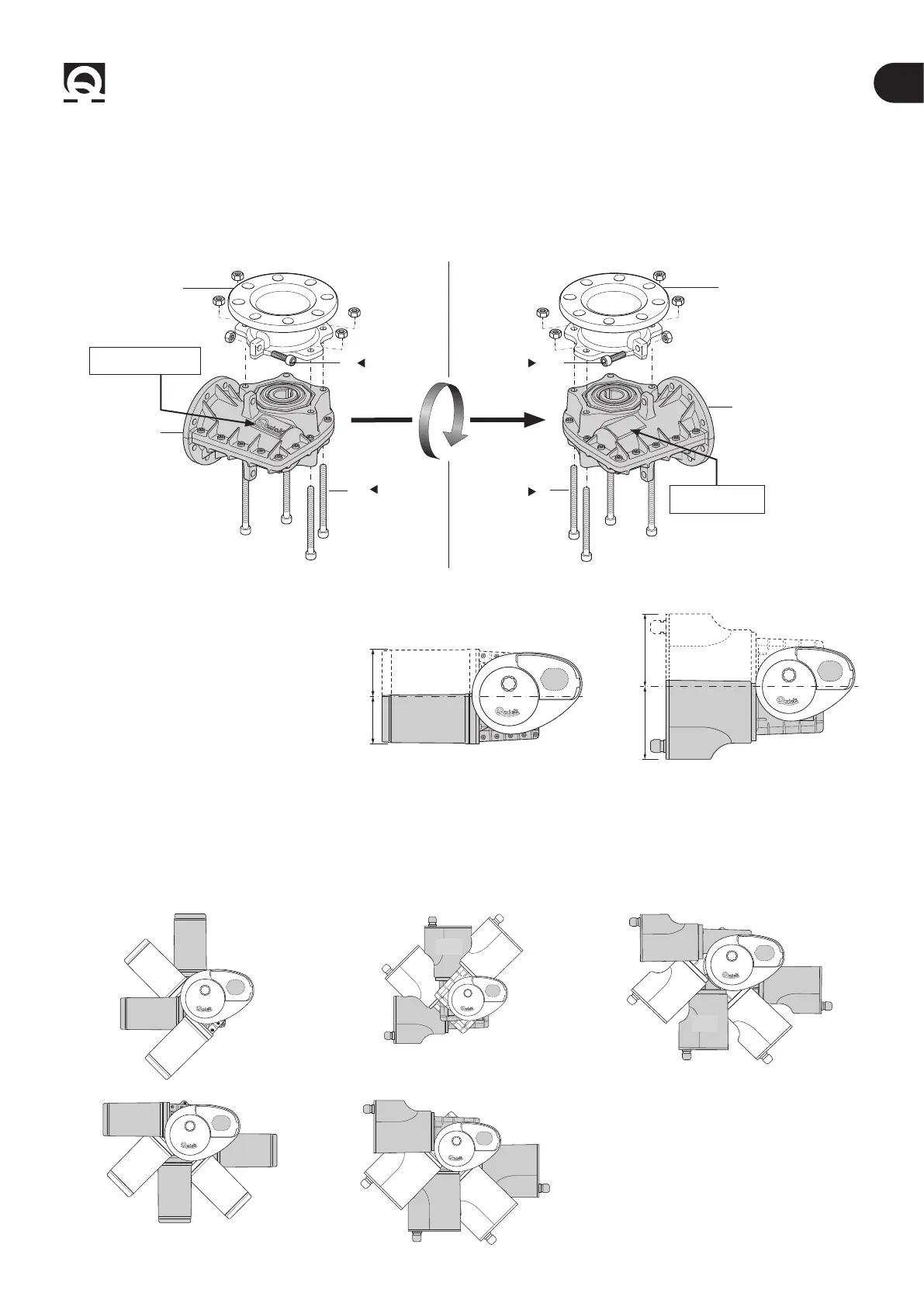

4.2 - Flange mounting DPSeries 700W - 1000W
Flange AcanbexedonbothsidesofgearboxB.
Mode 2
Mode 1
Visible
QUICK Logo
QUICK Logo
branded below
To change from mode 1 to mode 2 unscrew screws C and D and separate the two parts A and B, turn gearbox B by 180° and
reassemble it with screws C and D.
The two modes allow greater versatility
in mounting the motorgearbox,
while maintaining the same overall
dimensions.
85mm
85mm
141,5mm
Max
141,5mm
Max
4.3 - Motorgearbox rotation
It is possible to rotate the motorgearbox every 45° in relation to the base of the windlass. Possible motorgearbox positions:
Motorgearbox 300/500W Motorgearbox 700/1000W Motorgearbox 1500W
Mode 1
Mode 2
Mode 1
Mode 2
45°
45°
45°
45°
90°
90°
90°
90°
90°
45°
45°
90°
90°
90°
45°
45°
90°
90°
45°
45°
90°
90°
90°
