Quick DP Series User Manual

DP Series
EN
10
11
12
13
14
13
9
9
31
30
1
2
3
6
10
21
22
11
15
12
13
14
7
8
5
5
5
4
13
9
9
16
24
25
27
29
28
20
17
18
23
26
19
15
32
33
34
QUICK DPSeries INSTALLATION AND USER’S MANUAL - REV000A
16

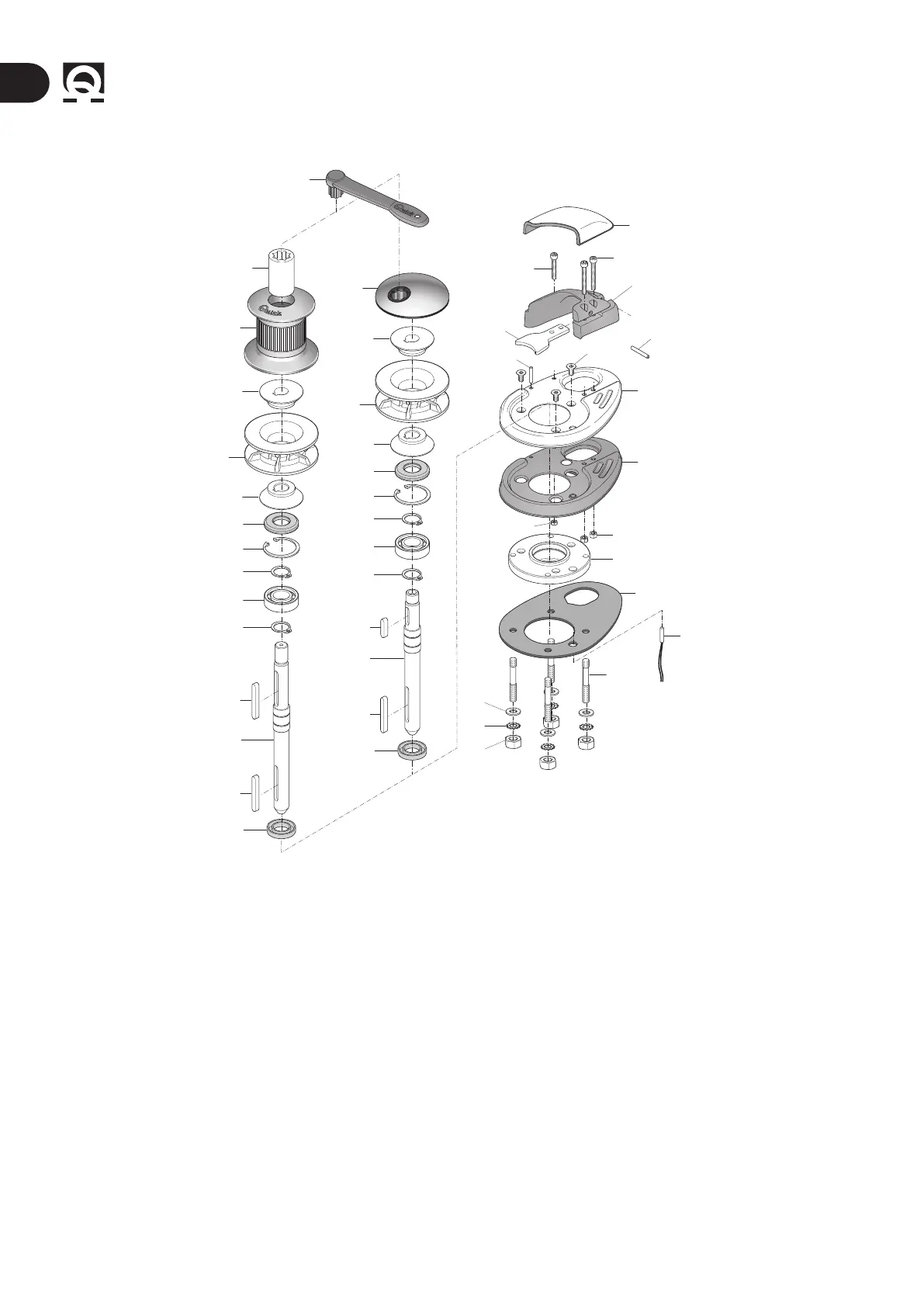

9 - List of components DP1
NO. NAME
1 STRAIGHT WINDLASS LEVER - NYLON
2 BUSH
3 DRUM
4 SHAFT DP1 D
5 KEY
6 GYPSY COVER
7 ALBERO DP1
8 KEY
9 CLUTCH CONE DP1
10 GYPSY 500W
11 OIL SEAL
12 INTERNAL SNAP RING
13 EXTERNAL SNAP RING
14 BEARING
15 OIL SEAL
16 CHAIN GUIDE COVER DP1
17 PLASTIC CHAIN PIPE DP1
18 SCREW
19 SCREW
20 SCREW
21 CHAIN STRIPPER DP1 STAINLESS STEEL
22 PIN
23 SCREW
24 BASE COVER DP1 STAINLESS STEEL
25 COVER INSERT DP1 PLASTIC
26 NUT
27 NUT
28 BASE DP1 ANODIZED ALUM.
29 GASKET
30 SENSOR
31 STUD
32 WASHER
33 SERRATED WASHER
34 NUT
