Quick DP Series User Manual

DP Series
EN
38
41
39
40
24
34
36
37
35
31
32
30
2020
2121
22
22
11
12
13
13
14
15
16171819
1
2
5
9
4
7
6
25
33
28
29
26
27
8
10
3
23
QUICK DPSeries INSTALLATION AND USER’S MANUAL - REV000A
17
NO. NAME
1 CURVED WINDLASS LEVER 700-1000W
2 STRAIGHT WINDLASS LEVER 300-500W
3 CHROMED DRUM BUSH DP2
4 DRUM - 800W
5 GYPSY COVER
6 TOP CLUTCH CONE
7 COMPLETE GYPSY DP2
8 BOTTOM CLUTCH CONE
9 SCREW
10 SHAPED WASHER
11 OIL SEAL
12 INTERNAL SNAP RING
13 EXTERNAL SNAP RING
14 BEARING
15 OIL SEAL
16 SHAFT DP2 700/1000W
17 SHAFT DP2 D 700/1000W
18 SHAFT DP2 300/500W
19 SHAFT DP2 D 300/500W
20 KEY
21 KEY
22 KEY
23 CHAIN GUIDE COVER DP2
24 CHAIN PIPE INSERT DP2 PLASTIC
25 SCREW
26 PRESSURE LEVER SPRING
27 PRESSURE LEVER DP2
28 CYLINDRICAL PIN
29 SCREW
30 SCREW
31 SCREW
32 CHAIN PIPE SERIES DP2 PLASTIC
33 SCREW
34 BASE COVER SERIES DP2 STAINLESS STEEL
35 COVER INSERT DP2 PLASTIC
36 WINDLASS GASKET DP2
37 CYLINDRICAL REED SENSOR
38 STUD
39 WASHER
40 SERRATED WASHER
41 NUT

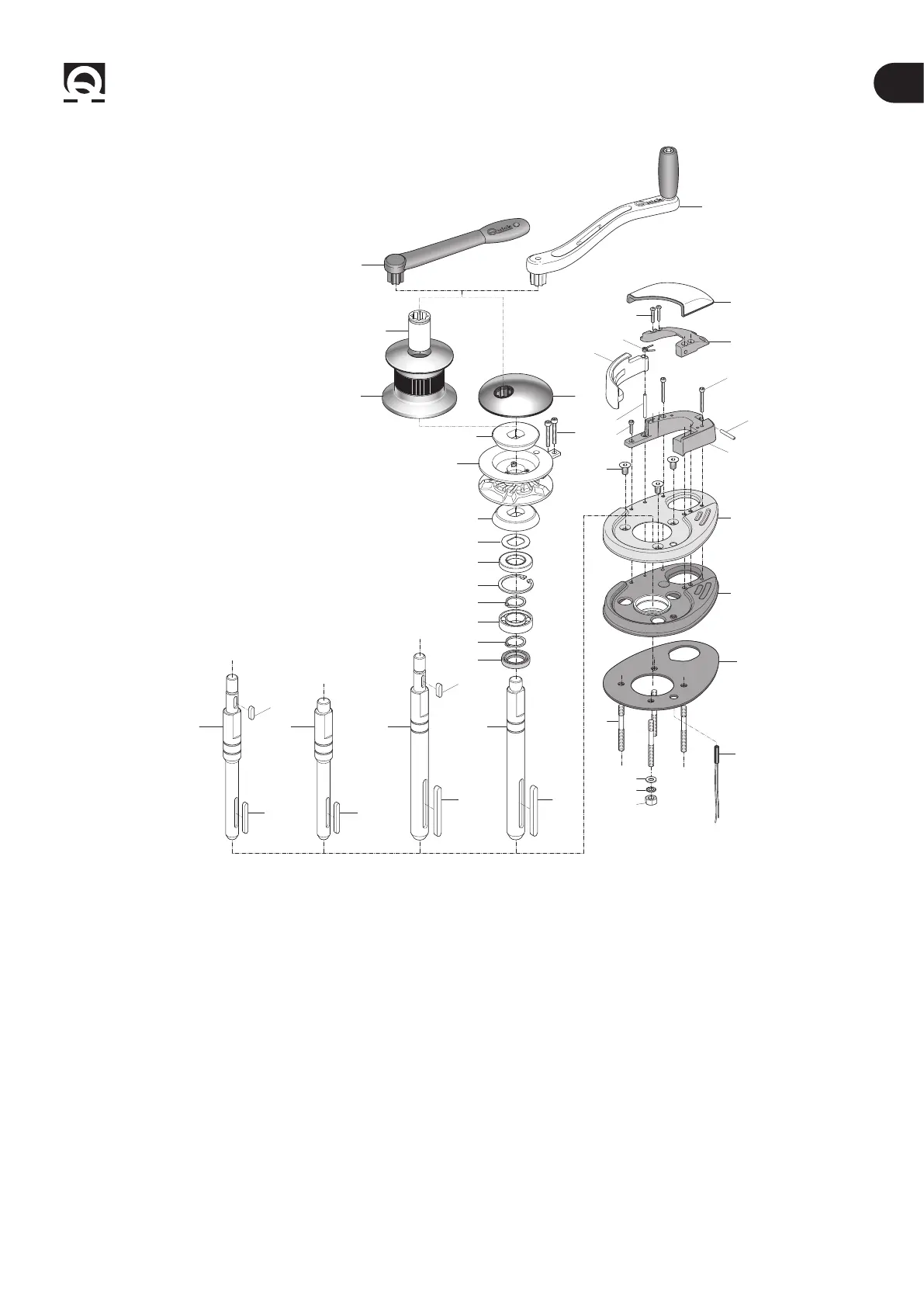

10 - List of components DP2
