Quick DP Series User Manual

DP Series
EN
11
12
13
14
13
15
16
1
2
27
25
31
20
19
3
4
18
17
24
17
9
5
23
22
21
28
26
30
29
32
33
38
39
35
35
34
40
36
37
7
8
10
6
41
42
43
QUICK DPSeries INSTALLATION AND USER’S MANUAL - REV000A
18

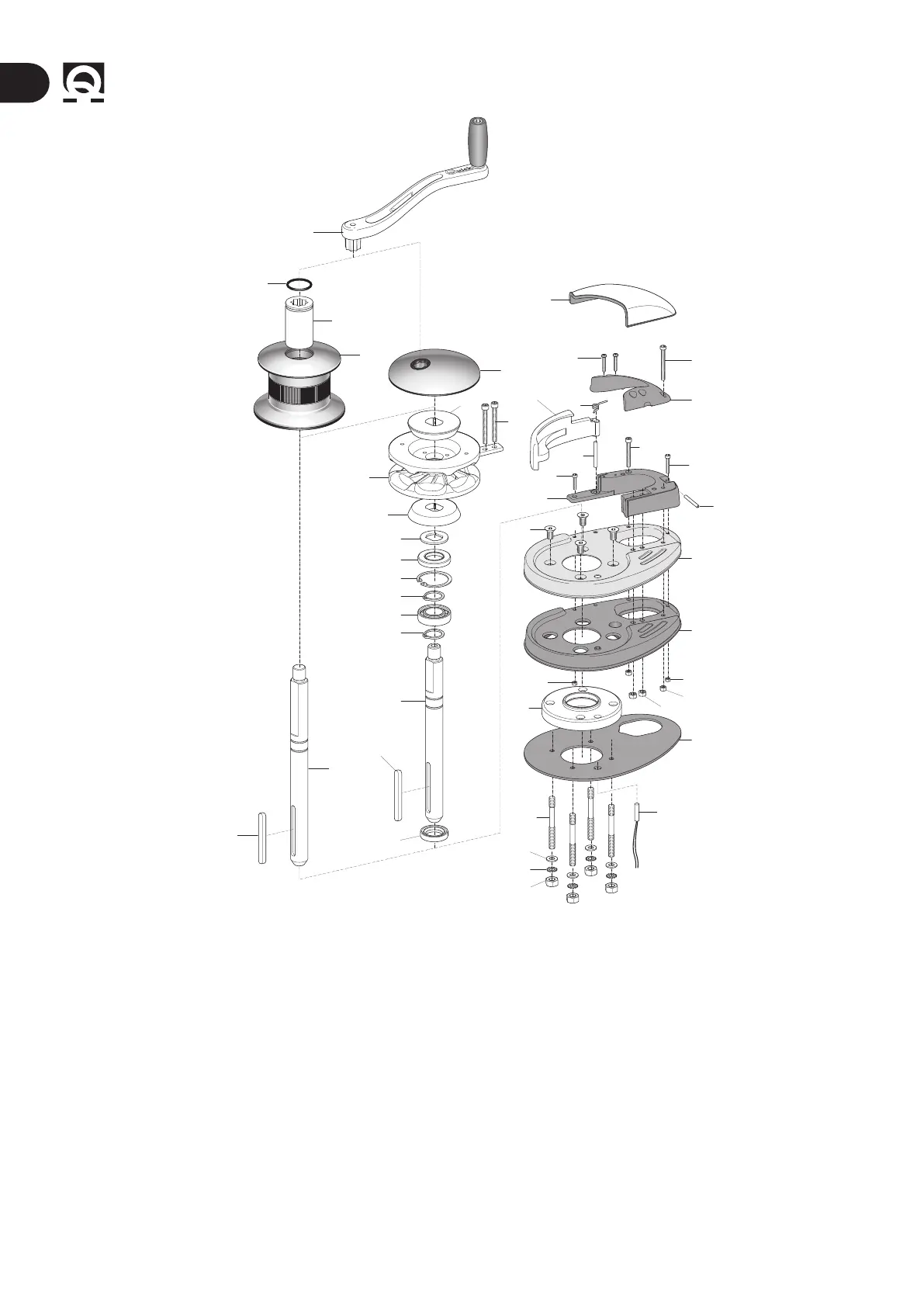

11 - List of components DP3
NO. NAME
1 CURVED WINDLASS LEVER
2 O-RING
3 CHROMED DRUM BUSH DP3
4 DRUM 1000W
5 GYPSY COVER
6 TOP CONE
7 GYPSY
8 BOTTOM CONE
9 SCREW
10 SHAPED WASHER
11 OIL SEAL
12 INTERNAL SNAP RING
13 EXTERNAL SNAP RING
14 BEARING
15 ALBERO DP3
16 OIL SEAL
17 KEY
18 SHAFT DP3 D
19 CHAIN GUIDE COVER
20 SCREW
21 SCREW
22 CHAIN PIPE INSERT
23 PRESSURE LEVER SPRING
24 PRESSURE LEVER
25 CYLINDRICAL PIN
26 SCREW
27 SCREW
28 SCREW
29 SCREW
30 CHAIN PIPE SERIES DP3
31 SCREW
32 BASE COVER DP3
33 COVER INSERT DP3
34 ROUND BASE DP3
35 NUT
36 NUT
37 NUT
38 GASKET/TEMPLATE DPR
39 SENSOR
40 STUD
41 WASHER
42 SERRATED WASHER
43 NUT
