QUICK DPSeries INSTALLATION AND USER’S MANUAL - REV000A
19

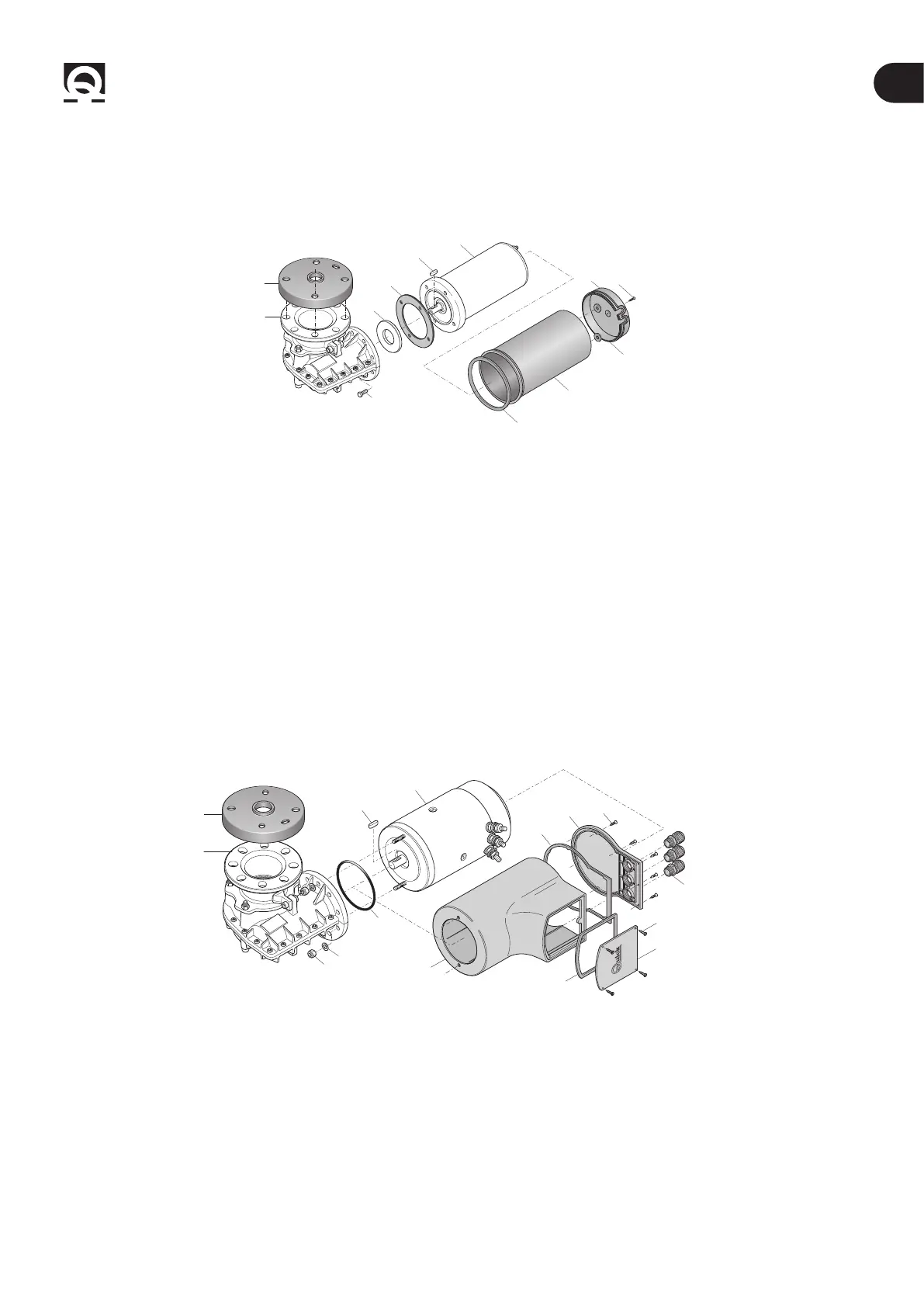

12 - List of motorgearbox components
MOTORGEARBOX 700/1000W DP2 P - DP3 P
MOTORGEARBOX 300/500W DP1 P - DP2 P
POS NAME
1 GEARBOX FLANGE GASKET TOP TG50
2 GEARBOX - QUICK TG50 1000W
3 WASHER
4 SELF-LOCKING NUT
5 O-RING
6 KEY
7A MOTOR 700W 12V
7B MOTOR 1000W 12V
7C MOTOR 700W 24V
7D MOTOR 1000W 24V
8A CARTER 700W
8B CARTER 1000W
9 TERMINAL BOARD GASKET 700/1000W
10 TERMINAL BOARD COVER 700/1000W
11 SCREW
12 BOTTOM GASKET 700/1000W
13 BOTTOM COVER 700/1000W
14 CABLE GLAND
POS NAME
1 GEARBOX FLANGE GASKET TOP TG40
2A GEARBOX - QUICK TG40 500W
2B GEARBOX - QUICK TG40 500W HS
3 SCREW
4 MOTORGEARBOX GASKET
5 KEY
6A MOTOR 3000W 12V
6B MOTOR 500W 12V
6C MOTOR 500W 24V
7 FLANGE GASKET
8 MOTOR CASING 300/500W
9 MOTOR POLE GASKET 300/500W
10 BOTTOM COVER ELECTRIC MOTOR 300/500W
11 SCREW
