DP Series
EN
QUICK DPSeries INSTALLATION AND USER’S MANUAL - REV000A
23

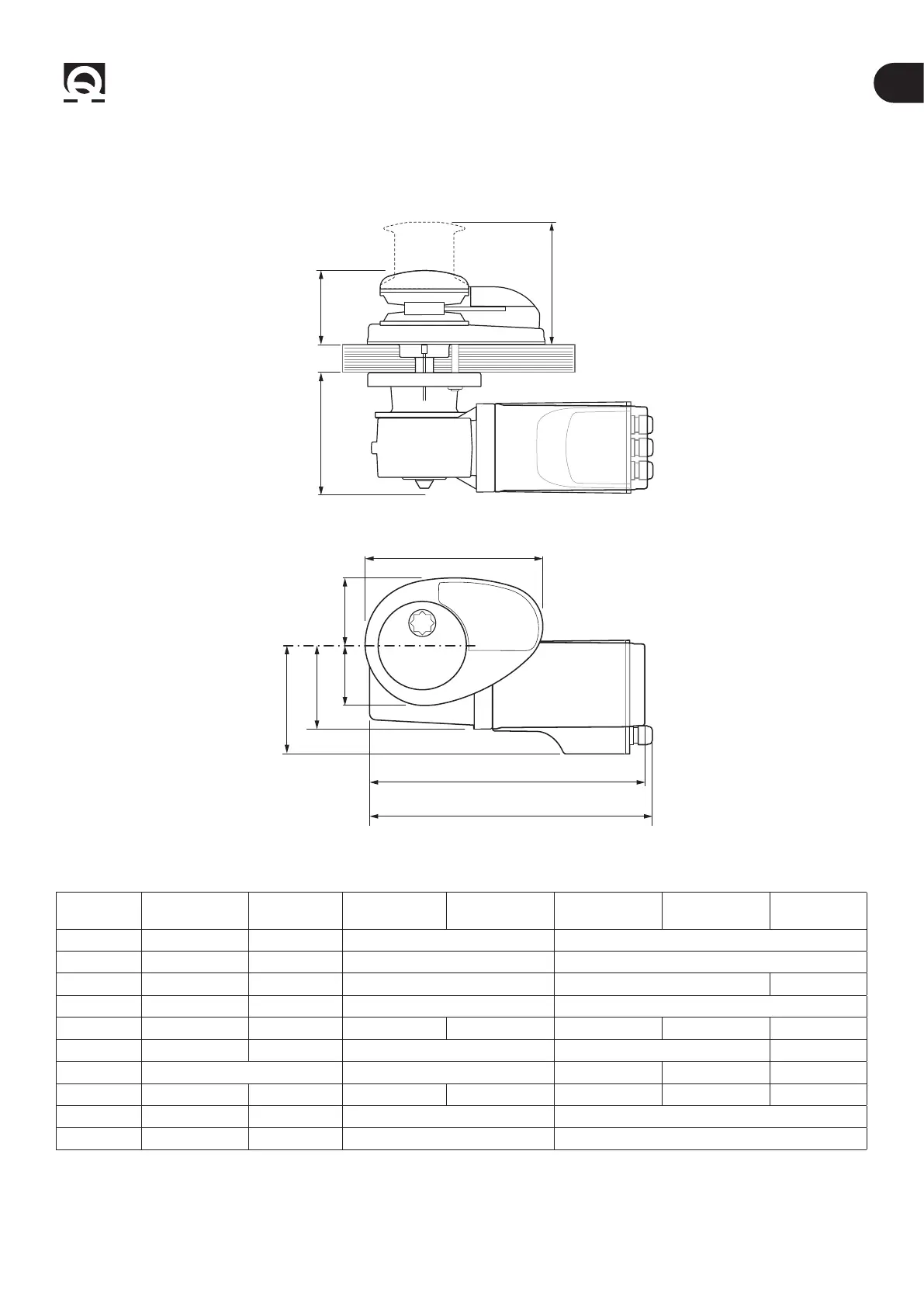

14 - Dimensions
A
B
C
E
G
F
I
L
H
D
DPSeries P
(-/D)
DP1 P
300W 500W
DP2 P
300W 500W
DP2 P
700W
DP2 P
1000W
DP3 P
700W
DP3 P
1000W
DP3
1500W
A 75.4 (2 31/32) 84.4 (3 5/16) 84(35⁄16) 99 (3 57/64)
B Drum 134 (5 9/32) 140 (5 33/64) 140 (5 1/2) 166(617⁄32)
C 127.5 (5 1/64) 127.5 (5 1/64) 155(67⁄64) 155.4 (6 1/8) 170.4 (6 45/64)
D 182 (7 5/32) 196 (7 23/32) 196 (7 23/32) 247 (9 11/16)
E 85 (3 11/32) 85 (3 11/32) --- --- --- --- ---
F --- --- 141.5 (5 9/16) 141.5 (5 9/16) 161.5 (6 23/64)
G 281 (11 1/16) ---- --- --- ---
H --- --- 340 (13 24/64) 355 (13 31/32) 340 (13 24/64) 355 (13 31/32) 385 (15 5/32)
I 69 (2 23/32) 78 (3 1/16) 78 (2 3/16) 92 (3 5/8)
L 61 (2 13/32) 68 (2 43/64) 68 (2 43/64) 82 (3 7/32)
