INSTALLATION AND USE MANUAL QUICK MC² X19 REV002A
7 - Installation procedures
• For tightening, use a power drill to tighten the Phillips head screws.
• Tighten gradually in a criss-cross pattern.
• Use suitable locking systems.
WARNING: Approximately one week after installation, check screws/nuts for proper tightening.
Periodically check the tightening of the screws for potential settling adjustments.

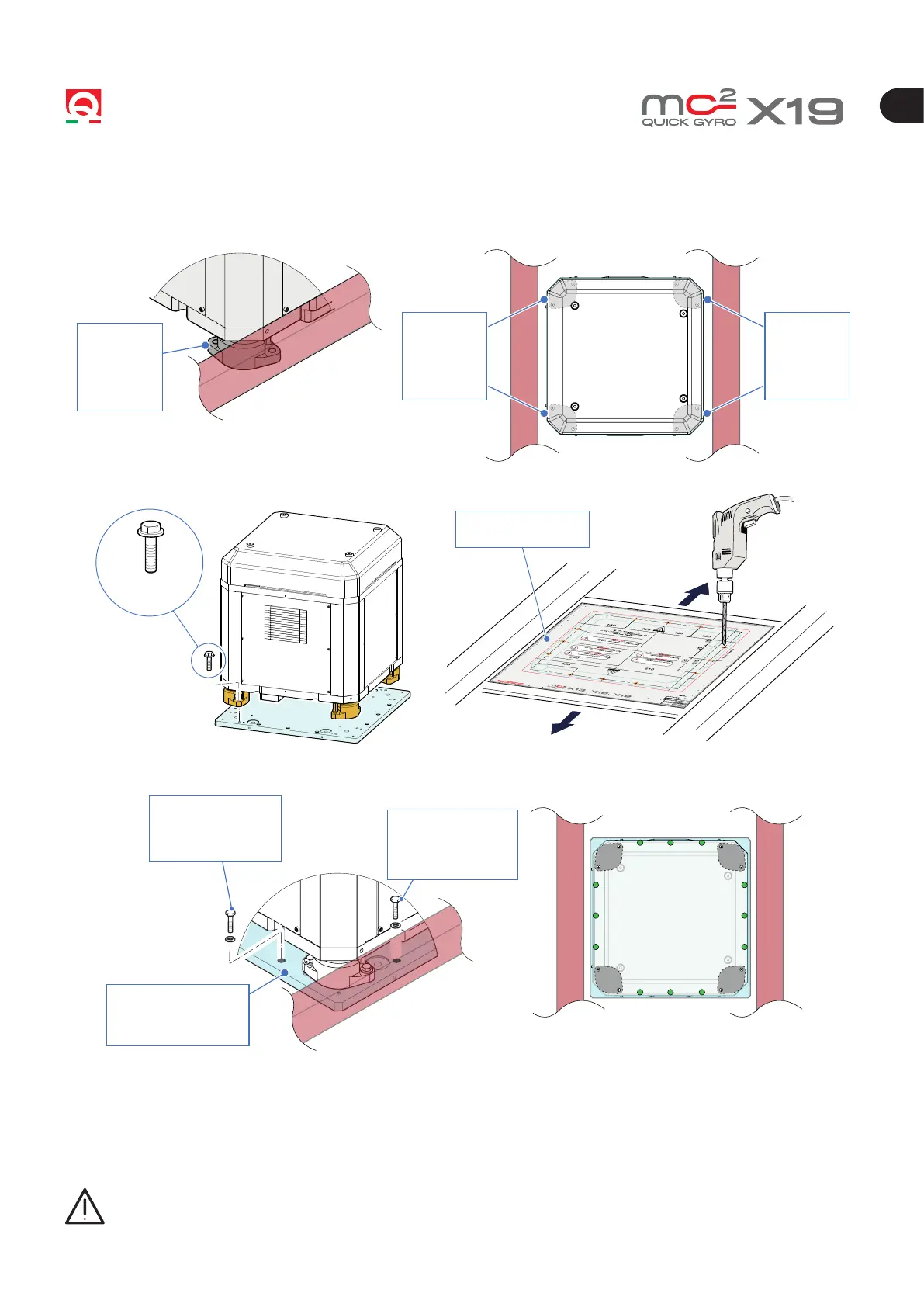

7.5 - Stabilizer securing with base plate (optional)
Use the drilling template supplied to mark the anchoring points before positioning the gyroscope.
In the condition where the screws of the silent blocks ARE NOT accessible, to fix the stabilizer must be the relative
base plate available as OSP (original spare part).
Silent block
WITHOUT
accessibility
from above
Silent block
WITHOUT
accessibility
from above
Silent block
WITHOUT
accessibility
from above
BOW/STERN
BOW/STERN
Fixing
screws
Fix the stabilizer on the base plate
Base plate screws
WITH ACCESSIBILITY
from above
Base plate WITH
ACCESSIBILITY
from above
Base plate screws
WITH ACCESSIBILITY
from above
Drilling
Templete
• Quick
®
MC
²
X2 shall be secured by means of screws with strength class no less than 10.9 (Grade 8),
Tightening torque 136 Nm (1203.7 lbf/inch) - M12 (the screws are supplied with the product).
