23
EN
INSTALLATION AND USE MANUAL QUICK MC² X19 REV002A
7 - Installation procedures
• For tightening, use a power drill to tighten the Phillips head screws.
• Tighten gradually in a criss-cross pattern.
• Use suitable locking systems.
WARNING: Approximately one week after installation, check screws/nuts for proper tightening.
Periodically check the tightening of the screws for potential settling adjustments.

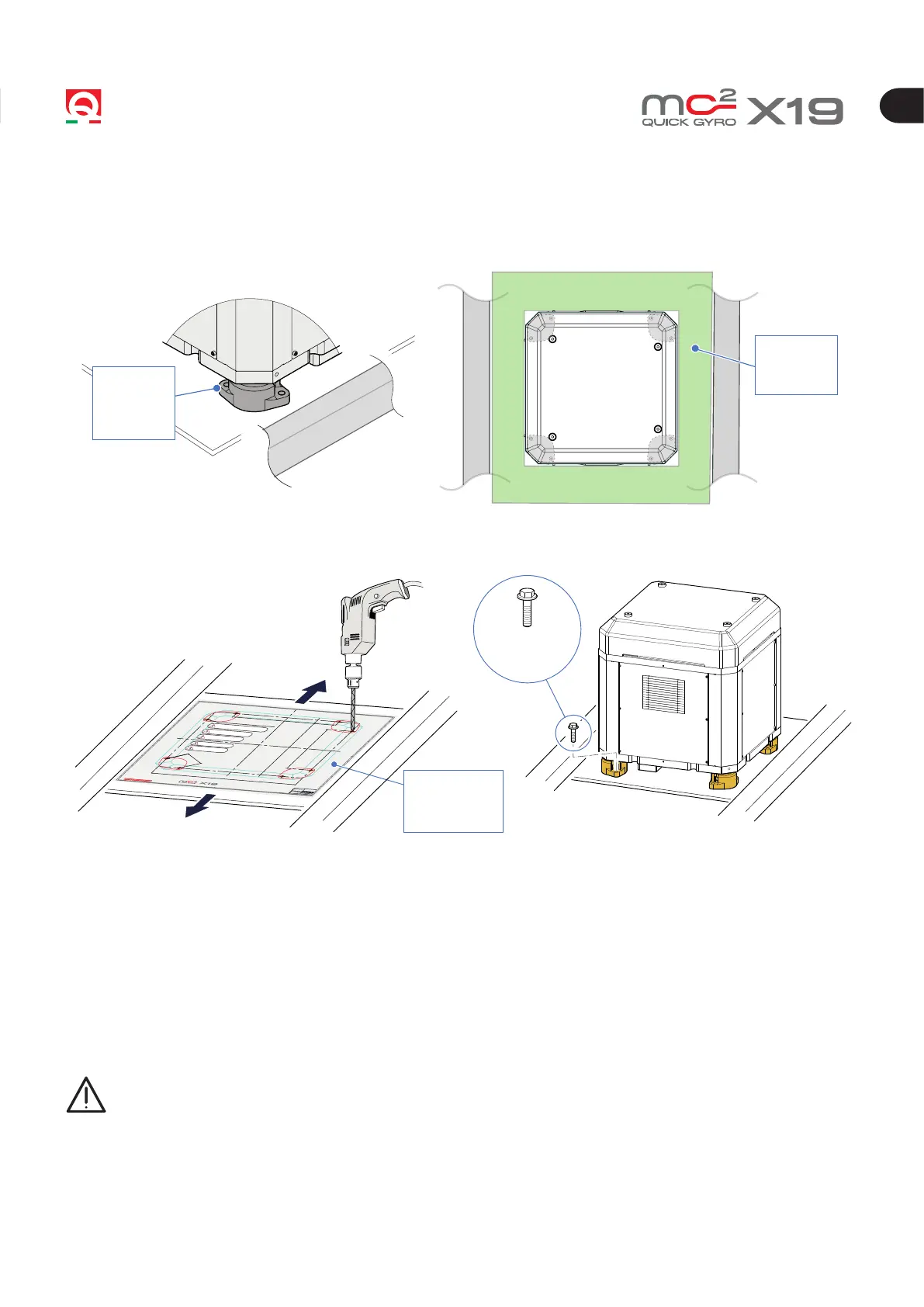

7.4 - Securing
BOW/STERN
BOW/STERN
Use the drilling template supplied to mark the anchoring points before positioning the gyroscope.
In the condition where there is enough space to access the silent blocks, the stabilizer will be positioned using the
drilling template and fixed with the relative screws.
Silent block
with
accessibility
from above
Accessibility
zone
100
4"
Descrizione / Description
Formato / Size
U.M. / M.U.
Disegnato da / Drawn by
Approvato da / Checked by
Scala / Scale
Foglio N°
This is an unpublished work the
copyright in which rest in Quick S.r.l.
All this document and its informa�on
is supplied without liability for error
or party may be reproduced used or
disclosed except as authorized by
contract or permission.
Data / Date
Via Piangipane 120/A - 48124 Piangipane (Ra)
DRILLING TEMPLATE
05/07/2019
mm
Evitare di rilevare le quote dal disegno / avoid obtaining measures from the drawing
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
M M
N N
P P
R R
T T
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
HULL STRUCTURE MUST BE MORE PLANAR POSSIBLE
(NOT OVER 1.5MM FROM ON SIDE TO OTHER SIDE)
WARNING
CHECK SCREWS AFTER 50H OF USE
TIGHT SCREWS AT CORRECT
TIGHTENING TORQUE (SEE IN MANUAL)
WARNING
WARNING
WARNING
USE ONLY WASHER AND LOCTITE
(DO NOT USE LOCK WASHER)
USE ONLY THE SCREW PROVIDED BY QUICK
(OR SAME GRADE SCREWS)
WARNING
194,6 194,6
389
silent block
110
590
544
Ø 13 - Screws M12
n°12 - minimum strength class 10.9
130 Nm Tighten
Drilling
templete
Fixing
screws
• Quick
®
MC
²
X2 shall be secured by means of screws with strength class no less than 10.9 (Grade 8),
Tightening torque 136 Nm (1203.7 lbf/inch) - M12 (the screws are supplied with the product).
