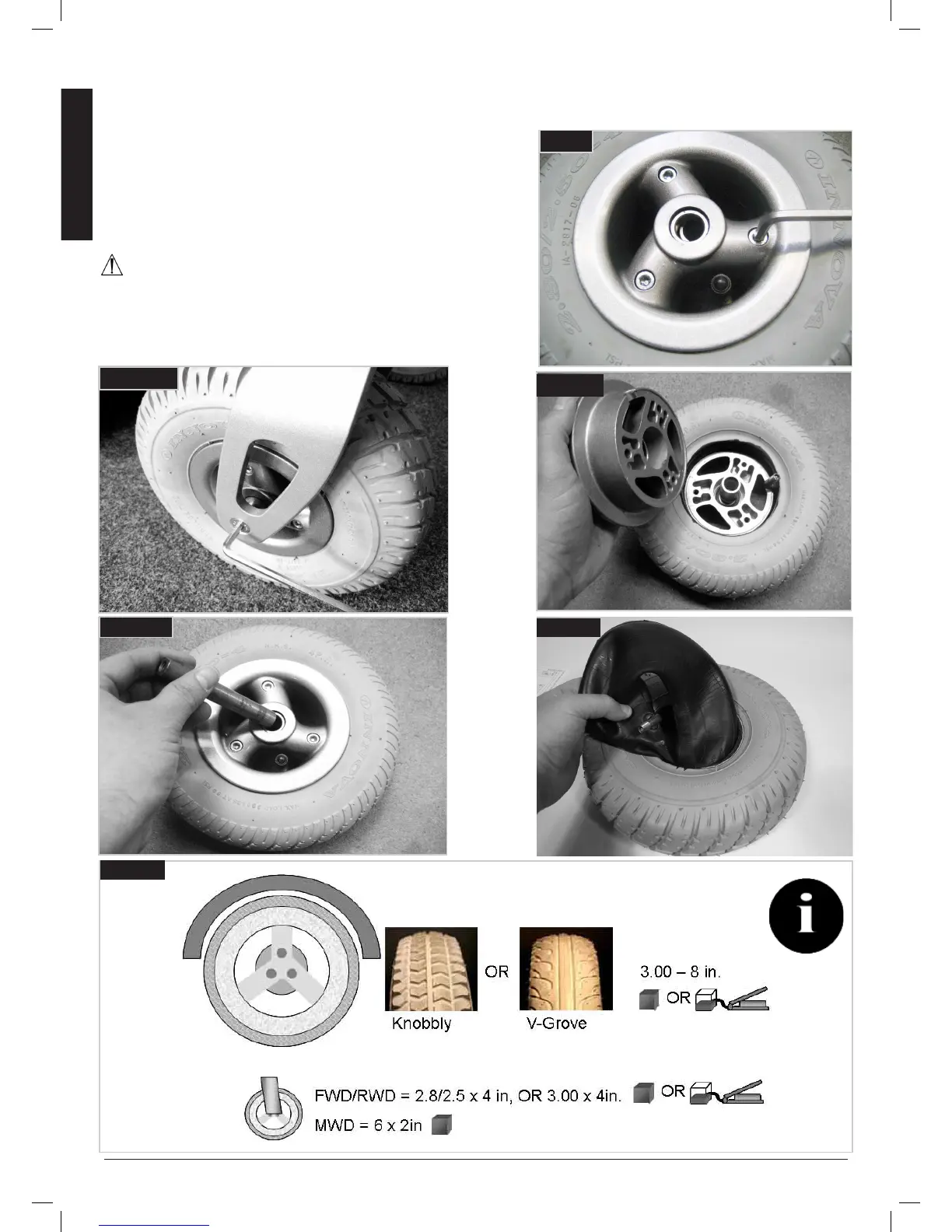

14.3 Removing the castor wheel.
Note the position of the castor & which hole is used to mount it. Ensure that
both castors use the same mount position.
• Use a 5.0mm hex key remove the 2 axle studs, (Fig.14.11).
• Remove the centre spacers and spindle, (Fig.14.12).
For pneumatic tyres,
• let the air out of the tyre.
• Undo the 3 hub studs, (Fig.14.13).
• Lift the hubs out, (Fig.14.14).
• Gently feed the tube out of the tyre, (Fig.14.15)
• When refitting the hub studs, tighten to a torque of 15-20Nm.
WARNING!
Always use a new nyloc nut when refitting.
Fig. 14.11
Fig. 14.12
Fig. 14.14
Fig. 14.15
Fig. 14.13
Fig. 14.16
