Quickie Puma 40 User Manual

Puma 40 Sedeo Ergo 53
Rev. 1.0
ENGLISH

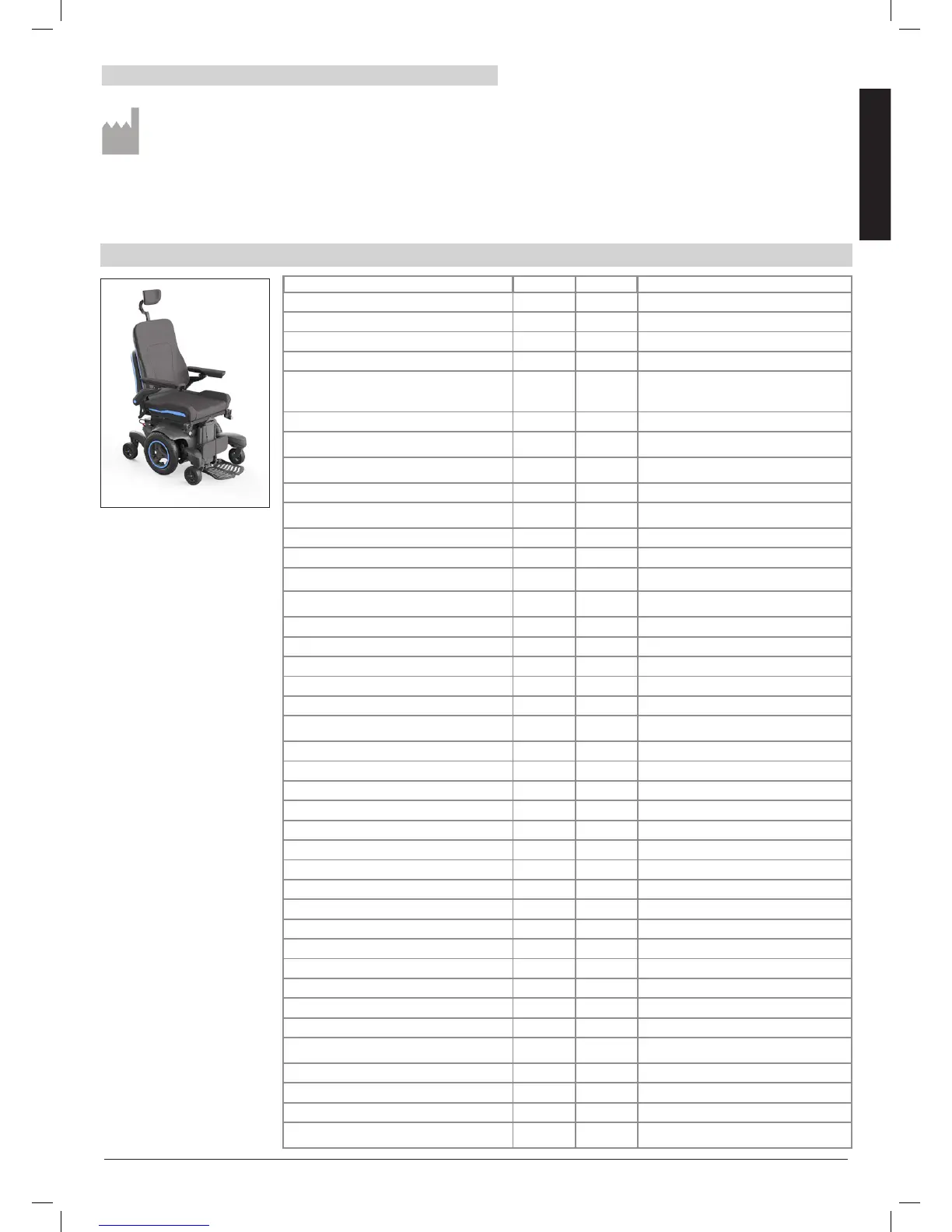

15.0 Specification sheets (EN 12184 & ISO 7176-15)
Sunrise Medical HCM B.V.
Vossenbeemd 104
5705 CL Helmond
The Netherlands
T: +31 (0)492 593 888
E: customerservice@sunrisemedical.nl
www.SunriseMedical.nl
www.SunriseMedical.eu (International)
Maximum occupant mass
(test dummy mass): 160 kg
The wheelchair Quickie Puma
40 Sedeo Ergo conforms to
the following standards:
a) requirements and test
methods for static, impact and
fatigue strengths
(ISO 7176-8)
b) power and control systems
for electric wheelchairs
— requirements and test
methods (ISO 7176-14)
c) climatic test in accordance
with ISO 7176-9
d) requirements for resistance
to ignition in accordance with
ISO 7176-16
15.1 Model: Quickie Puma 40 Sedeo Ergo
ISO 7176-15 Min Max Comments
Overall length (with legrest)
1180 mm
With 50mm leg extesions fitted
Overall width 665 mm Without lights and with lights
Folded length N/A N/A Not a folding chair
Folded height N/A N/A Not a folding chair
Total mass (with batteries) 188 kg
Min = Lightest chair with no seat
module tted. Max = Heaviest chair
conguration
Mass of the heaviest part 145 kg Wheelchair without batteries
Static stability downhill - 9°
0º / 0º recline & max. seat height.
Not with Balle unit
Static stability uphill - 9°
9º / 12º recline & max. seat height.
Not with Balle unit
Static stability sideways - 9° 0º / 0º recline & max. seat height
Energy consumption (Max Range) 35 km
Depending on terrain, speed and user
weight
Dynamic stability uphill 10°
Obstacle climbing 60 mm 100 kg (75 mm at 160 kg)
Maximum speed forward 6 km/h 13 km/h
Minimum braking distance from max
speed
3,100 mm Dependant on programming
Seat plane angle 0° 50° Powered Option
Effective seat depth 400 mm 560 mm
Effective seat width 400 mm 560 mm
Seat surface height at front edge 420 mm 480 mm With a 0° seat angle
Backrest angle 0° 85° Powered
Backrest height 560 mm 700 mm
Depends on option chosen and
length of back posts
Footrest to seat distance 340 mm 520 mm
Leg to seat surface angle 0° 90°
Armrest to seat distance 240 mm 340 mm Using Standard Cushion
Front location of armrest structure 260 mm 560 mm
Handrim diameter N/A N/A Not a manual chair
Horizontal location of axle N/A N/A Not a manual chair
Minimum turning radius 630 mm
Mass of the test dummy 160 kg
EN 12184 MIN MAX Comments
Maximum kerb height 60 mm
Ground clearance 75 mm
Turning space 1100 mm
Reversing width 1000 mm
Speed control operation force 1,5 N
Direction control operation force 1,5 N
Pressure switch range -6,9 kPa +6,9 kPa
Relative to atmospheric (-1.0 to +1.0
PSI)
Pressure switches operation force (puff) N/A N/A Programmable
Pressure switches operation force (sip) N/A N/A Programmable
Pressure resolution 0.1
Pressure Barb size (OD)
0,15
Inches
Operating temperature: -25°C to 50°C
Storage temperature: -40°C to 65°C
Moisture resistance: IPX4
No restrictions on humidity and air pressure.

Quickie Puma 40 Specifications

General

Brand	Quickie
Model	Puma 40
Category	Wheelchair
Language	English
