Quickie QM-710 User Manual

118444 Rev. D
15
QM-710/71 5HD/72 0

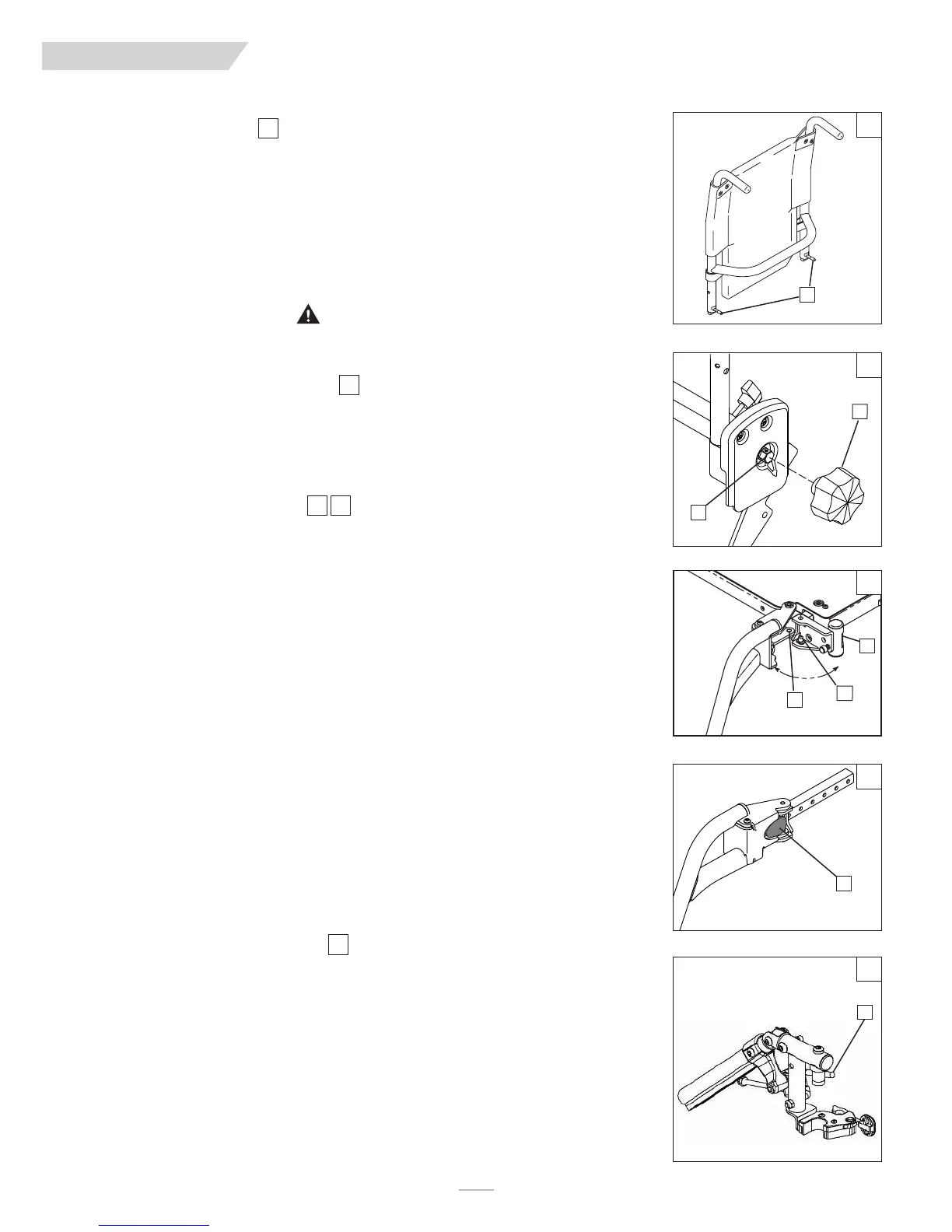

VIII. USE AND MAINTENANCE
1
3
4
5
2
A
B
C
D
E
F
G
H
I. FOLDING BACKREST
Quickie QM-710/715HD/720 wheelchairs are shipped with backrest in folded position. (optional)
1. Upright Positioning
a. Lift backrest to upright position so that latch handles (A) lock into place.
b. Backrest is ready for use.
2. Folding Backrest
a. Lift and turn backrest latch handles (A) inward
or outward.
b. Fold backrest forward.
WARNING
Backrest latches must be locked into place before operating wheelchair.
J. MANUAL RECLINE OPERATION
The ASAP II seating system has two manual recline options. The first is using a 16mm socket
wrench at point (B) and the second can be done by using a knob (C) on the side of the chair. To
recline the chair, rotate this knob clockwise and turn the knob counter-clockwise to return the
back to a more upright position.
K. SWING-AWAY FOOTRESTS
1. Installation
a. Place swing-away pivot pin (D) into the locating hole (E) on top of the hanger mount with
the footrest facing outward from frame.
b. Rotate the footrest inward until latch plate locks (F) into place on locking bolt.
2. Removal
a. To remove footrest, press quick-release lever (G).
b. Rotate footrest outward and lift.
L. ELEVATING LEGREST
(Optional)
1. Installation
To install or remove Elevating Legrest (ELR) see instructions for Swing-away Footrest installation.
2. Adjustment
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, first lift slightly then press release lever (H) down
and lower legrest to desired position.
1
2
43
5

Quickie QM-710 Specifications

General

Type	Power Wheelchair
Drive	Mid-Wheel Drive
Weight Capacity	300 lbs
Maximum Speed	6 mph
Ground Clearance	3"
Drive Wheel Size	14"
Battery	Group 24
Front Casters	6"
Armrests	Adjustable
Legrests	Swing-away
Seat Width	12" to 22"
Seat Depth	12" to 22"
