VIII. USE AND MAINTENANCE
6
9
2
6
7
1
4
3
5
8

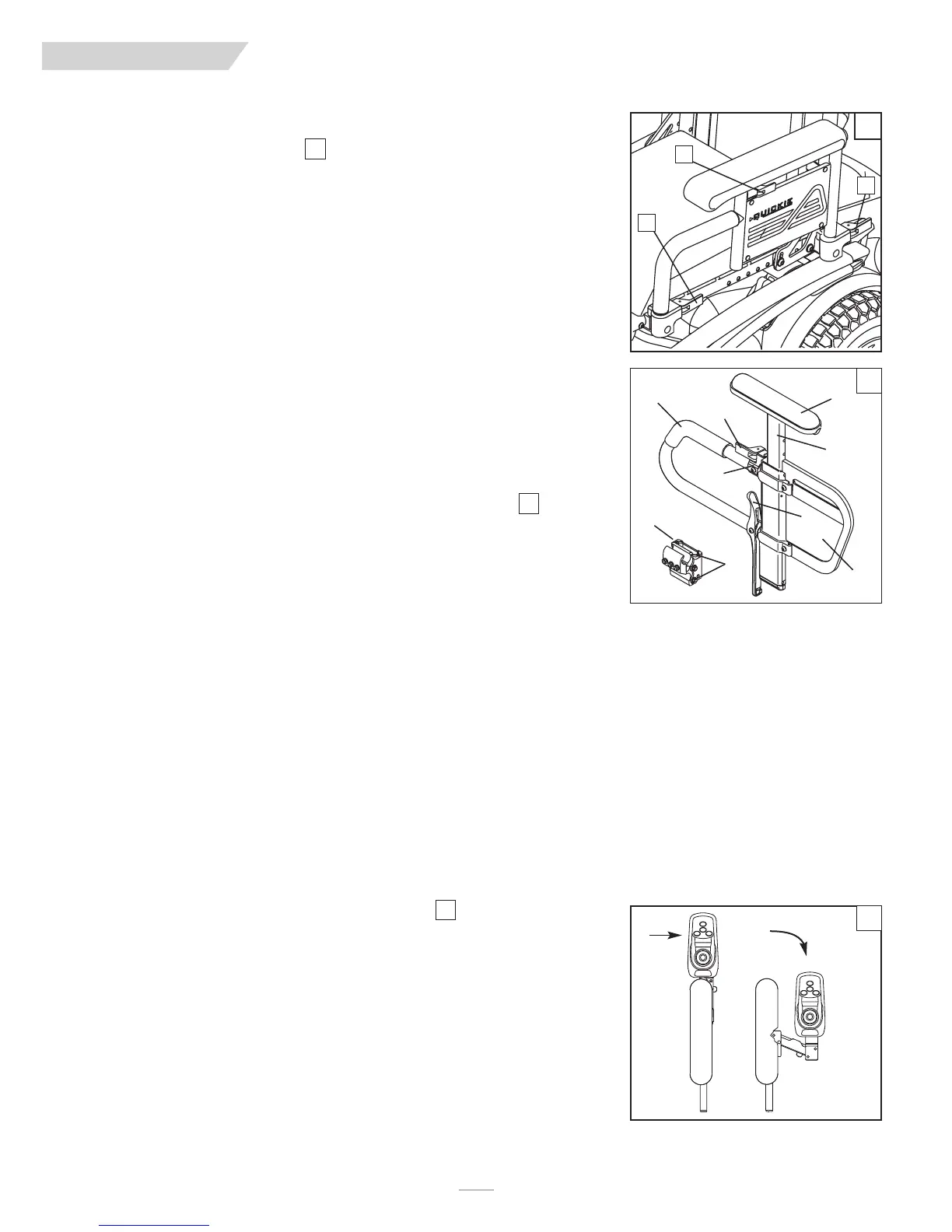

Height-Adjustable Armrest Key
1. Inner Arm Post
2. Receiver
3. Release Lever, Locked Position
4. Armrest Pad
5. Transfer Bar
6. Side Panel
7. Tension Adjustment Set Screw
8. Arm Rest Release Lever
9. Receiver Adjustment Bolts
7
8
C
A
B
M. DUAL-POST HEIGHT-ADJUSTABLE ARMRESTS
(Optional)
FIXED HEIGHT STANDARD
The dual-post flip-back armrest can be used as either a flip-back armrest or a removable
armrest.
1. Installing Armrest
a. Insert front and rear posts into armrest receivers.
b. Engage levers (A and B) to secure armrest.
2. Set-up for Flip-back Operation
a. Disengage lever (A) so front post is able to come free.
b. Armrest now has the ability to be flipped back without removal.
3. Set-up for Removal
a. Disengage levers (A and B) so front and rear posts are able to come free.
b. Armrest can now be easily removed for transferring.
4. Height-Adjustment (option)
a. Release the upper securing lever (C).
b. Set at desired height
c. Return securing lever to locked position.
d. Move armrest up or down to allow armrest to snap into place
N. SINGLE POST HEIGHT-ADJUSTABLE ARMRESTS
(optional)
1. Installation
a. Slide the outer armpost into the receiver mounted to the wheel chair frame.
b. The armrest will automatically lock into place.
2. Height Adjustment
a. Rotate release lever to stop.
b. Slide armrest pad up or down to desired height.
c. Return lever to locked position.
d. Push arm pad until upper armpost locks firmly into place.
3. Removing Armrest
a. Rotate release lever and remove the armrest.
4. Replacing Armrest
a. Slide armrest back into receiver.
b. Return release lever to locked position against armpost.
O. JOYSTICK RETRACTABLE MOUNT
(Optional)
The joystick or Enhanced Display is mounted with a mechanism which allows the control to
be locked in a forward or retracted position using magnets.
Adjustment
a. To retract the joystick, push outward on the inside of joystick.
b. Push the joystick away from front of armrest until it locks into retracted position.
c. To return to forward position, push the joystick forward until it locks into place.
6
7
8

Quickie QM-710 Specifications

General

Type	Power Wheelchair
Drive	Mid-Wheel Drive
Weight Capacity	300 lbs
Maximum Speed	6 mph
Ground Clearance	3"
Drive Wheel Size	14"
Battery	Group 24
Front Casters	6"
Armrests	Adjustable
Legrests	Swing-away
Seat Width	12" to 22"
Seat Depth	12" to 22"
