Quickie QM-710 User Manual

118444 Rev. D
18
QM-710/71 5HD/72 0

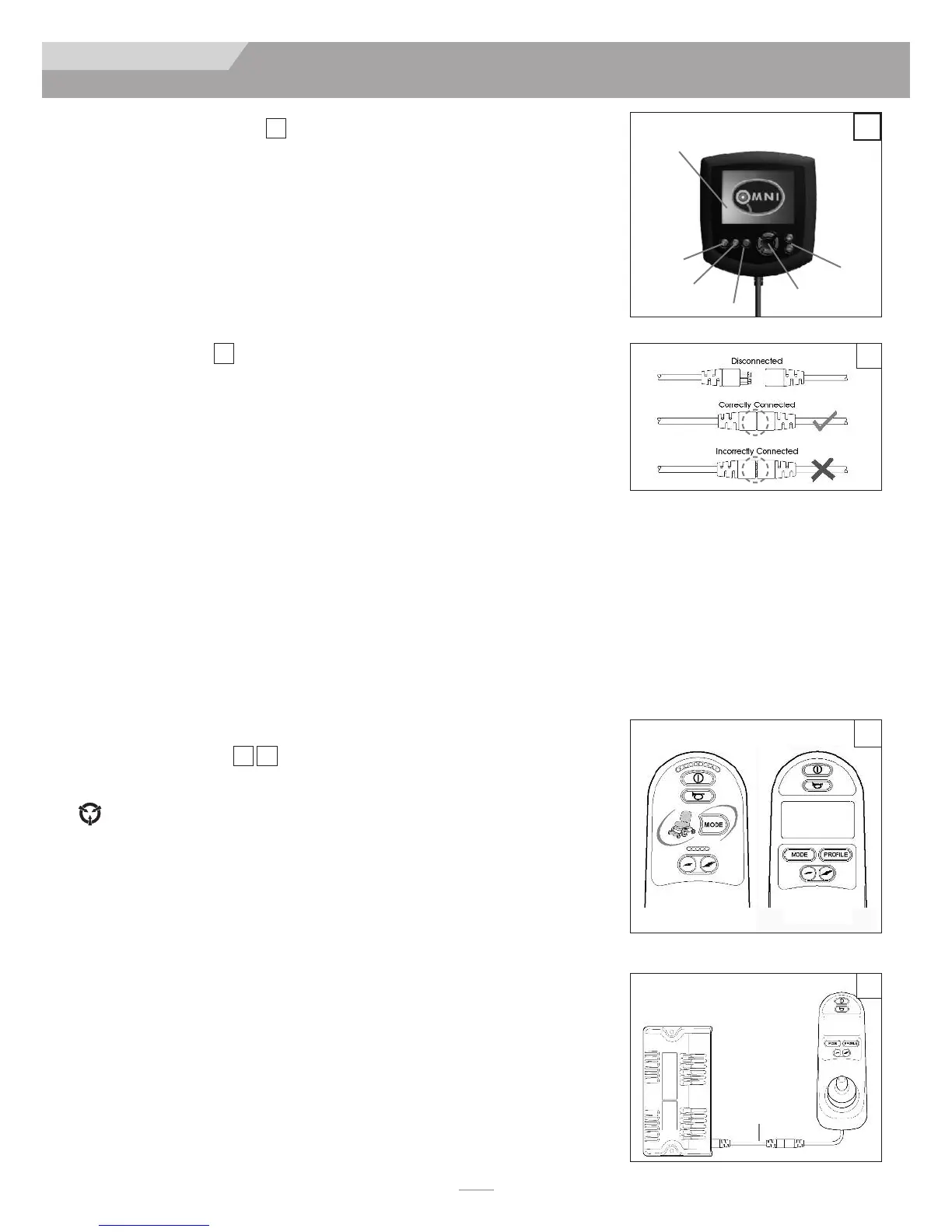

A. OMNI INPUT DISPLAY
The Omni is a universal specialty controls interface that accepts signals from many different
types of SIDs and translates them into commands compatible with the PG Drives Technology
RNET control system.
B. CONNECTORS
Mating Connectors
To connect the communication cables:
Holding the connector housing, firmly push the connector into its mate until you can
no longer see the yellow plastic. The connectors are secured using a friction system.
To disconnect the communication cables:
Holding the connector housing firmly, pull the connectors apart.
NOTE
– Do not hold or pull on the cable. Always grip the connector when connecting and discon-
necting.
When the control system is first switched on after a connection, or system component
change, the timer will be displayed while the system checks itself. Then the re-start icon will
be displayed. Switch the control system off and on again to operate,
C. R-NET JOYSTICKS
Controls: LED, and Color Display Joystick
14
15
1716
IX. CONTROLS, JOYSTICKS & OPERATING GUIDES
Power
Module
LCD
screen
Profile
+/-
Navigation
Mode
On/Off
JOYSTICK
communication
cable
Omni Display
17
15
LED
Color
Joysticks
16
14

Quickie QM-710 Specifications

General

Type	Power Wheelchair
Drive	Mid-Wheel Drive
Weight Capacity	300 lbs
Maximum Speed	6 mph
Ground Clearance	3"
Drive Wheel Size	14"
Battery	Group 24
Front Casters	6"
Armrests	Adjustable
Legrests	Swing-away
Seat Width	12" to 22"
Seat Depth	12" to 22"
