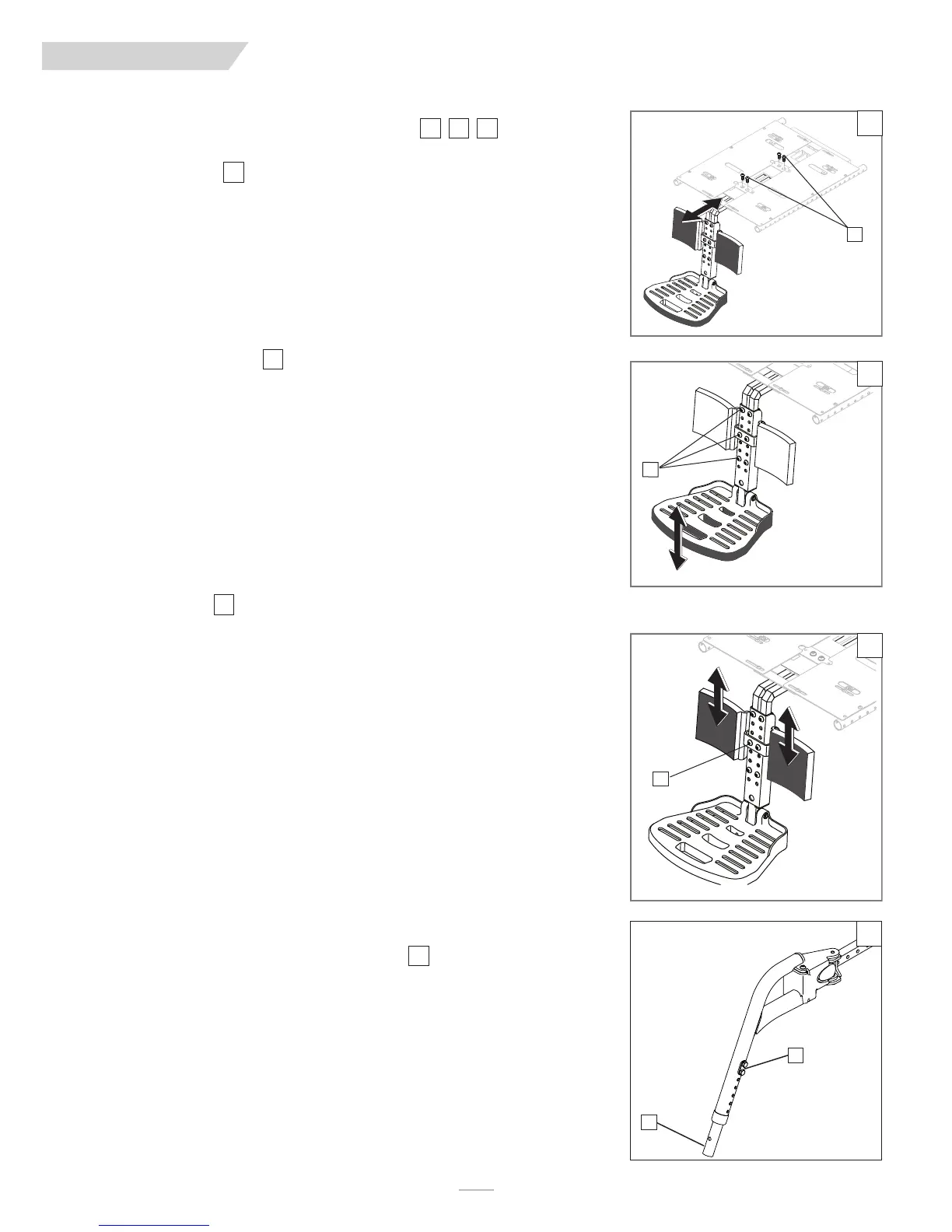

E. CENTER MOUNT HANGER ADJUSTMENT
(ASAP Seating only)
1. Removing the assembly
a. Remove the four screws (A) and slide the footrest assembly out of the receiver.
2. Footplate Height Adjustment
a. Remove the six securing screws (B).
b. Move the footplate up or down to the desired height.
c. Re-install screws (B) through adjusted holes and tighten the hardware.
3. Calf pad Adjustment
a. Remove the two securing screws (C).
b. Move Calf Pads to desired height.
c. Re-install screws (C) through adjusted holes.
F. SWING-AWAY FOOTREST ADJUSTMENT
Footplate Height Adjustment
a. Remove the hardware(D) from the hanger frame tube.
b. Move the footrest extension tube(E) up or down to set the correct height, and line up
the adjusted holes.
c. Insert the hardware to hold the tube in place.
d. Re-tighten all hardware(D)
