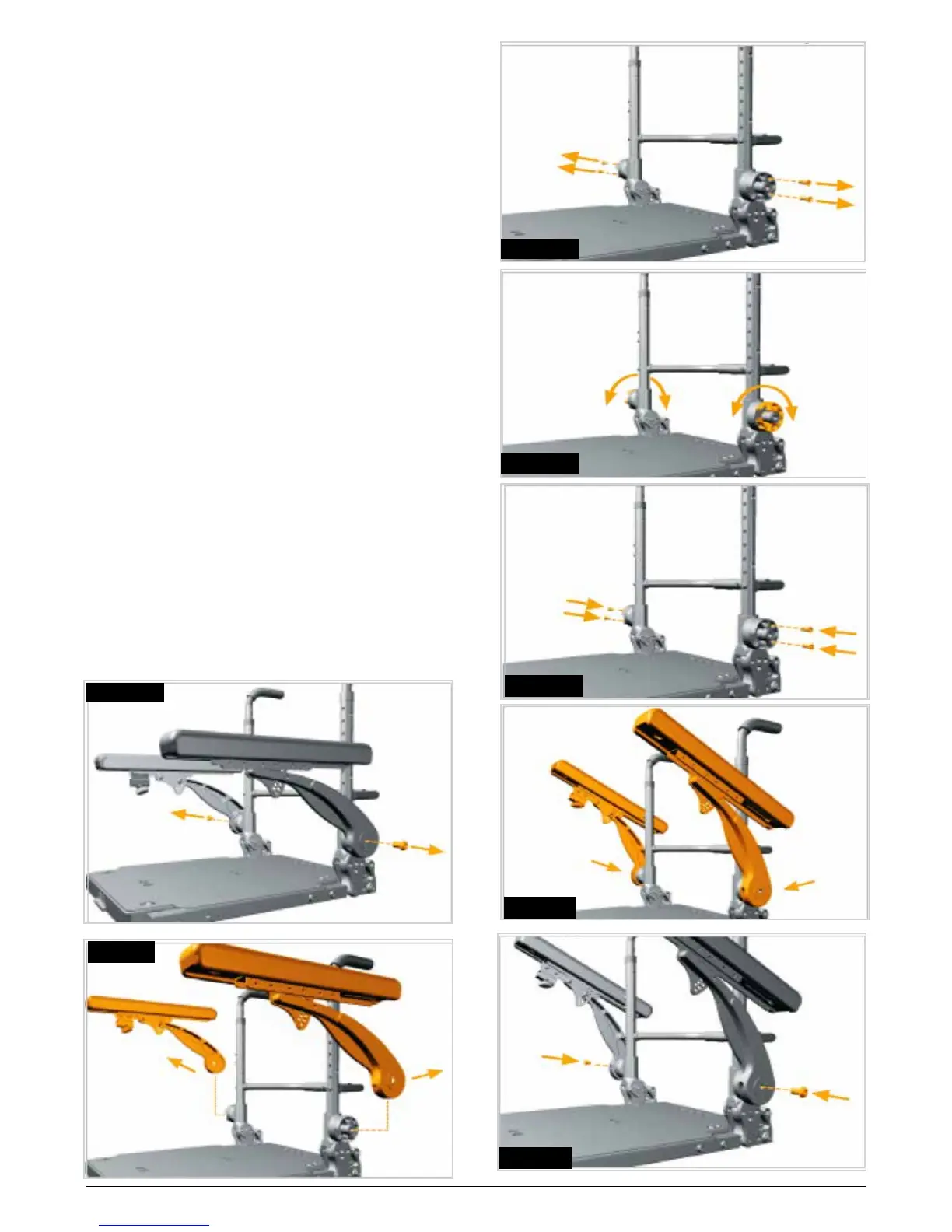

2.Basic coarse adjustment.
PART 1
1. To achieve more than one inch of adjustment, remove
the 6mm armrest rotation bolts on both sides of the
seat, (Fig.5.23).
2. Remove both armrest assemblies. (Fig.5.24)
3. Remove both sets of 4mm armrest adjustment ring
bolts.(Fig.5.25)
4. Rotate the armrest height adjustment rings, (Fig.5.26)
to match the desired height designated in the
Configuration Chart, (Fig.5.35), on page 25.
5. Replace both sets of armrest adjustment ring bolts
according to the configuration chart. (Fig.5.27)
6. Use 10 N/m or 88.5in/lb of torque.
7. Replace both armrest assemblies. (Fig.5.28)
8. Replace the armrest pivot bolts on both sides of the
seat, but do not tighten completely. (Fig.5.29)
Fig. 5.23
Fig. 5.24
Fig. 5.25
Fig. 5.26
Fig. 5.27
Fig. 5.28
Fig. 5.29
