PART 2

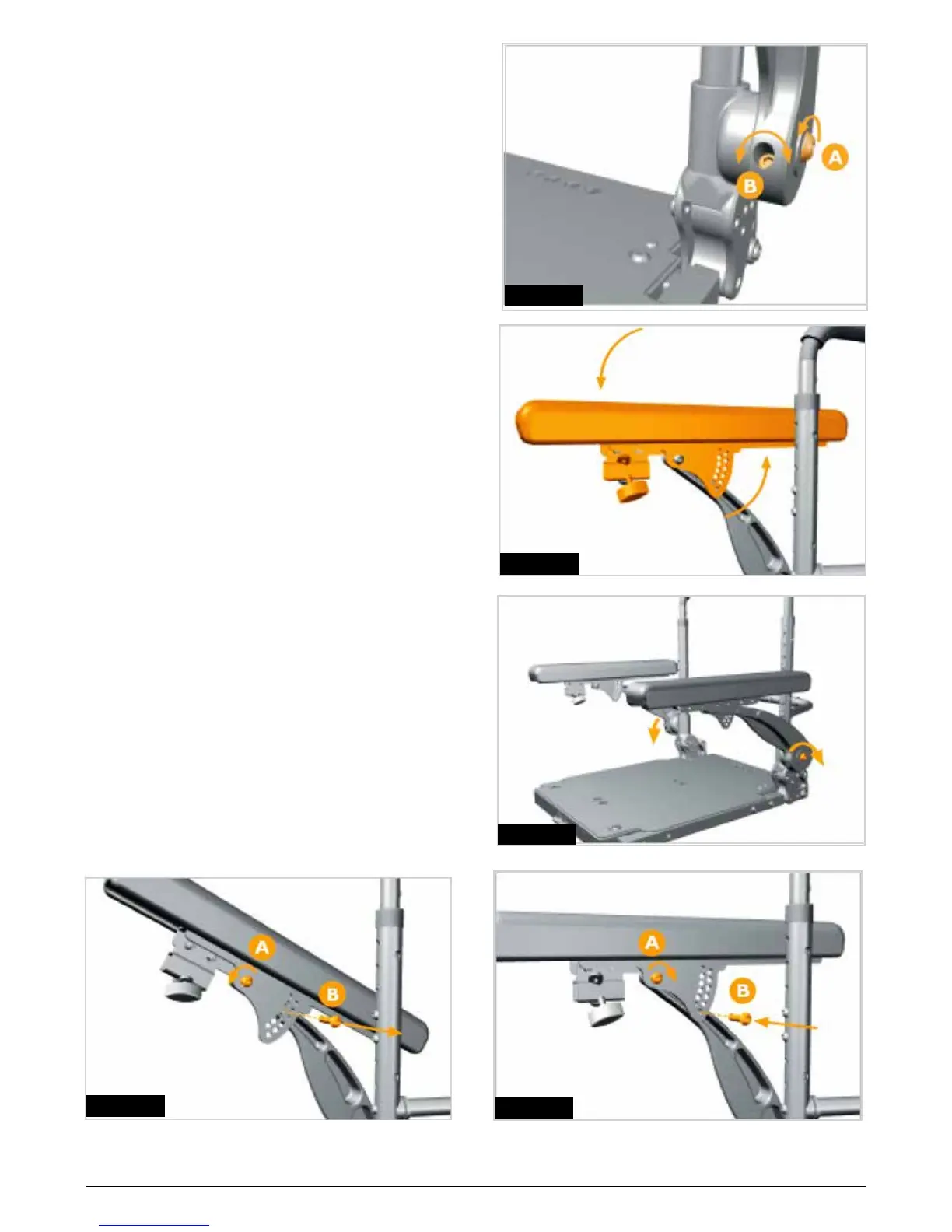

1. Loosen the 4mm arm pad angle pivot bolts (A) on both
armrests. Remove the 4mm angle index bolts (B) on
both armrests, (Fig.5.30).
2. Use the 5mm fine height adjustment screw (B) to
finish fine tuning the height. Turn counter-clockwise to
increase height or clockwise to lower, (Fig.5.31).
3. Tilt both arm pads down, (or up in the case of a lowered
armrest), until the arm pads are in the preferred angle.
Check to see if the height is correct, (Fig.5.32).
4. Refer to 2 for fine adjustment.
5. Retighten both armrest pivot bolts, (Fig.5.33).
6. Use 20 N/m or 177 in/lb of torque.
7. Retighten both arm pad angle pivot bolts “A”. Replace
both arm pad angle index bolts “B”, (Fig.5.34).
8. Use 10 N/m or 88.5 in/lb of torque for both sets of
bolts.
Fig. 5.30
Fig. 5.31
Fig. 5.32
Fig. 5.33
Fig. 5.34
