Quickie Salsa R2 - 5.8.3 Standard Arm Pad Position Adjustment

28 SALSAR
2
/ SALSA M
2
Rev.1.0

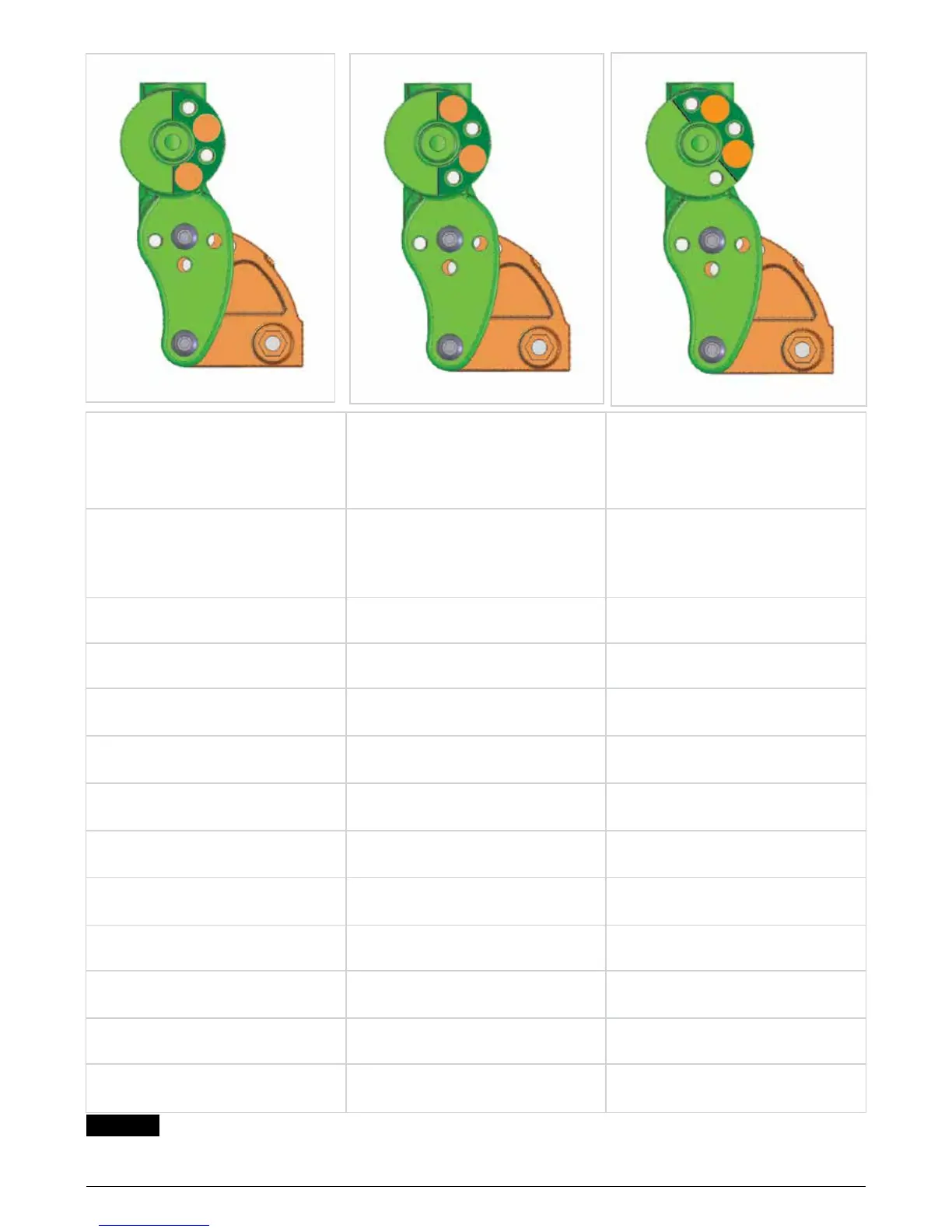

POSITION A
POSITION B
POSITION C
STANDARD
CONFIGURATION
CHART
BACKREST ANGLE
(Degrees)
ARMREST HEIGHT
(mm)
SETTING RING POSITION
-4 305 - 254 A
-4 252 - 229 B
0 305 - 254 A
0 252 - 229 B
4 305 - 267 A
4 279 - 229 B
8 305 - 229 B
12 305 - 229 B
12 248 - 229 C
16 305 - 254 B
16 260 - 229 C
Fig. 5.35
A B C
