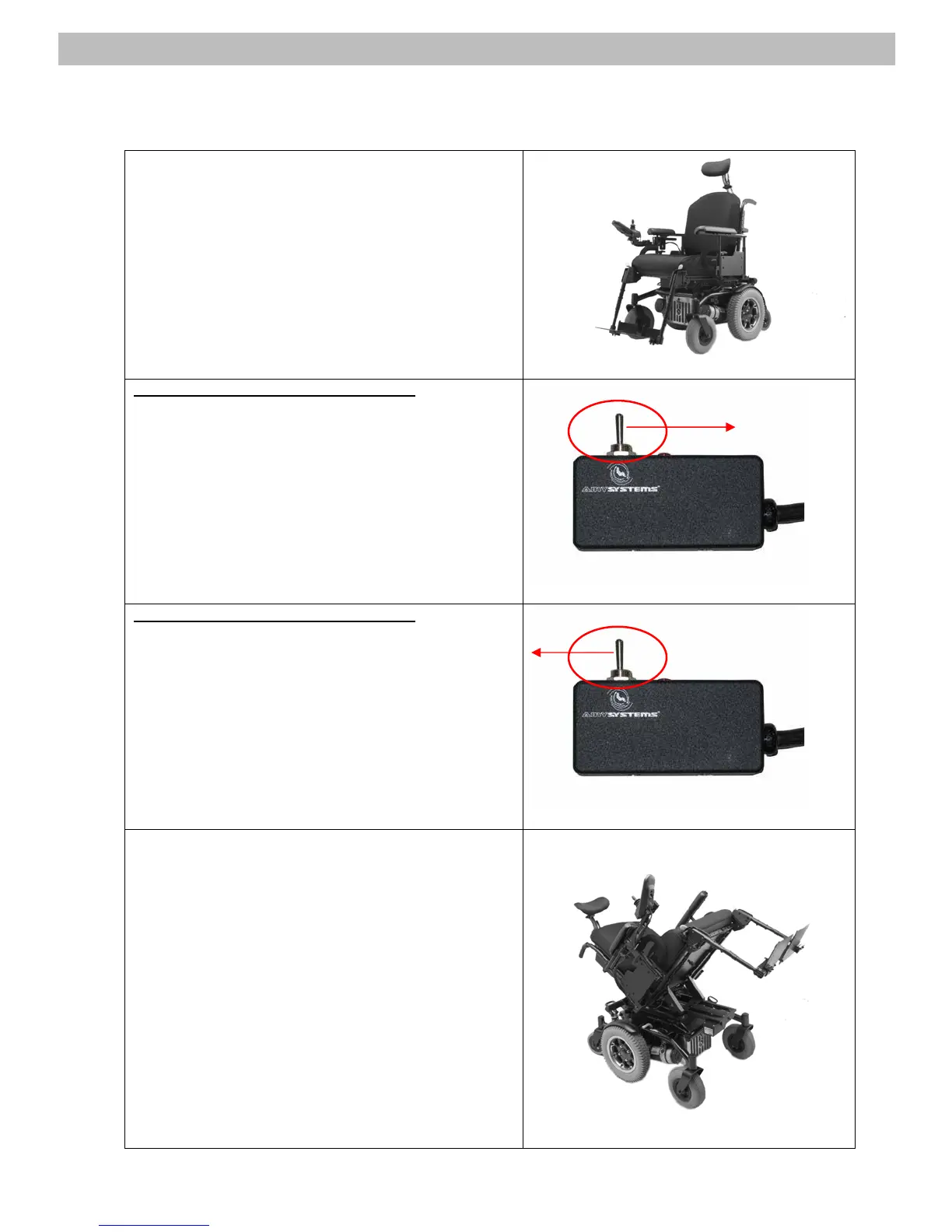

H. Power Tilt (Standard Operating Instructions)
1- 866-
WARNING!!!
Make sure the wheelchair is on a level surface before
proceeding with tilt mode.
SINGLE ACTUATOR TOGGLE SWITCH
Increasing Tilt Angle
Pull the toggle switch (located next to the wheelchair
joystick) backward toward the rear of the wheelchair until
the desired tilt angle is achieved, then release.
SINGLE ACTUATOR TOGGLE SWITCH
Decreasing Tilt Angle
To reverse the tilt angle direction. Release the toggle
switch to the neutral position for a minimum of 1 second
and push the toggle switch (located next to the wheelchair
joystick) forward toward the front of the wheelchair until
the desired tilt angle is achieved, then release.
Drive lock-Out
Is a safety feature designed to prevent the wheelchair
from being driven while in a tilt angle over 15 degrees
relative to the vertical position.
DANGER!!!
Never operate the wheelchair while in tilt mode over 15
degrees relative to the vertical position. If the drive lock-
out does not stop the wheelchair from operating when in a
tilt angle over 15 degrees, have the wheelchair or power
tilt system serviced by an authorized dealer or qualified
technician.
