C. ELEVATING LEGREST (OPTIONAL)
1. Installation
To install or remove Elevating Legrest (ELR) see instructions for
Swing-away Footrest installation.
D. CENTER MOUNT HANGER ADJUSTMENT
(ASAP Seating only)

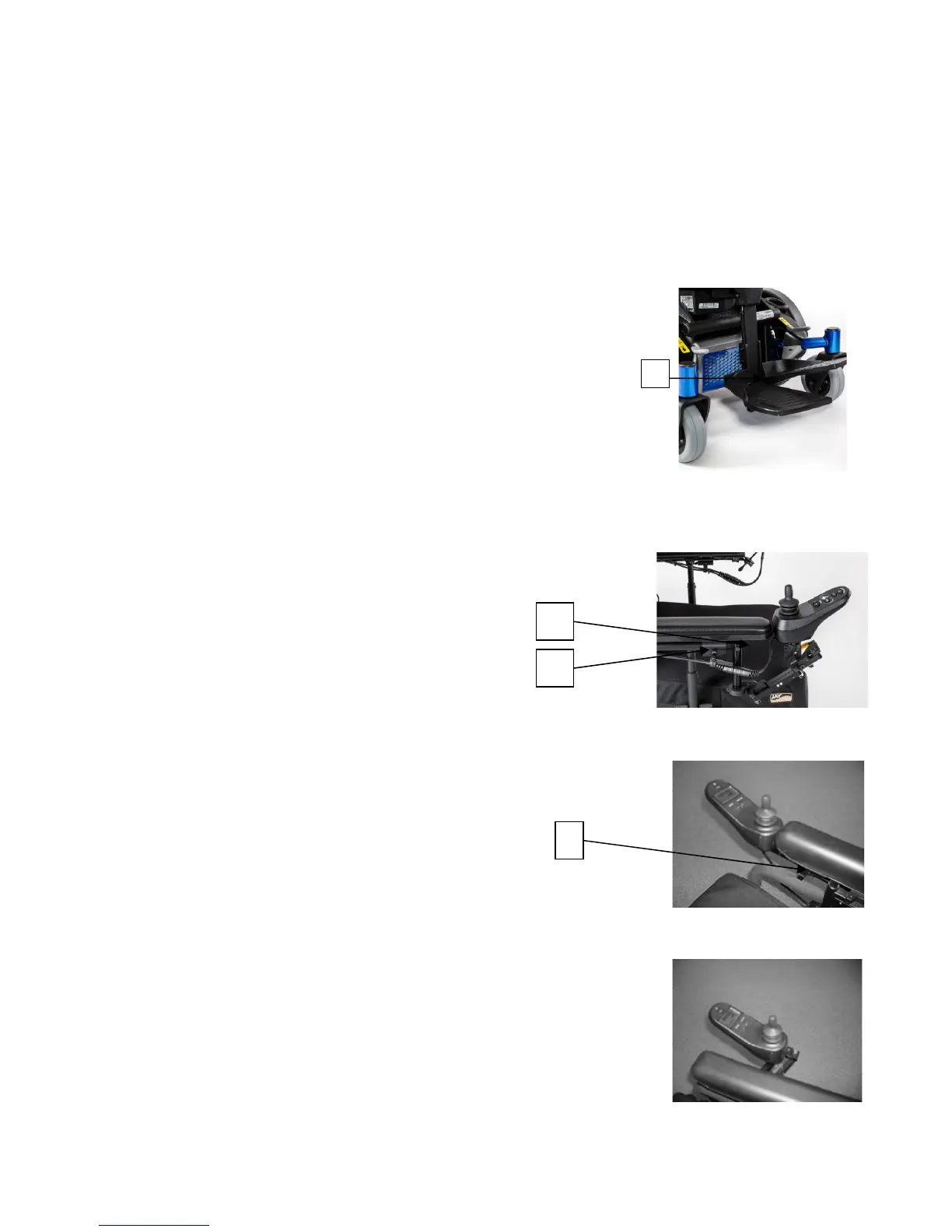

1. Height adjustment
a. Undo the two securing cap head screw(j).
b. Slide the footplate to desired height.
c. Re-install bolts (j) through.
2. Repeat operation on opposite side if needed
E. JOYSTICK
Please refer to the Penny & Gilles user’s manual provided with
the information package
F. TO ADJUST THE DEPTH OF THE JOYSTICK
1. Loosen the wing-nut (k).
2. Slide the mounting bracket (tube) (l) in or out until in desired
position.
3. Retighten the wing-nut (k)
G. TO USE THE SWING AWAY FUNCTION
1. Push to release the lever (m)
2. Continue pushing until the joystick bracket is fully retracted.
3. To bring back , pull the joystick rmly towards you until it gets
back in it’s locked position.
