Quickie Xplore 2 Owner’s Manual Rev. A 14

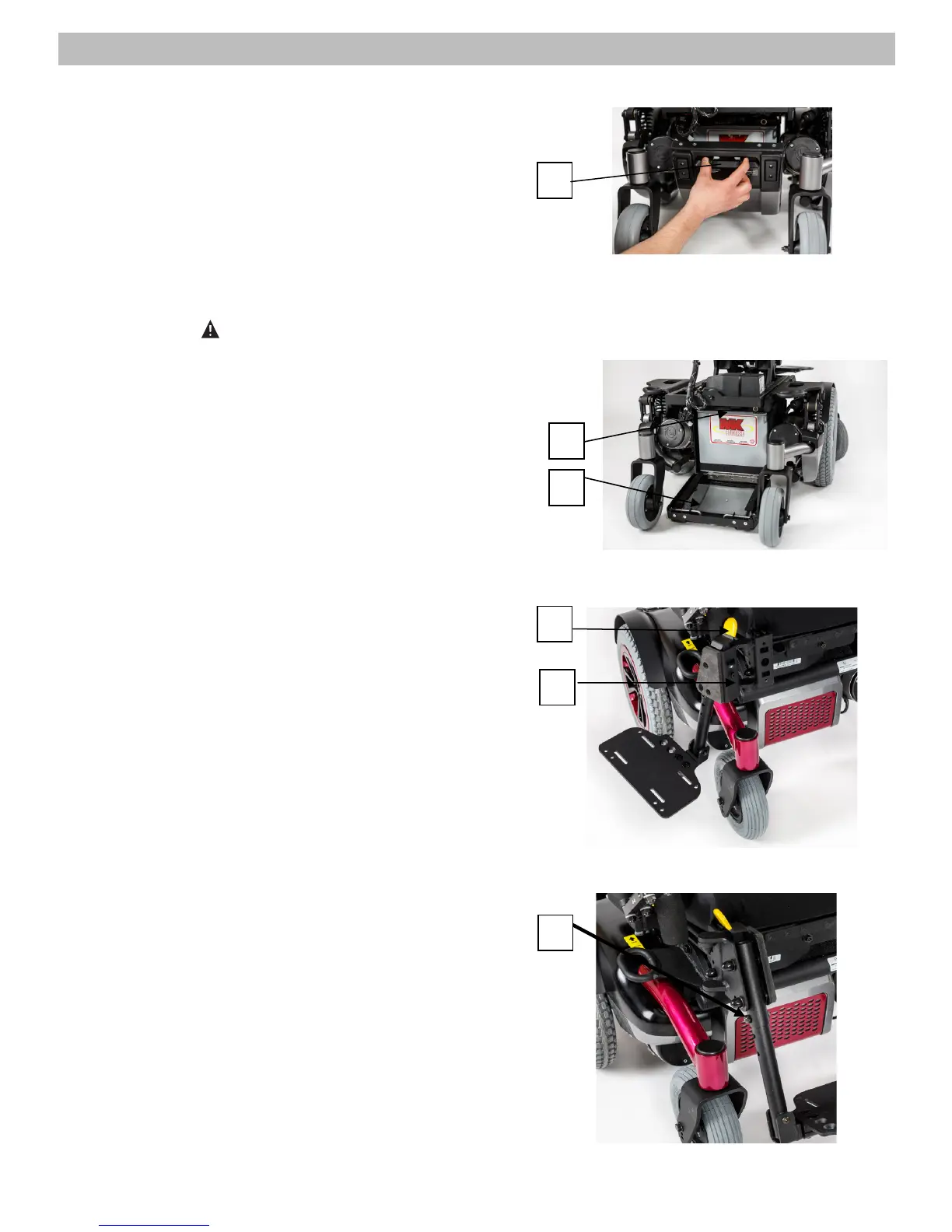

A.BATTERY REMOVAL
To remove the batteries for transporting or servicing: A
Remove Batteries
a. Pull triggers together (a).
b. Drop panel (b).
c. Carefully pull battery pack until cable connection is accessible
(c).
d. Disconnect and pull tray to full deployment to remove the
batteries.
e. Lift the battery from the compartment using the battery carrying
straps.
f. Repeat operation in reversed steps to put the batteries back in.
WARNING
Batteries may weigh up to 55 lbs. (25 kg). Care must be taken to
avoid injury when lifting.
B. SWING-AWAY FOOTRESTS
1. Installation
a. Place swing-away pivot pin (d) into the locating hole on top of
the hanger mount with the footrest facing outward from frame.
Rotate the footrest inward until latch plate locks (e) into place
on locking bolt.
2. Removal
a. To remove footrest, press quick-release lever (e).
b. Rotate footrest outward and lift.
3. Height Adjustment
a. Remove both bolts (f) in the hanger frame tube.
b. Reposition the footrest.
c. Re-tighten all bolts (f).
VIII. SET-UP, ADJUSTMENT AND USE
a
b
c
e
d
f
