QuickLabel Systems pronto! 482 User Manual

8-42 Accessories
Overview Signals

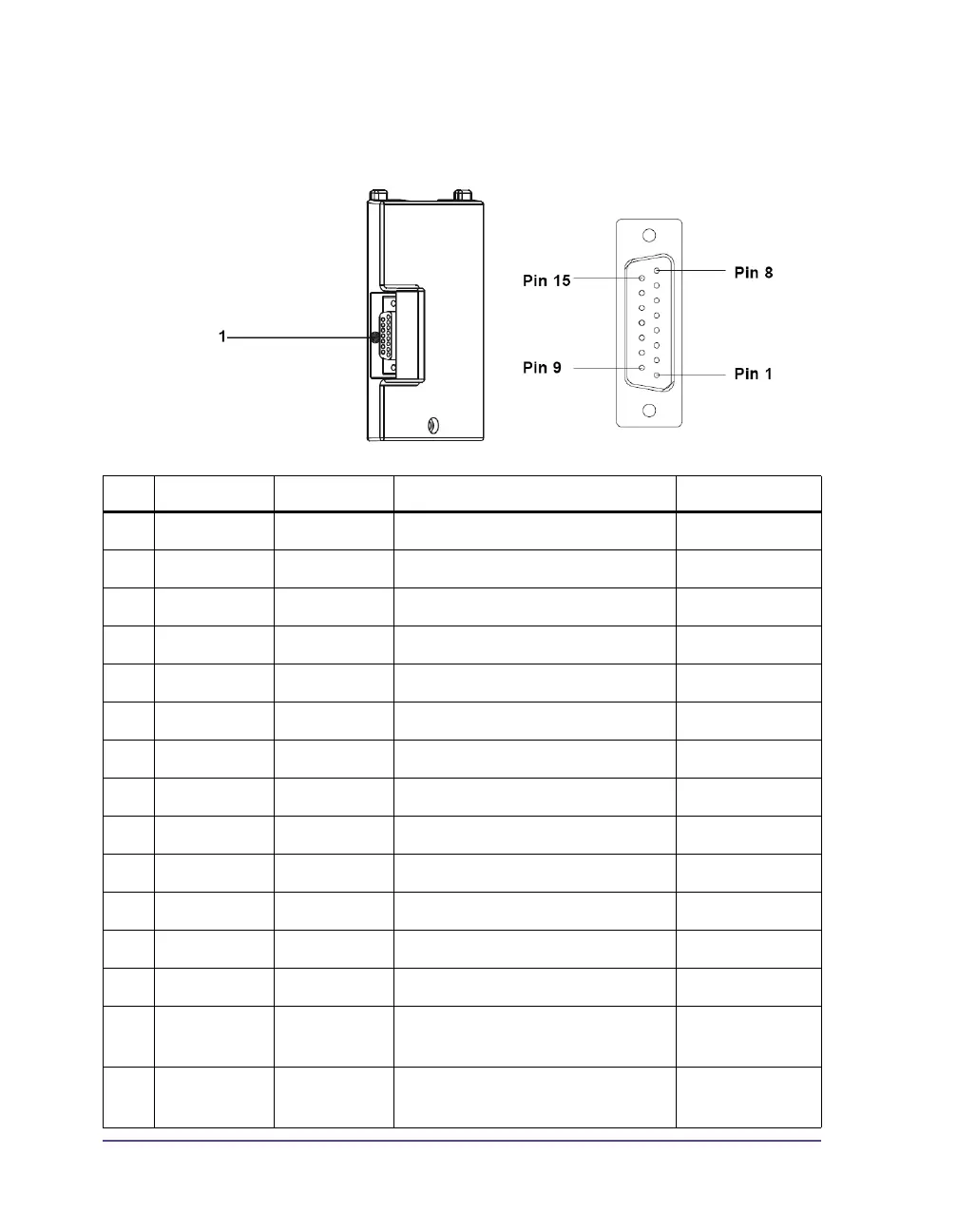

For use in a network environment or with a switch, the Present Sensor PS6 is
equipped with a peripheral interface to allow control of the dispensing
process. The interface has a 15 pin SUB-D connector (1).
Pin Signal Direction System Function User Function
1 XSTART Input Start signal
2 XFEH Input External Error
3
4 XESP Output Label in peel position Control bit 3
5 XEDG Output No existing print job Control bit 1
6 XDNB Output Printer is not ready Control bit 2
7 XEDST Output Print of a label has started Control bit 0
8 GND Ground (0V)
9 RXSTART (Input) Start signal (revers line)
10 RXFEH (Input) External error (revers line)
11
12 GND Ground (0V)
13 STA Input Start signal is active
14 RÜL Output Revers line (for all output
signals)
15 24P (Output) Operating voltage +24V, Si T
100mA
