Quicksilver 605 Pilothouse User Manual

Quicksilver 605PH— Electrical Systems
36

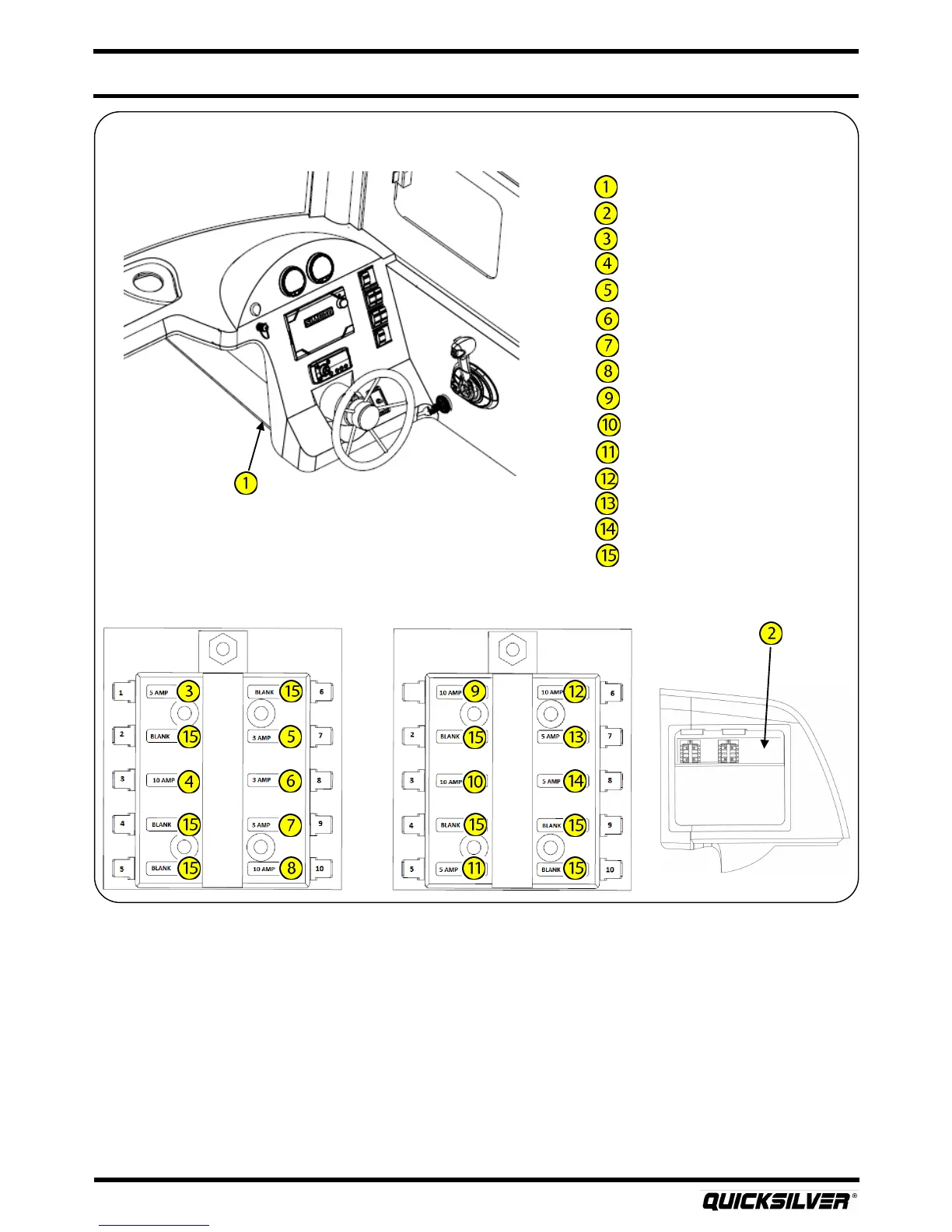

Helm fuse panel
Dash closeout panel
Helm fuse panel
Electronics — 5 Amp
Starboard Wiper — 10 Amp
Navigaon lights — 3 Amp
Forward bilge — 3 Amp
A bilge — 3 Amp
12V outlet — 10 Amp
Stereo — 10 Amp
Refrigerator — 10 Amp
Horn — 5 Amp
Spare — 10 Amp
Spare — 5 Amp
Lighng — 5 Amp
Blank
6. Electrical Schemacs
This owner’s manual contains electrical schemacs and wiring harness illustraons for your boat.
These electrical schemacs were generated by the Electrical Engineering Department for technical
reference and service technicians. Quicksilver® does not recommend that you aempt to work on the
boat’s electrical system yourself. Instead, we recommend that you take your boat to your local
authorized Quicksilver® dealer for service. Quicksilver® reserves the right to change or update the
electrical system on any model at any me without noce to the consumer and is not obligated to
make any updates to units built prior to the change.
Helm fuse panel 1 Helm fuse panel 2
