QR 310 Quincy Compressor

50214-105, March 2005 28 3501 Wismann Lane, Quincy IL - 62305-3116

0-200 PSI 201-500 PSI

1 1 110844 110844-001 pilot valve assembly

1.1 1 110832-140 110832-000 pilot valve

1.2 1 2616 2616 tube fitting, straight male connector, 3/8 tube x 1/4 npt

1.3 1 6317 6317 mounting stud

1.4 4 160047-J05 160047-J05 set screw, 1/4-28 unf x .38, grade 5

1.5 1 2719 2719 pipe plug, 1/4 npt, hex socket

2 4 ft. 110515-025 110515-025 copper tube, 1/4 o.d.

3 1 1665 1665 tube fitting, male branch tee, 1/4 tube x 1/4 tube x 1/8 npt

4 1 1642 1642 tube fitting, 90° male elbow, 1/4 tube x 1/8 npt

5 1 2708 2708 tube fitting, 90° male elbow, 1/4 tube x 1/4 npt

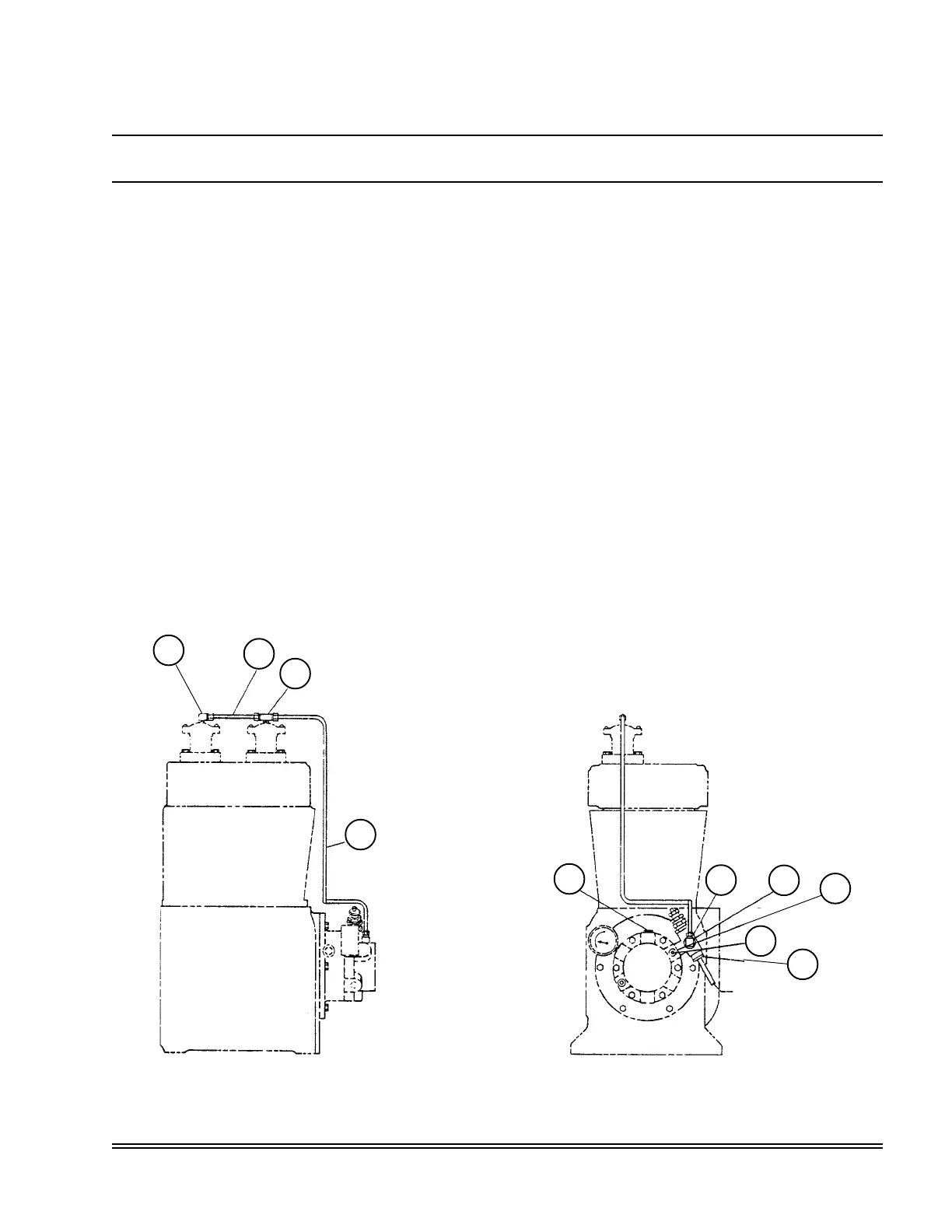

CONTROL GROUP 110857 & 110857-001CONTROL GROUP 110857 & 110857-001

CONTROL GROUP 110857 & 110857-001

(control version S)

ItemItem

Item

PartPart

Part

PartPart

Part

NumberNumber

Number

Qty.Qty.

Qty.

NumberNumber

Number

NumberNumber

Number

DescriptionDescription

Description

* See page 31 for optional pilot valves that must be used with respective pressure ranges.

1.5

1.1

1.4

1.3

1.2

3/8 o.d. tube

from receiver
