Quincy Compressor 310 - Version LS

QR 310 Quincy Compressor
50214-105, March 2005 29 3501 Wismann Lane, Quincy IL - 62305-3116

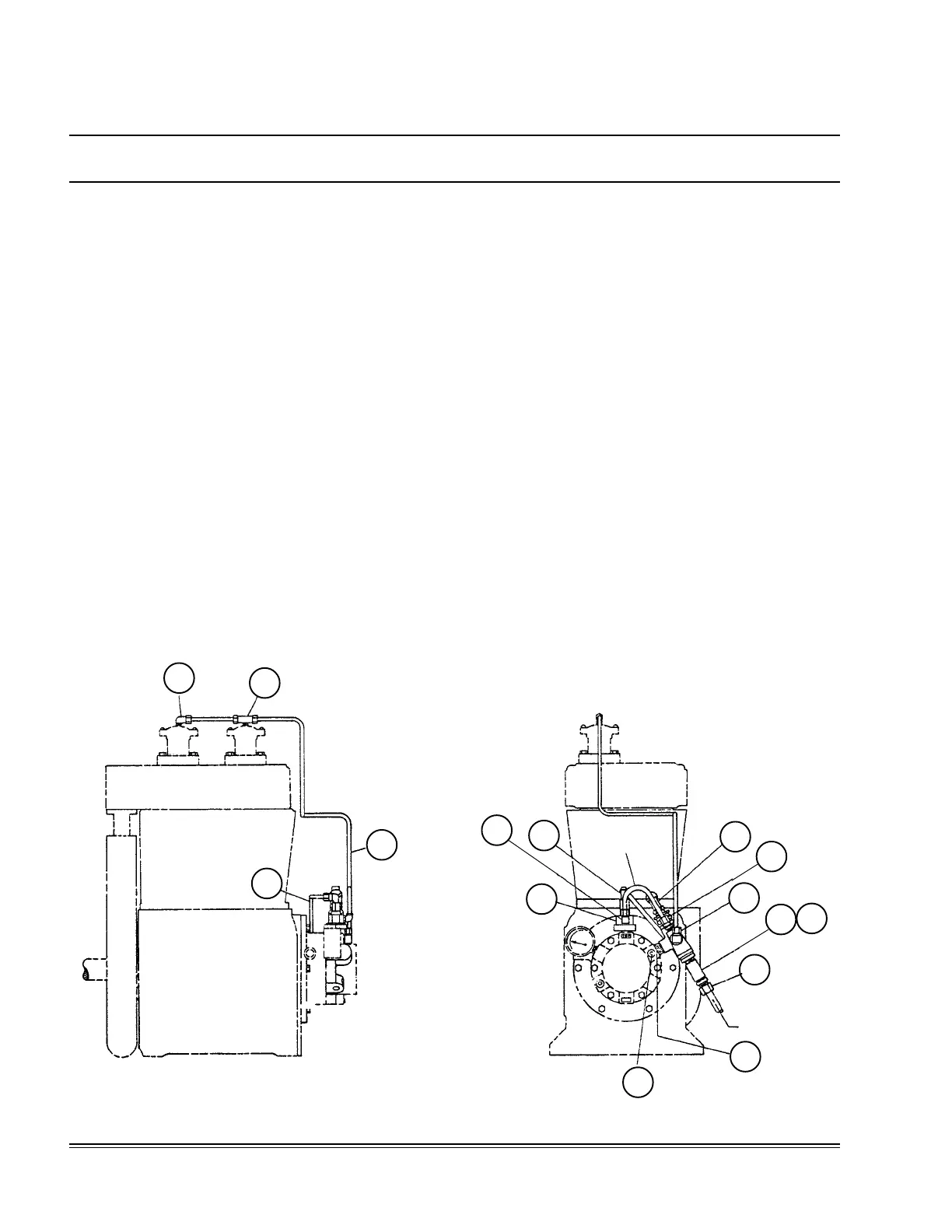

CONTROL GROUP 110858 & 110858-001CONTROL GROUP 110858 & 110858-001
CONTROL GROUP 110858 & 110858-001CONTROL GROUP 110858 & 110858-001
CONTROL GROUP 110858 & 110858-001
(control version LS)
0-200 PSI 201-500 PSI
1 1 110845 110845-001 pilot valve assembly
1.1 1 111422-175 111422-999 pilot valve
1.2 1 110827-001 110827-002 hydraulic unloader assembly
1.3 1 6317 6317 mounting stud
1.4 1 160047-J05 160047-J05 set screw, 1/4-28 unf x .38, grade 5
1.5 1 7361 7361 brass pipe tee, 1/4 npt x 1/4 npt x 1/4 npt
1.6 2 1642 1642 tube fitting, 90° male elbow, 1/4 tube x 1/8 npt
1.7 1 ft. 110515-025 110515-025 copper tube, 1/4 o.d.
1.8 1 1643 1643 tube fitting, straight male connector, 1/4 tube x 1/8 npt
1.9 1 2708 2708 tube fitting, 90° male elbow, 1/4 tube x 1/4 npt
1.10 1 2616 2616 tube fitting, straight male connector, 3/8 tube x 1/4 npt
2 4 ft. 110515-025 110515-025 copper tube, 1/4 o.d.
3 1 1665 1665 tube fitting, male branch tee, 1/4 tube x 1/4 tube x 1/8 npt
4 1 1642 1642 tube fitting, 90° male elbow, 1/4 tube x 1/8 npt
5 1 2708 2708 tube fitting, 90° male elbow, 1/4 tube x 1/4 npt
113225 113225 Hydraulic Unloader Repair Kit
includes diaphragm, stem assembly, inlet filter & fitting assembly,
spring (0-200 PSI) and spring (201-500 PSI red color code)
1 1 110827-003 hydraulic unloader assembly (standard, 0-200 PSI)
1 1 110827-004 hydraulic unloader assembly (high pressure, 201-500 PSI)
ItemItem
ItemItem
Item
PartPart
PartPart
Part
PartPart
PartPart
Part
NumberNumber
NumberNumber
Number
Qty.Qty.
Qty.Qty.
Qty.
NumberNumber
NumberNumber
Number
NumberNumber
NumberNumber
Number
DescriptionDescription
DescriptionDescription
Description
Maintenance PartsMaintenance Parts
Maintenance PartsMaintenance Parts
Maintenance Parts
4
3
2
1.1
3/8 o.d. tube
from receiver
1.3
1.4
1.6
1.6
1.8
5
1.10
1.5
1.2
1.7
1.9
* See page 31 for optional pilot valves that must be used with respective pressure ranges.
Parts for use with diester or phosphate ester synthetic based lubricantsParts for use with diester or phosphate ester synthetic based lubricants
Parts for use with diester or phosphate ester synthetic based lubricantsParts for use with diester or phosphate ester synthetic based lubricants
Parts for use with diester or phosphate ester synthetic based lubricants
*
