Quincy Compressor 310 - Version LVD

QR 310 Quincy Compressor
50214-105, March 2005 30 3501 Wismann Lane, Quincy IL - 62305-3116

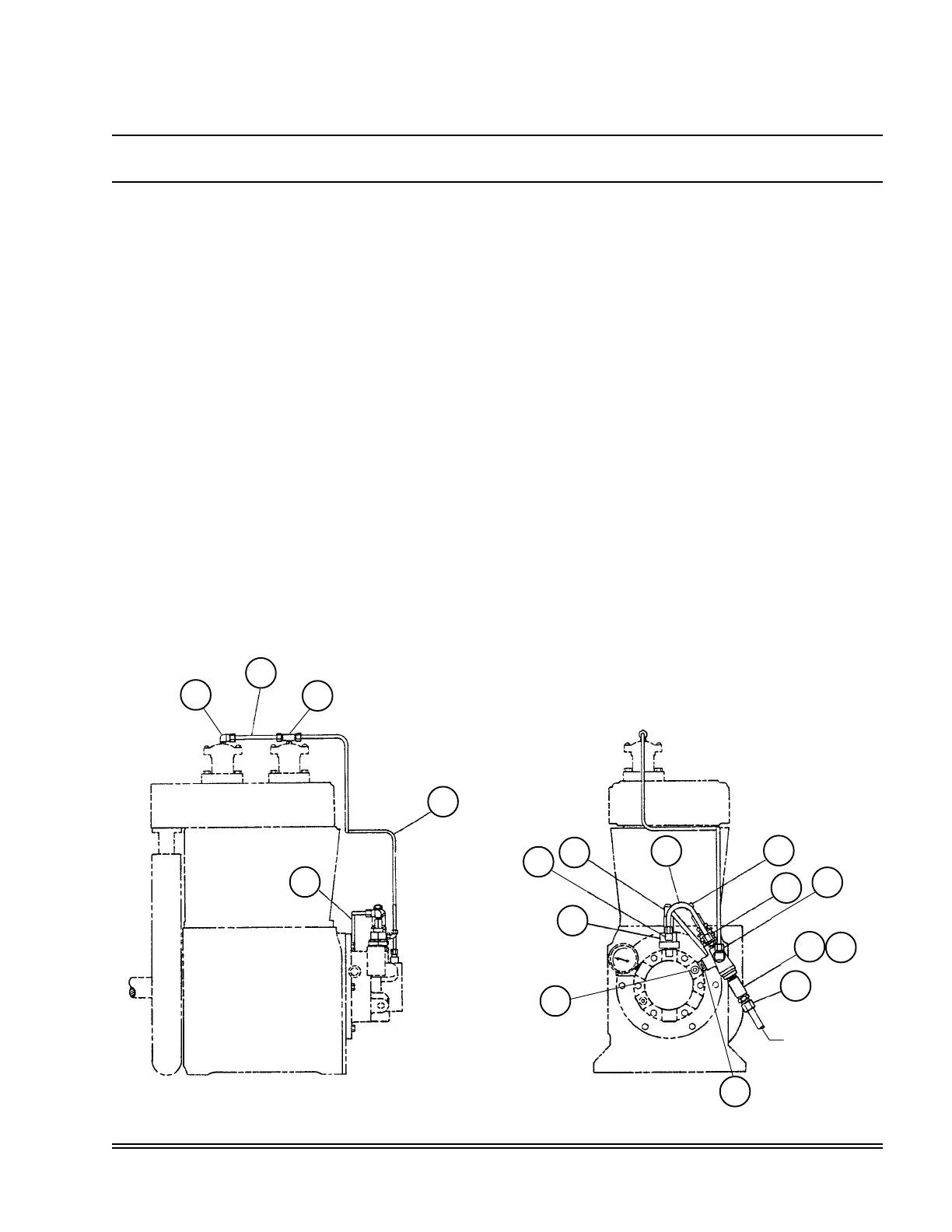

CONTROL GROUP 110859 & 110859-001CONTROL GROUP 110859 & 110859-001
CONTROL GROUP 110859 & 110859-001CONTROL GROUP 110859 & 110859-001
CONTROL GROUP 110859 & 110859-001
(control version LVD)
ItemItem
ItemItem
Item
PartPart
PartPart
Part
PartPart
PartPart
Part
NumberNumber
NumberNumber
Number
Qty.Qty.
Qty.Qty.
Qty.
NumberNumber
NumberNumber
Number
NumberNumber
NumberNumber
Number
DescriptionDescription
DescriptionDescription
Description
0-200 PSI 201-500 PSI
1 1 110846 110846-001 pilot vlave assembly
1.1 1 111423-140 111423-999 pilot valve
1.2 1 110827-001 110827-002 hydraulic unloader assembly
1.3 1 6317 6317 mounting stud
1.4 1 160047-J05 160047-J05 set screw, 1/4-28 unf x .38, grade 5
1.5 1 7361 7361 brass pipe tee, 1/4 npt x 1/4 npt x 1/4 npt
1.6 2 1642 1642 tube fitting, 90° male elbow, 1/4 tube x 1/8 npt
1.7 1 ft. 110515-025 110515-025 copper tube, 1/4 o.d.
1.8 1 1643 1643 tube fitting, straight male connector, 1/4 tube x 1/8 npt
1.9 1 2708 2708 tube fitting, 90° male elbow, 1/4 tube x 1/4 npt
1.10 1 2616 2616 tube fitting, straight male connector, 3/8 tube x 1/4 npt
2 4 ft. 110515-025 110515-025 copper tube, 1/4 o.d.
3 1 1665 1665 tube fitting, male branch tee, 1/4 tube x 1/4 tube x 1/8 npt
4 1 1642 1642 tube fitting, 90° male elbow, 1/4 tube x 1/8 npt
5 1 2708 2708 tube fitting, 90° male elbow, 1/4 tube x 1/4 npt
2
1.8
1.10
1.5
1.1
1.2
1.6
5
1.6
1.7
1.4
1.3
1.9
1.7
2
4
3
3/8 o.d. tube
from receiver
* See page 31 for optional pilot valves that must be used with respective pressure ranges.
*
