Air output is stopped, the compressor runs unloaded.
2.6 Electrical system
Electrical components
The electrical system is comprised of the following components:

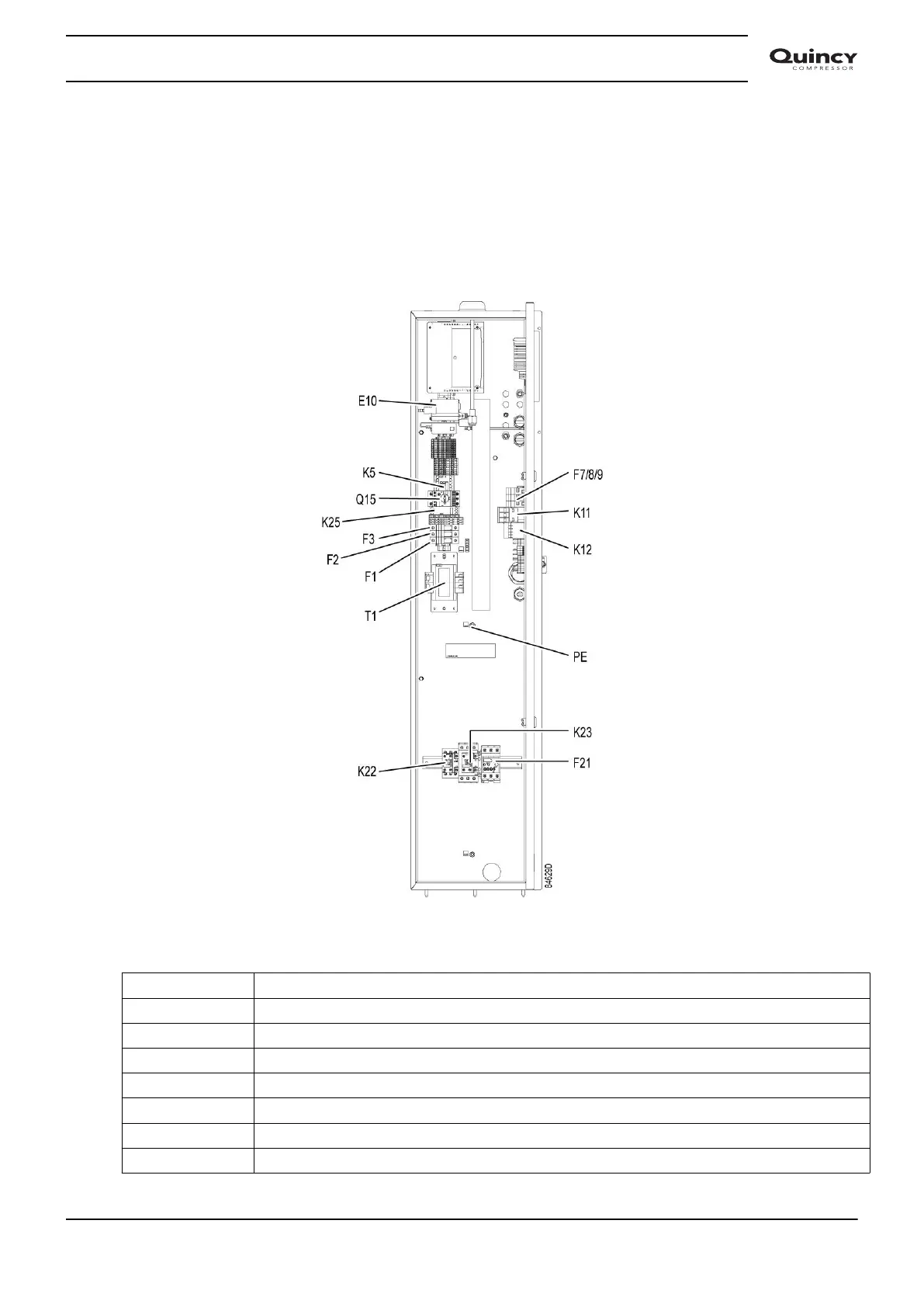

Typical example of electric cubicle
Reference Designation
F1 Fuse
F2 Fuse
F3 Fuse
F7/8/9 Fuses (only on units with integrated dryer)
F21 Overload relay, compressor motor
Q15 Circuit breaker, fan motor (on air-cooled compressors)
K5 Auxiliary relay
Instruction book
2920 7190 02 23
