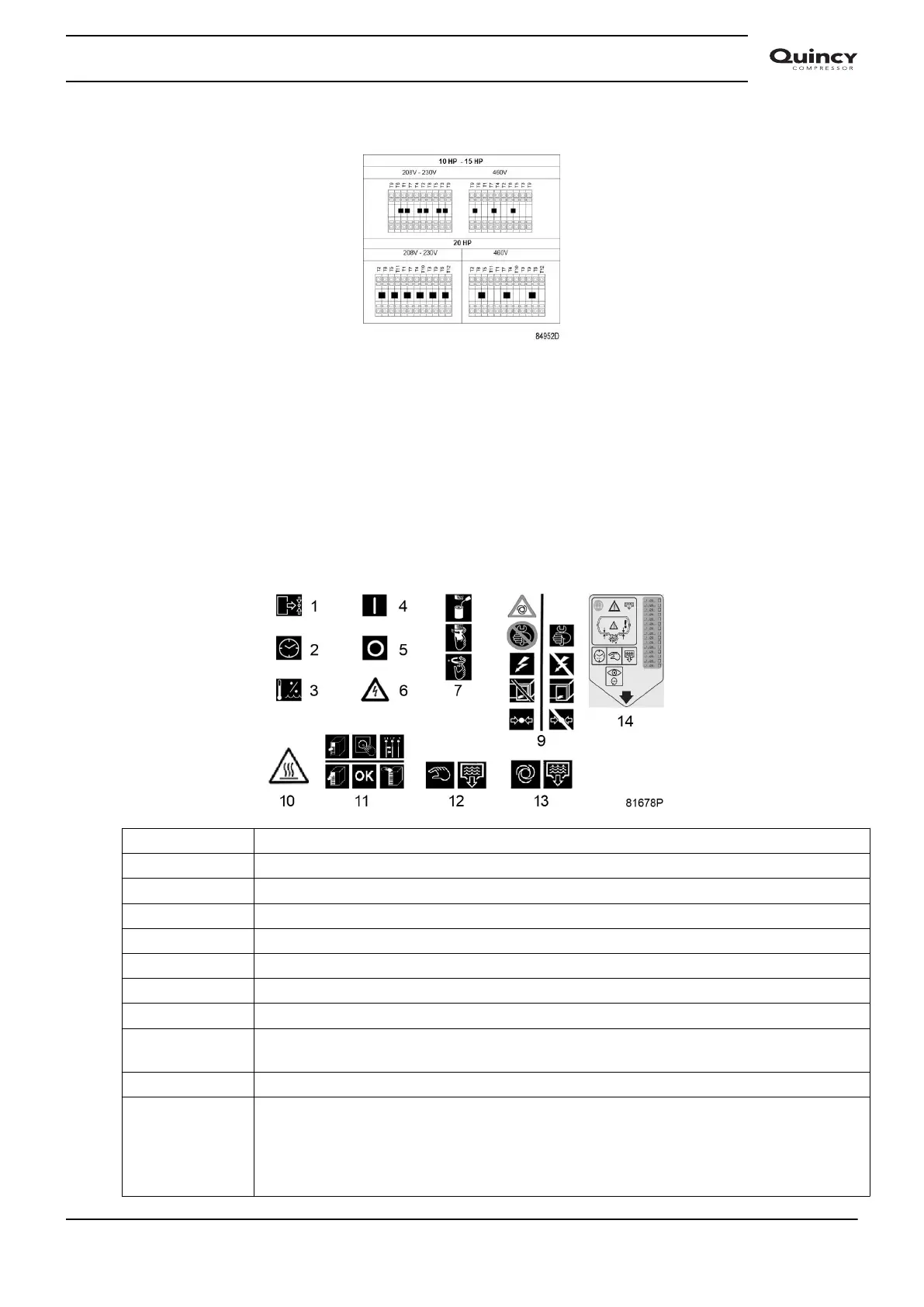

Factory standard connection is 230 V and can be changed to 208 V or 460 V.
Terminal bridges (1) can be removed using a pair of pliers.
Additional terminal bridges are provided with the compressor.
Voltage stickers:
Locate the yellow voltage labels provided with the compressor.
Replace the existing label with the appropriate voltage label (208 V, 230 V or 460 V).
4.4 Pictographs
Ref. Description
1 Working pressure
2 Hour meter
3 Dew point temperature
4 Start
5 Stop
6 Warning: voltage
7 Lightly oil gasket of oil filter, screw filter on and tighten by hand
9 Warning: switch off voltage and depressurise compressor before carrying out
maintenance work
10 Warning: hot parts
11 With all bodywork panels in place, push the start button.
• If the sheet is pulled downwards:
• Stop the compressor immediately and switch off the voltage.
• Reverse two incoming electric lines and repeat the previous step.
• If the sheet is blown away, the motor rotation direction is correct.
Instruction book
2920 7113 40 51
