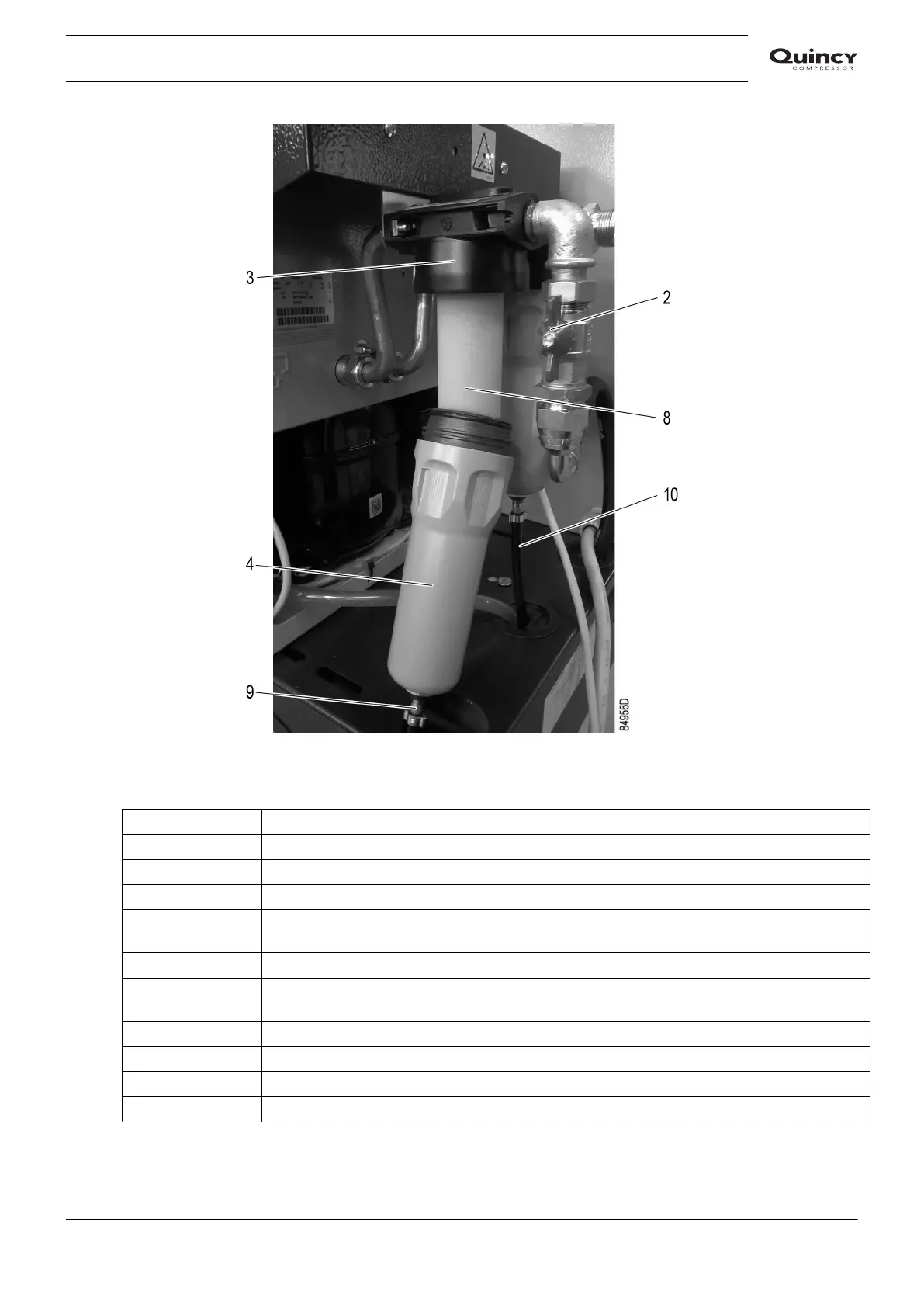

Line filters
Reference Designation
1 Air hose (from air receiver)
2 Ball valve (to isolate the filters and dryer)
3 Pre-filter (G type) head
4 G filter housing. This coarse filter cleans the incoming air to the refrigerant dryer from
dust and oil mist.
5 Post filter (C type) head
6 C filter housing. This fine filter is placed downstream the dryer to clean the air from
dust and oil mist.
7 Nipple (to connect to the air network)
8 Filter cartridge
9 Filter drain
10 Drain line
Instruction book
2920 7113 40 73
