Instruction book
2012 2039 28 36
Text on figures
Reference
Designation
(1)
Inputs
(2)
Compressor Outlet
(3)
Airend Outlet
(4)
Ambient Air (Variable Speed only)
(5)
Emergency Stop
(6)
Modify
(7)
Overload Fan motor
(8)
Remote pressure sensing
(9)
Remote Load/Unload
(10)
Surge Alarm (Variable Speed only)
(11)
Pressure setting selection
 The screen shows a list of all inputs with their corresponding icons and readings.
 If an input is in warning or shutdown, the original icon is replaced by the warning or shutdown icon
respectively (i.e. the Stop icon and the Warning icon in the screen shown above ).

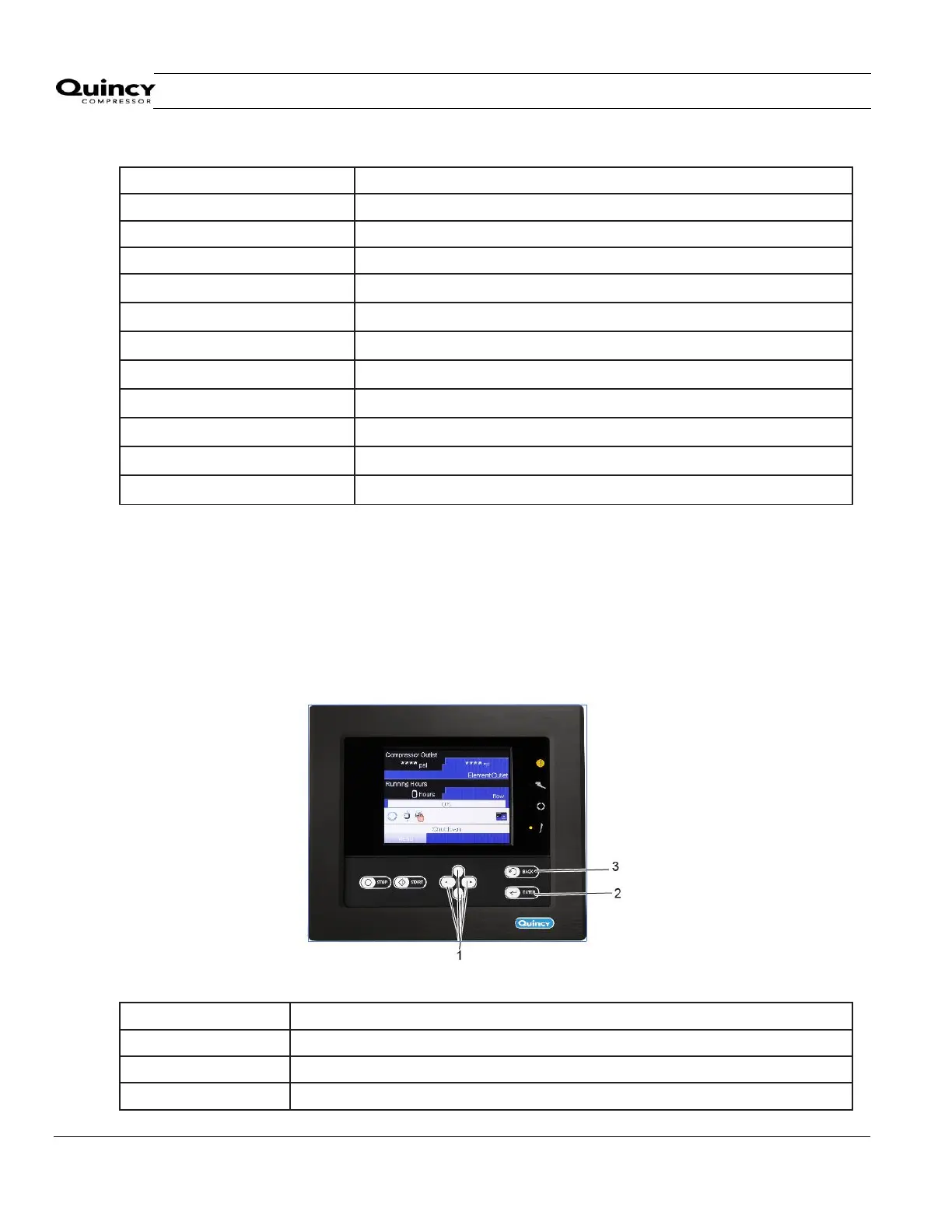

3.8 Outputs menu
Control panel
Text on figure
Reference
Designation
(1)
Scroll keys
(2)
Enter key
(3)
Back key
