Section VIII - Technical data
Quincy Compressor 37
• Readings on control panel
• Electric cable size
• Settings for overload relay and fuses
• Temperature protection and safety valve settings
• Reference conditions and limitations
• Compressor data

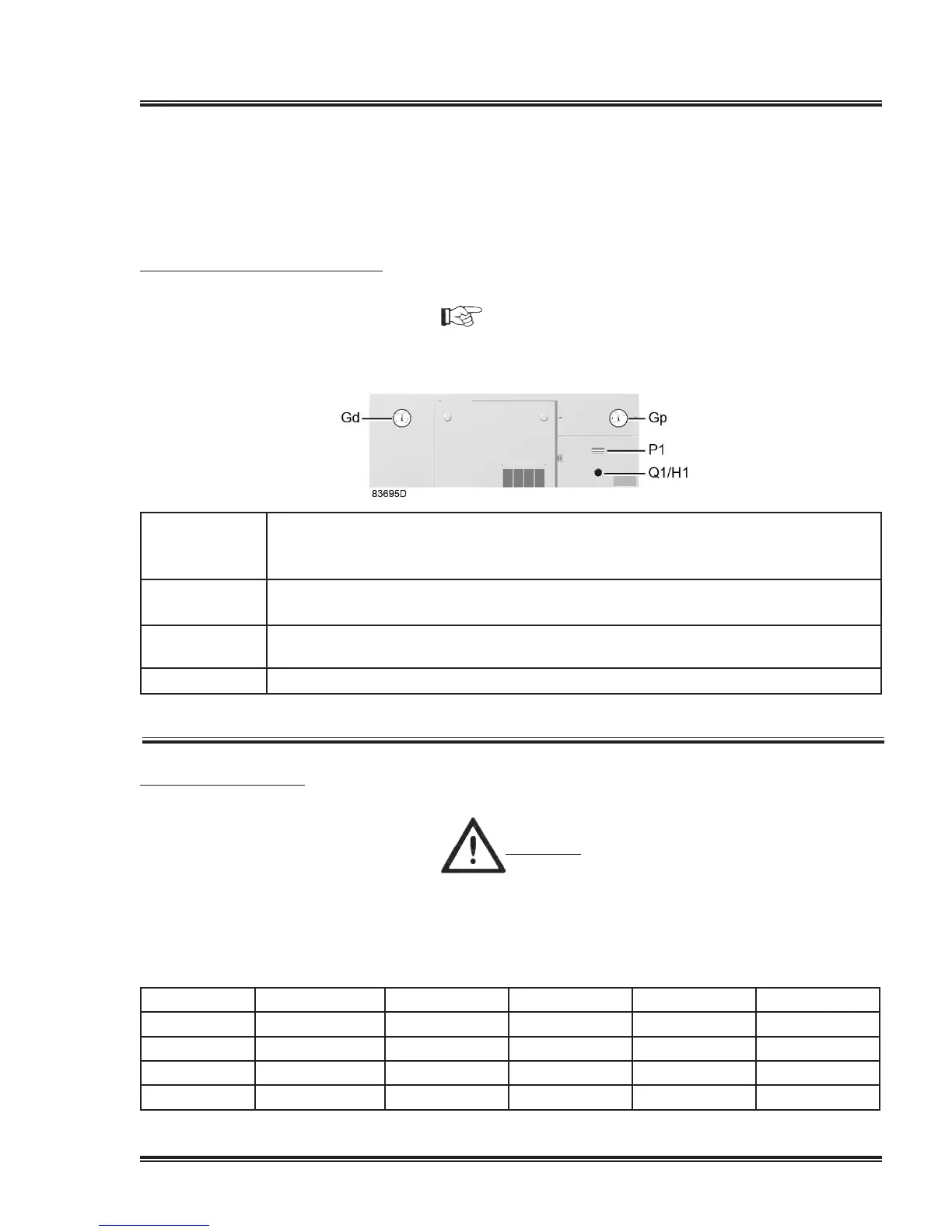

Readings on control panel
Description
NOTICE!
The readings mentioned below are valid under the reference conditions (see section
Reference conditions and limitations).
Gp Airoutletpressure
Reading:modulatesbetweenpresetstartingpressureandstoppingpressure.
SeesectionPressureswitch
Gd Dewpointtemperature
Reading:approx.2-5˚C(35-41˚F).SeesectionCompressordata.
P1 Hour meter
Reading:totalrunningtime
Q1/H1 On/off switch with lamp
Electric cable size
Attention
Warning!
Local regulations remain applicable if they are stricter than the values proposed
below.
The voltage drop must not exceed 5% of the nominal voltage. It may be necessary
to use cables of a larger size than those stated to comply with this requirement.
Cable size
QOF 2 QOF 3 QOF 5 QOF 7.5
Frequency Voltage Cable size Cable size Cable size Cable size
IEC
50Hz 200V3~ - - 6mm
2
6mm
2
50Hz 230V1~ 4mm
2
6mm
2
- -
