Quintel QS Series MultiServ User Manual

MultiServ Multiband Antennas
QS Series Antenna Installation Guide
INS-AS-004024_E Page 15
10 AISG & RF Connections for 12-port Antennas, SBT and non-
SBT versions
These diagrams refer to 12-port models of all lengths. The antennas are factory configured for AISG 2.0.
The Device type classification is Type 1.
All AISG RET Devices are communicating through the single or dual input and output DIN connectors or using
“AISG over RF” on the antenna connector plate as shown below.
Wire the AISG connections and attach the antenna jumpers according to the RFDS (Radio Frequency Design
Specification) supplied by engineering.

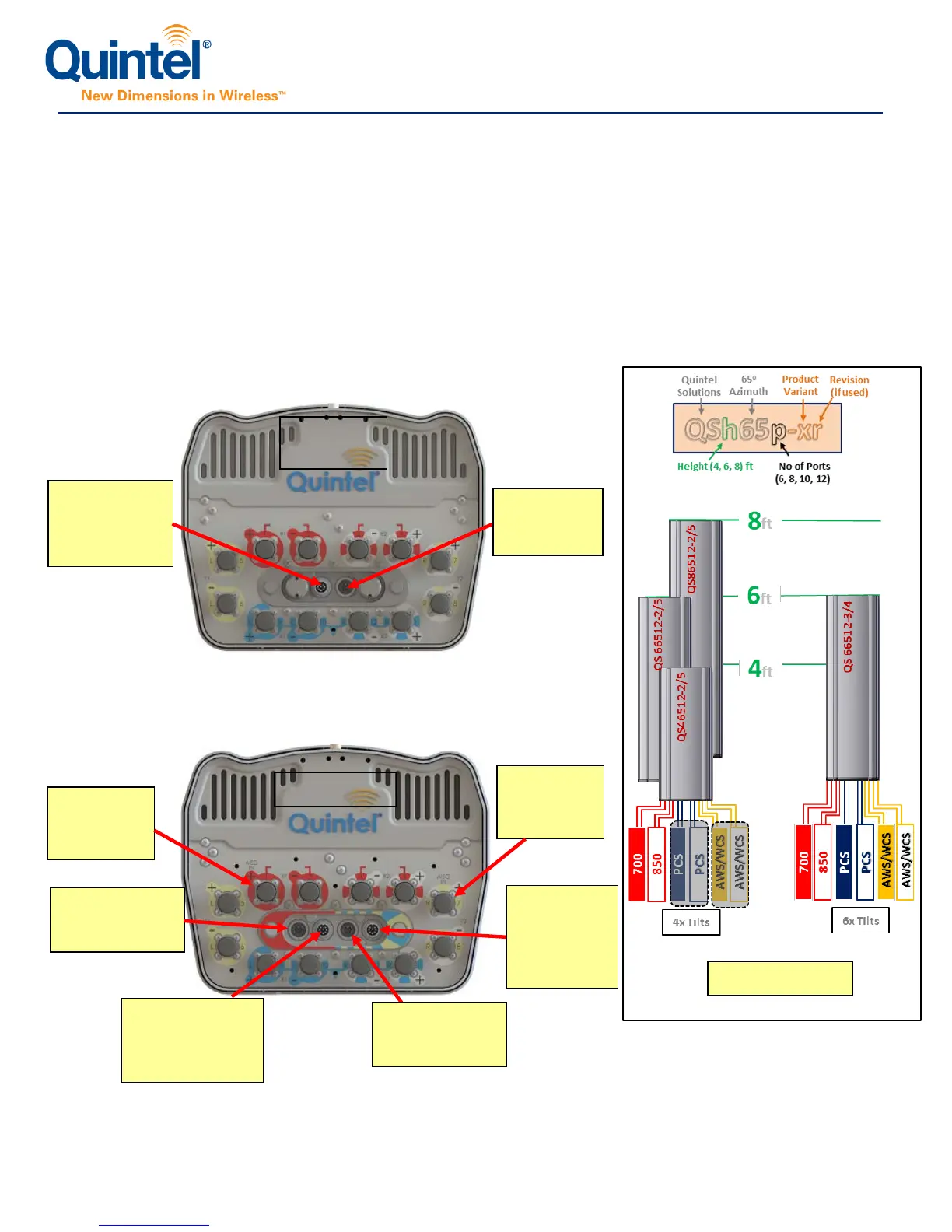

Figure 15: AISG & RF Connections for 12-port Antennas
AISG input
from home
run cable or
daisy-chain.
Non-SBT
Option
SBT Option
High-band
AISG output for
daisy-chain.
High-band AISG
input from home
run cable or
daisy-chain.
Low-band
AISG input
from home
run cable or
daisy-chain.
High-band
AISG over
RF input.
Low-band
AISG over
RF input.
AISG
Output for
daisy-chain.
Low-band AISG
output for
daisy-chain.
Example Above
