MultiServ Multiband Antennas
QS Series Antenna Installation Guide
INS-AS-004024_E Page 11
6 Optional Lightning Finial AS-001034
Does the mast require lightning protection?
The lightning finial is to be fitted where the antenna extends
above the top of the tower or building. The finial is best
installed prior to the antenna installation on the tower/pole.
Step 1: Place finial on top of washers
Step 2: Add 4 - Flat washers, 4 - Lock washers, and 4 – M8 - Hex nuts
Step 3: Torque per Table 2
*DO NOT LOOSEN OR TIGHTEN BOLTS GOING INTO ANTENNA OR WARRANTY IS VOIDED

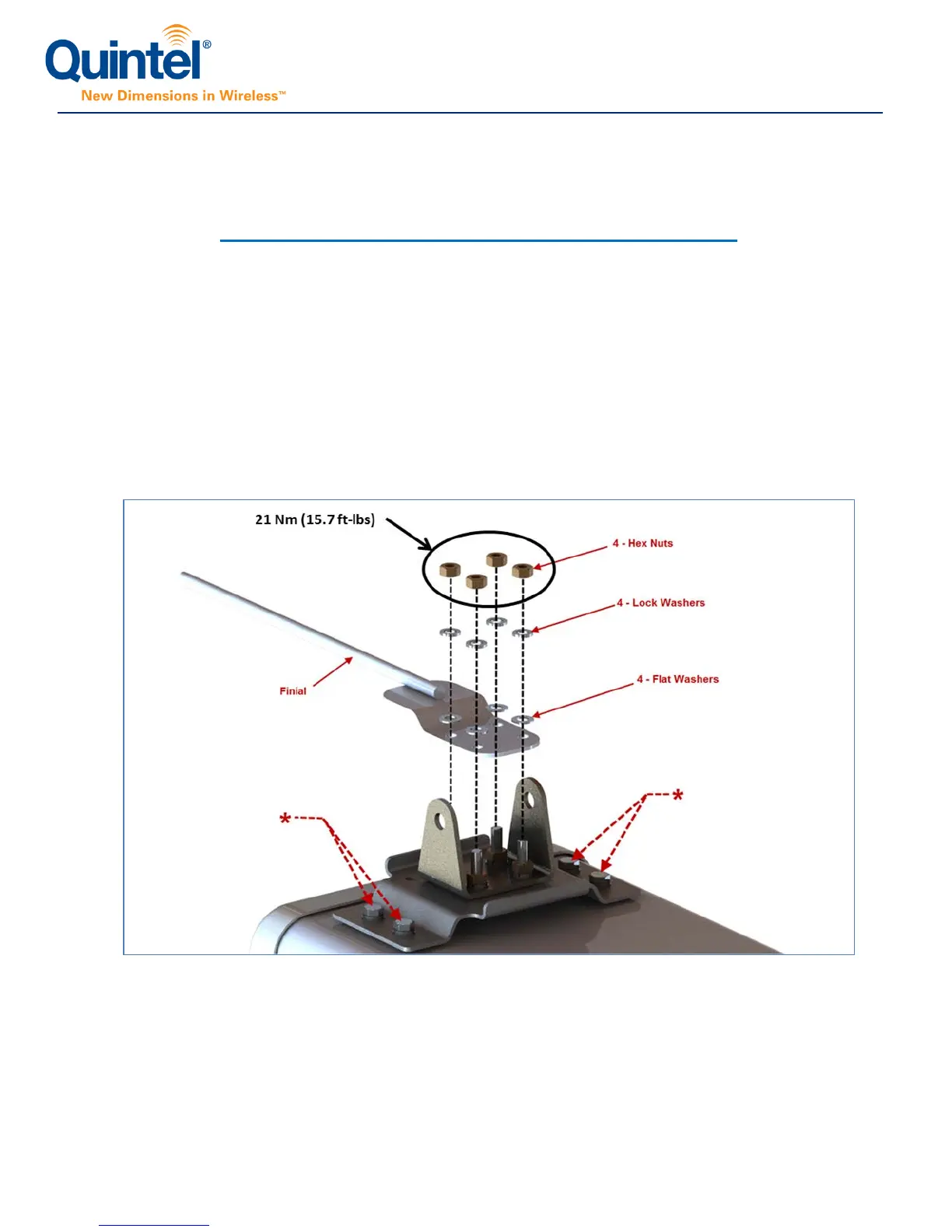

Figure 11: Lightning Finial Assembly
