Quintel QS Series MultiServ User Manual

MultiServ Multiband Antennas
QS Series Antenna Installation Guide
INS-AS-004024_E Page 4

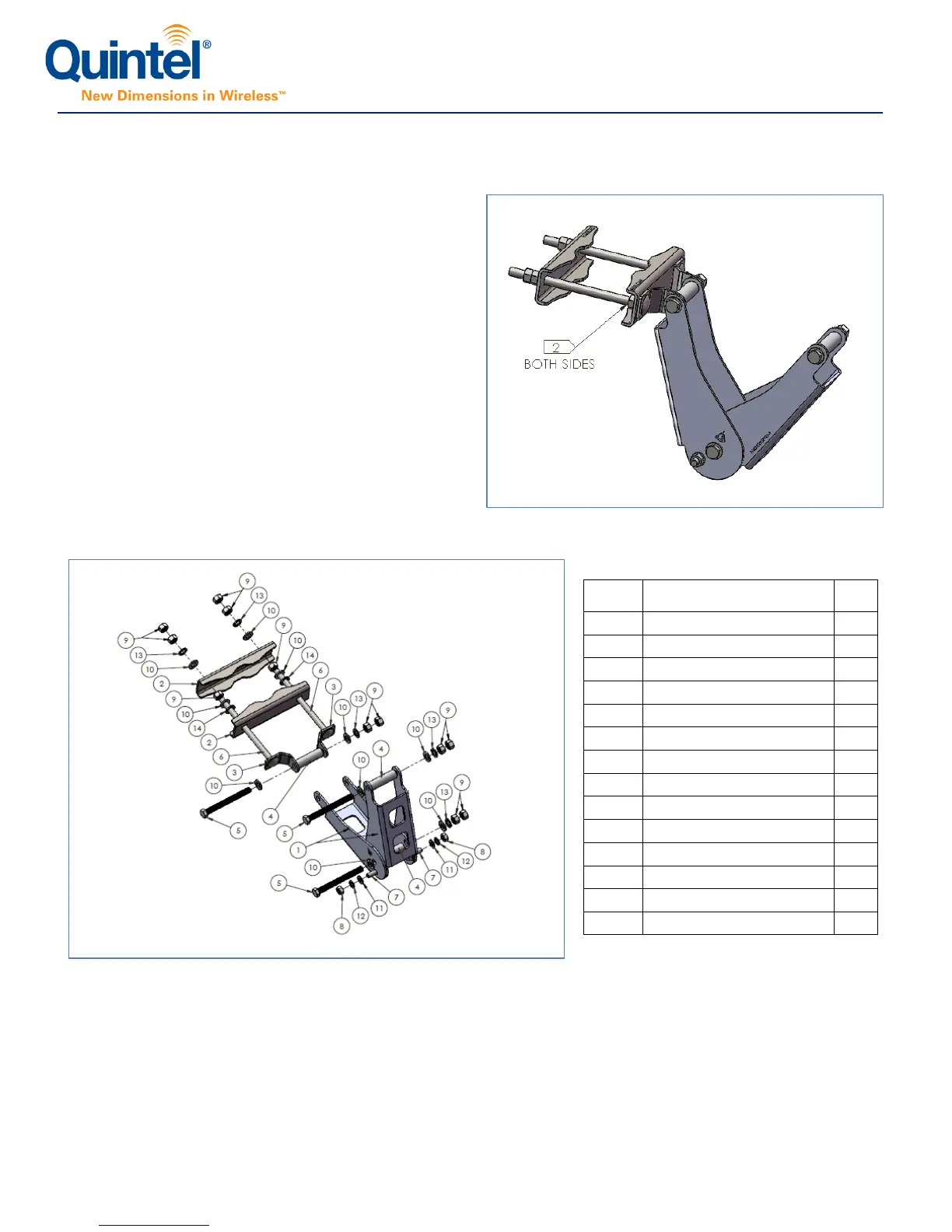

3 Upper Arm & Mount Assembly: AS-001182, supplied as part of AS-000977
1. All bolts assembled loosely
until installation except where shown.
2. Torque M12 bolts where shown to 65 Ft. Lbs (88 N-m).
3. NOTE:
• The addition or replacement of any
items supplied in this kit may compromise
structural integrity.
Figure 1: Upper Arm
Figure 2: Upper Arm Exploded View
ITEM
NO.
PART NUMBER QTY.
1 MEC-008937 2
2 MEC-008938 2
3 MEC-008939 2
4 MEC-008956 3
5 Bolt-M12x1.75x120 ISO 4014 3
6 MEC-010791 2
7 MEC-010792 2
8 Nut-Hex M10x1.5 B18.2.4.1M 2
9 NUT-Hex M12x1.75 12
10 Washer DIN 125 - A 13 10
11 Washer DIN 125 - B 10.5 2
12 Washer-Split Lk M10 2
13 Washer-Split Lk M12 5
14 Washer-Split Lk M14 2
