Quintel QS Series MultiServ User Manual

MultiServ Multiband Antennas
QS Series Antenna Installation Guide
INS-AS-004024_E Page 5

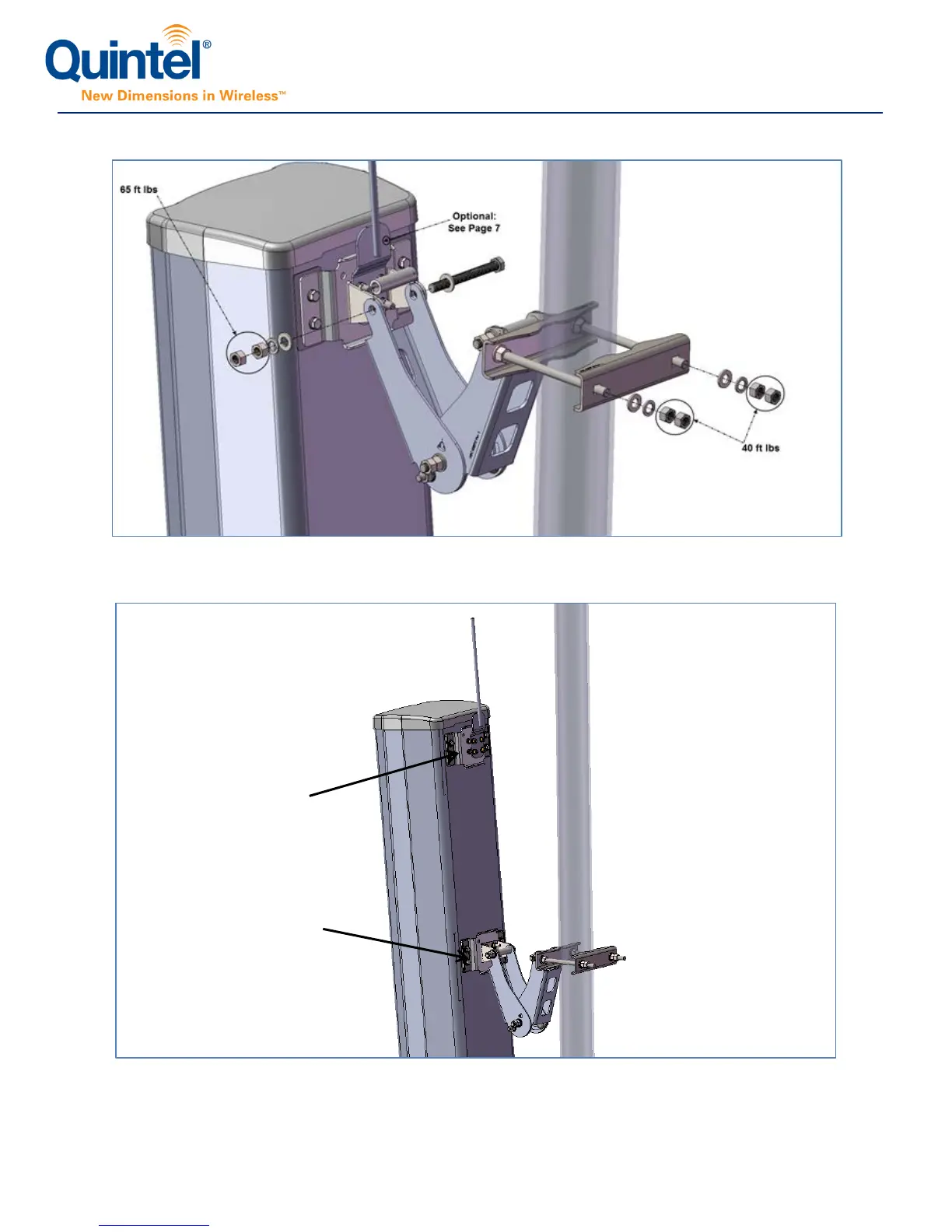

Upper arm mount position for 4FT & 6FT antenna models.
Figure 3: Pole Mount of Upper Arm & Mount Assembly (AS-001182)
Upper arm mount position for 8FT antenna models.
Figure 4: Upper Arm Mount Position for 8ft Antenna Models (AS-001182)
Figure 4: Upper Arm Mount Position For 8ft Antenna Models
NOTE:
• Use of a digital inclinometer is recommended for antenna positioning accuracy.
• See above illustrations and Table 2 on page 4 for torque settings.
(88 Nm)
(54 Nm)
Do not use the upper arm
mount on this mount bracket
Upper arm mount position
Do not use the upper arm
mount on this mount bracket
Upper arm mount position
Do not use the upper arm
mount on this mount bracket
Upper arm mount position
