Quintel QS Series MultiServ User Manual

MultiServ Multiband Antennas
QS Series Antenna Installation Guide
INS-AS-004024_E Page 7

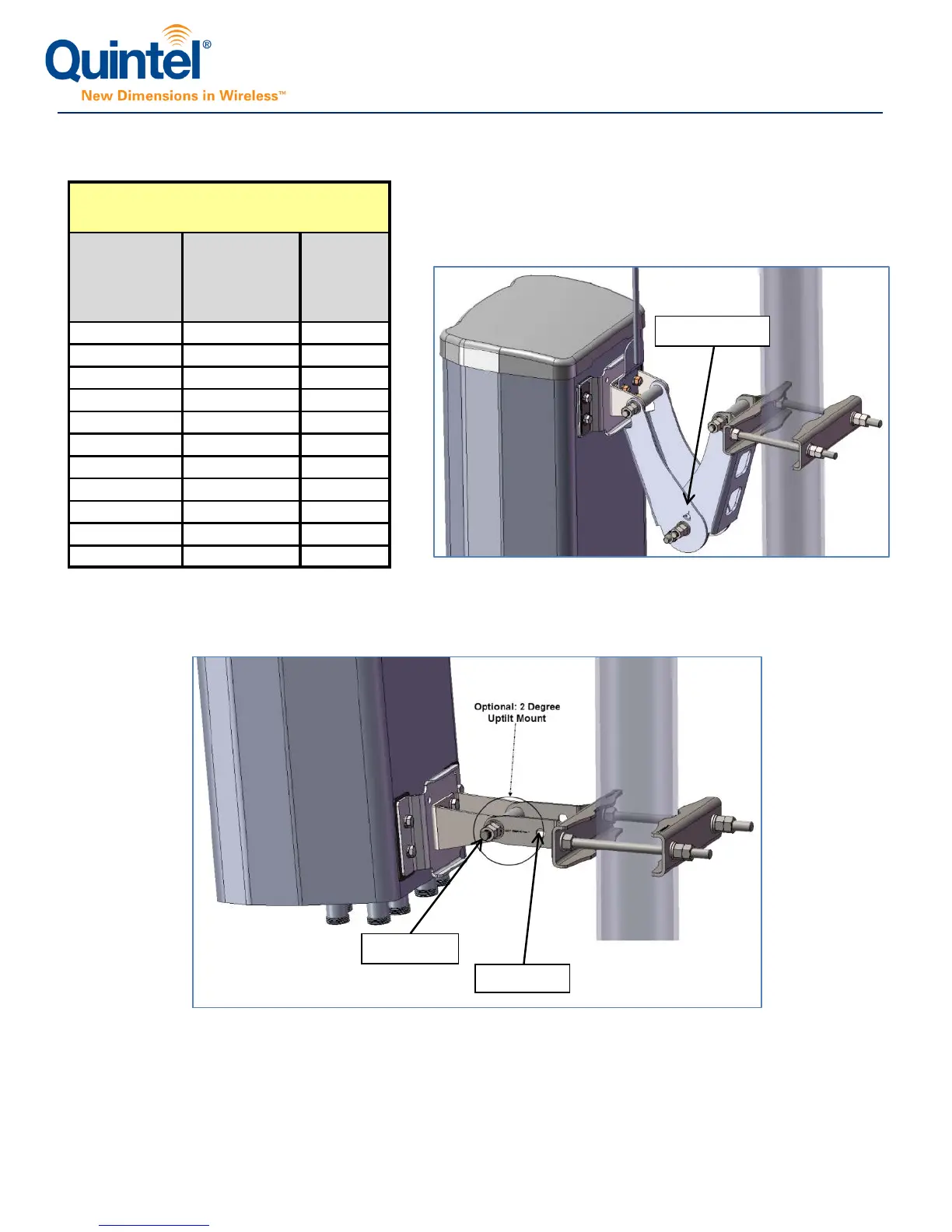

4.1.2 Tilt Angle Indicator Guide for 6&8FT 65Deg 6/8/10/12P Products
Angle
(Degrees)
Lower arm
Position 1
Angle (Degrees)
Lower arm
Position 2
Indicator
0
-2 0.0
1 -1
1.5
2 0 3.0
3 1
5.0
4 2
6.5
5
3 8.3
6 4
10.0
7
5 12.0
8 6
14.0
9 7 16.0
10
8 18.5
Tilt Indicator Table for 6&8FT 65Deg
6/8/10/12P
Figure 6: 2 Degree Up Tilt Mount
Position 2
Position 1
Tilt Indicator
Figure 5: Tilt Indicator
