Quintel QS Series MultiServ User Manual

MultiServ Multiband Antennas
QS Series Antenna Installation Guide
INS-AS-004024_E Page 8

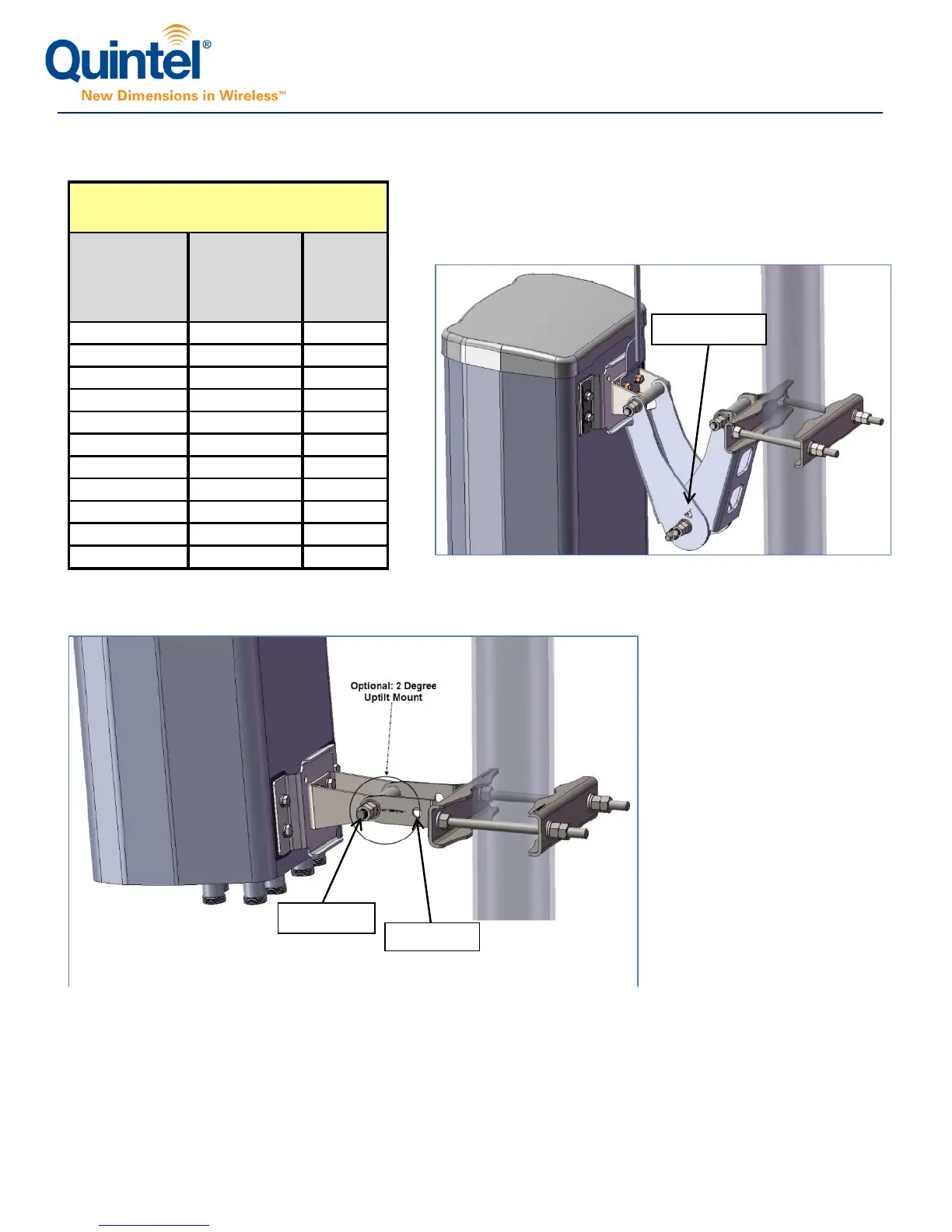

4.1.3 Tilt Angle Indicator Guide for 6&8FT 45Deg 6/8P Products
Angle (Degrees)
Lower arm
Position 1
Angle
(Degrees)
Lower arm
Position 2
Indicator
0 -2 0.0
1 -1 1.6
2
0
3.2
3
1 4.9
4 2
6.5
5
3 8.2
6 4 10.0
7 5 11.8
8 6 13.8
9 7 15.8
10 8 18.0
Tilt Indicator Table for 6&8FT 45Deg 6/8P
Figure 6: 2 Degree Up Tilt Mount
Tilt Indicator
Figure 5: Tilt Indicator
Position 1
Position 2
